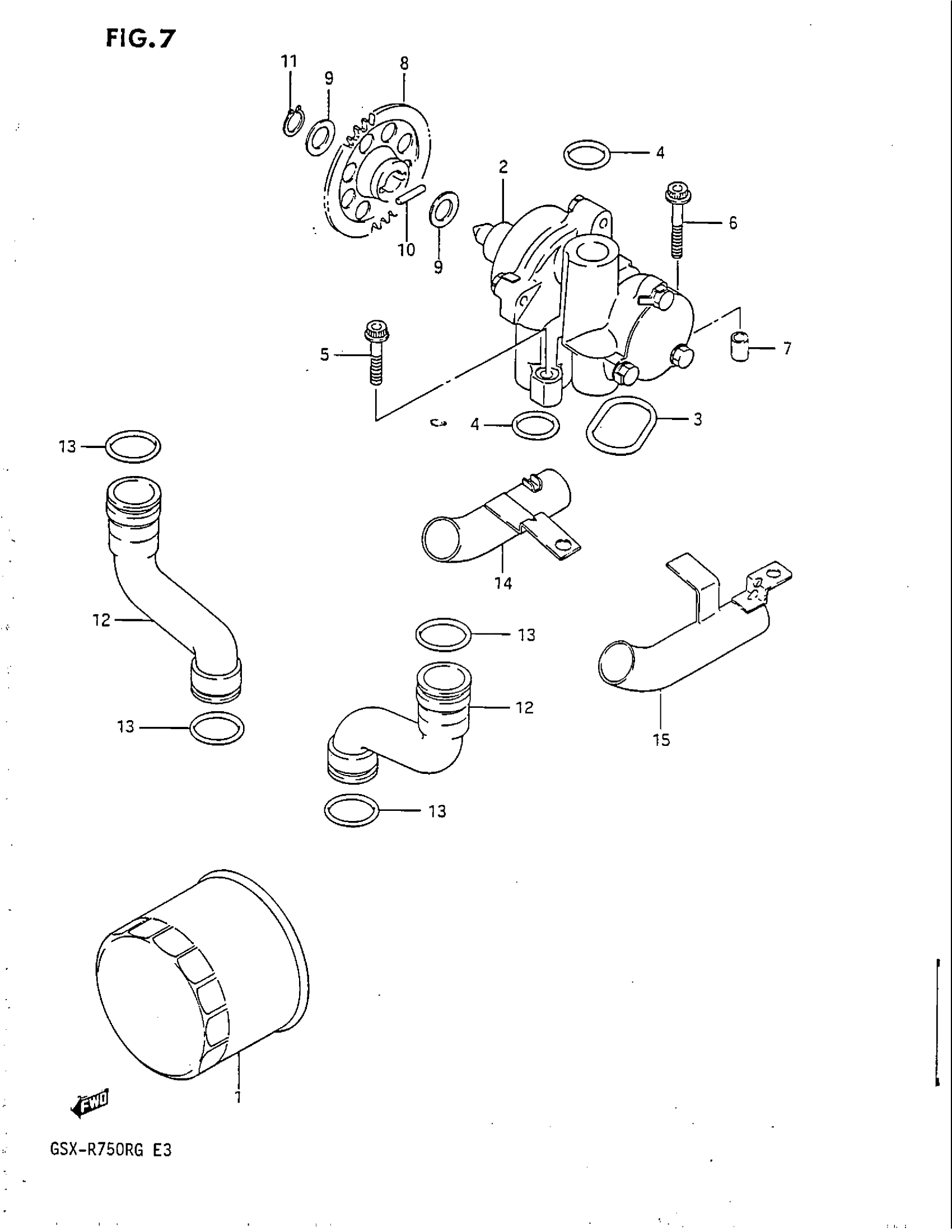

Suzuki GSX-R750R (1986) OIL PUMP Diagram

#

Description
Price

1

FILTER, ENGINE OIL

16510-05A00

$25.40

2

PUMP ASSY, ENGINE OIL This part replaces 16400-27A00.

16400-06B01

Unavailable

3

O RING, OIL PUMP

16491-27A01

$10.51

4

O RING

09280-18009

$5.26

5

BOLT This part replaces 07120-06308.

07120-06307

$4.70

6

BOLT This part replaces 07120-06358.

07120-0635B

$3.10

7

PIN

04211-09129

$1.64

8

NO DESCRIPTION AVAILABLE This part replaces 16332-27A01.

16332-27A02

Unavailable

9

WASHER

08221-12205

$2.50

10

PIN

09261-05006

$1.46

11

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.77

12

PIPE, OUTLET This part replaces 16480-27A03.

16481-17D00

$57.92

13

O RING (D:3.7,ID:21.7) This part replaces 09280-22015.

09280-22016

$5.04

14

PIPE, OIL UNDER, LH This part replaces 16530-27A00.

16530-27A02

Unavailable

15

PIPE, OIL UNDER, RH This part replaces 16540-27A00.

16540-27A02

Unavailable
