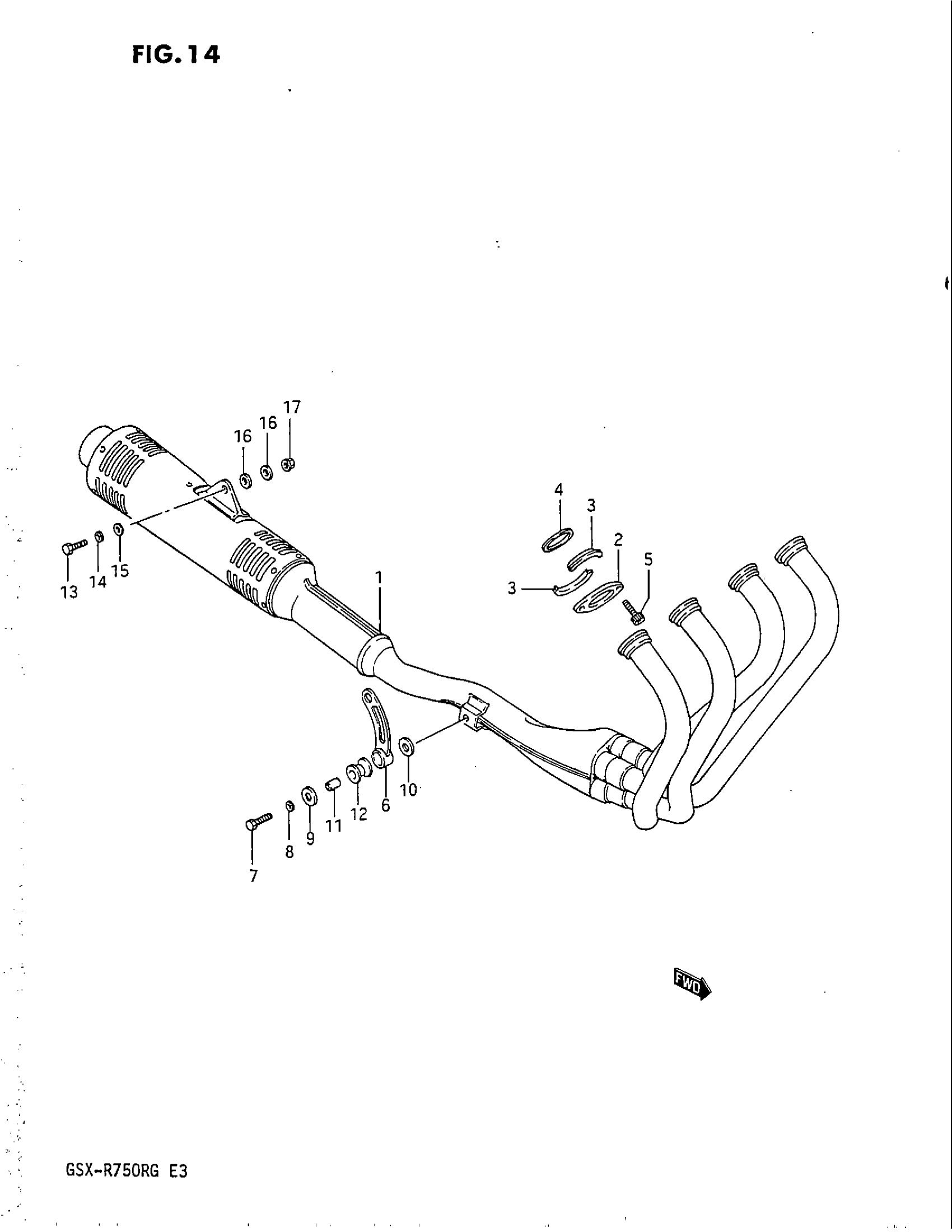

Suzuki GSX-R750R (1986) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 14305-28A10-H01.

14305-27B01-H01

Unavailable

2

CLAMP, EXHAUST PIPE

14182-27A00

Unavailable

3

PLATE, EXHAUST PIPE

14155-27A00

$3.56

4

.GASKET,EXHAUST This part replaces 14181-05020.

14181-18C00

$7.22

5

BOLT This part replaces 07110-08255.

07130-0825B

$3.37

6

DAMPER, MUFFLER SUPPORT

14770-27A00

Unavailable

7

BOLT,8X35 This part replaces 09100-08224.

09100-08224-XC0

$4.97

8

WASHER LOCK This part replaces 09162-08003.

09162-08007

$1.49

9

WASHER (8.5X28X3.2) This part replaces 09160-08069.

09160-08137

$3.03

10

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

11

SPACER This part replaces 09180-08102.

09180-08194

$3.05

12

CUSHION, EXHAUST SUPPORT This part replaces 09320-12026.

09320-12043

$7.98

13

NO DESCRIPTION AVAILABLE This part replaces 07110-10405.

09106-10041

Unavailable

14

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

15

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

16

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

17

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39
