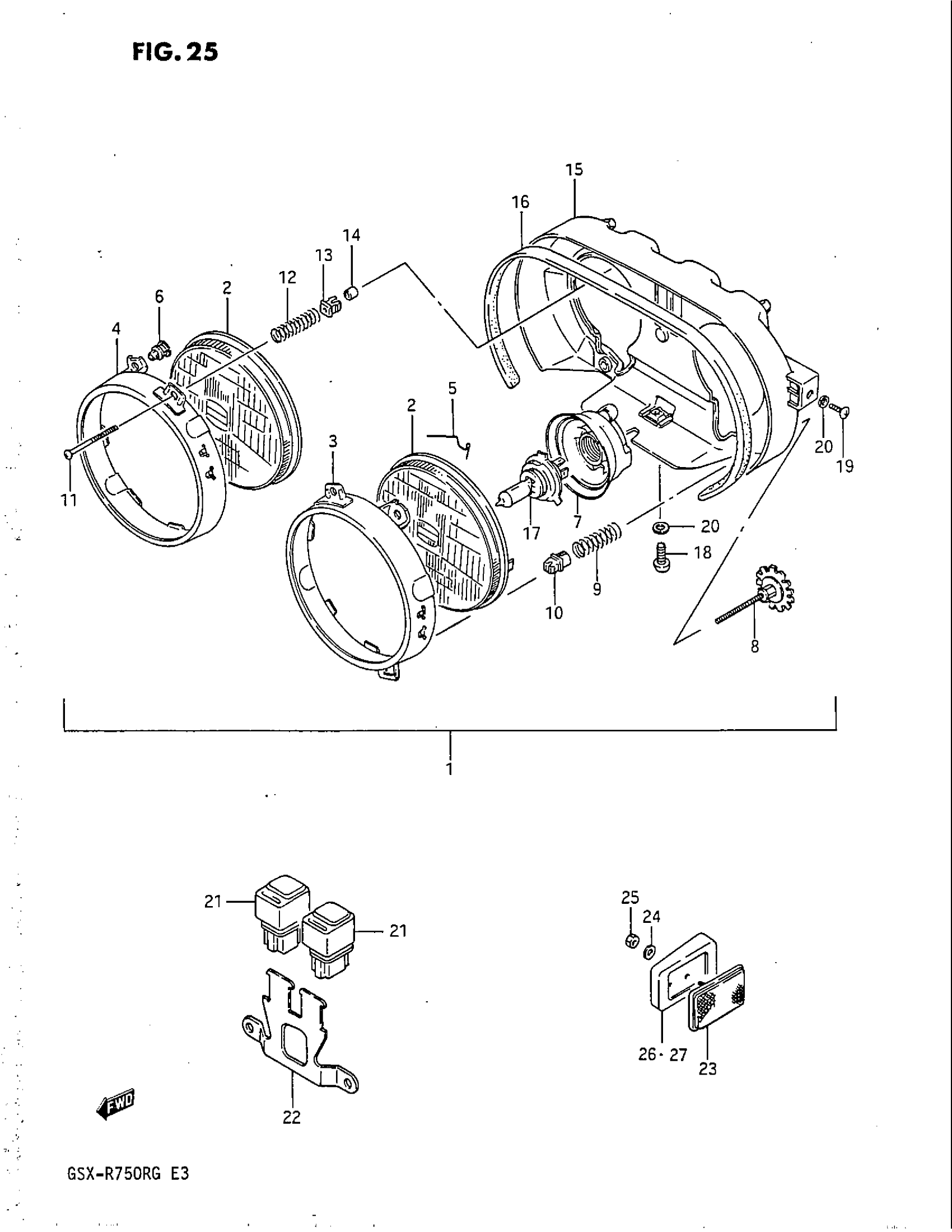

Suzuki GSX-R750R (1986) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 16

35100-06B30-999

Unavailable

2

UNIT

35121-06B30

Unavailable

3

RING, RETAINING LH

35126-27A00

Unavailable

4

RING, RETAINING RH

35127-27A00

Unavailable

5

SPRING. SUPPORT

35128-46720

Unavailable

6

BEARING, SPHERICAL

35162-04A00

$1.85

7

COVER, SOCKET

35173-20A01

$18.02

8

SCREW,ADJUSTER This part replaces 35153-27A00.

35153-04A00

Unavailable

9

SPRING

35154-04A00

Unavailable

10

NUT

35152-27A00

Unavailable

11

SCREW This part replaces 35151-04A00.

35151-45900

$3.65

12

SPRING, ADJUSTING

35154-04A00

Unavailable

13

NUT

35155-04A00

Unavailable

14

CAP, SCREW

35158-43400

$1.92

15

HOUSING This part replaces 35240-27A02.

35240-06B00

Unavailable

16

GASKET

35242-27A00

Unavailable

17

BULB (12V,60/55W)

09471-12060

$25.15

18

SCREW This part replaces 02112-06166.

02112-0616A

$1.49

19

SCREW This part replaces 02112-06106.

02112-0610B

$1.84

20

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

21

RELAY ASSY, SIDE STAND This part replaces 38640-06B00.

38740-24X50

$45.20

22

BRACKET, RELAY

38641-06B00

Unavailable

23

REFLEX REFLECTOR, FRONT This part replaces 35950-02100.

35950-49330

Unavailable

24

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

25

NUT This part replaces 08310-12055.

08310-0005A

$1.84

26

SPACER, RH

35954-27A00

Unavailable

27

SPACER, LH

35955-27A00

Unavailable
