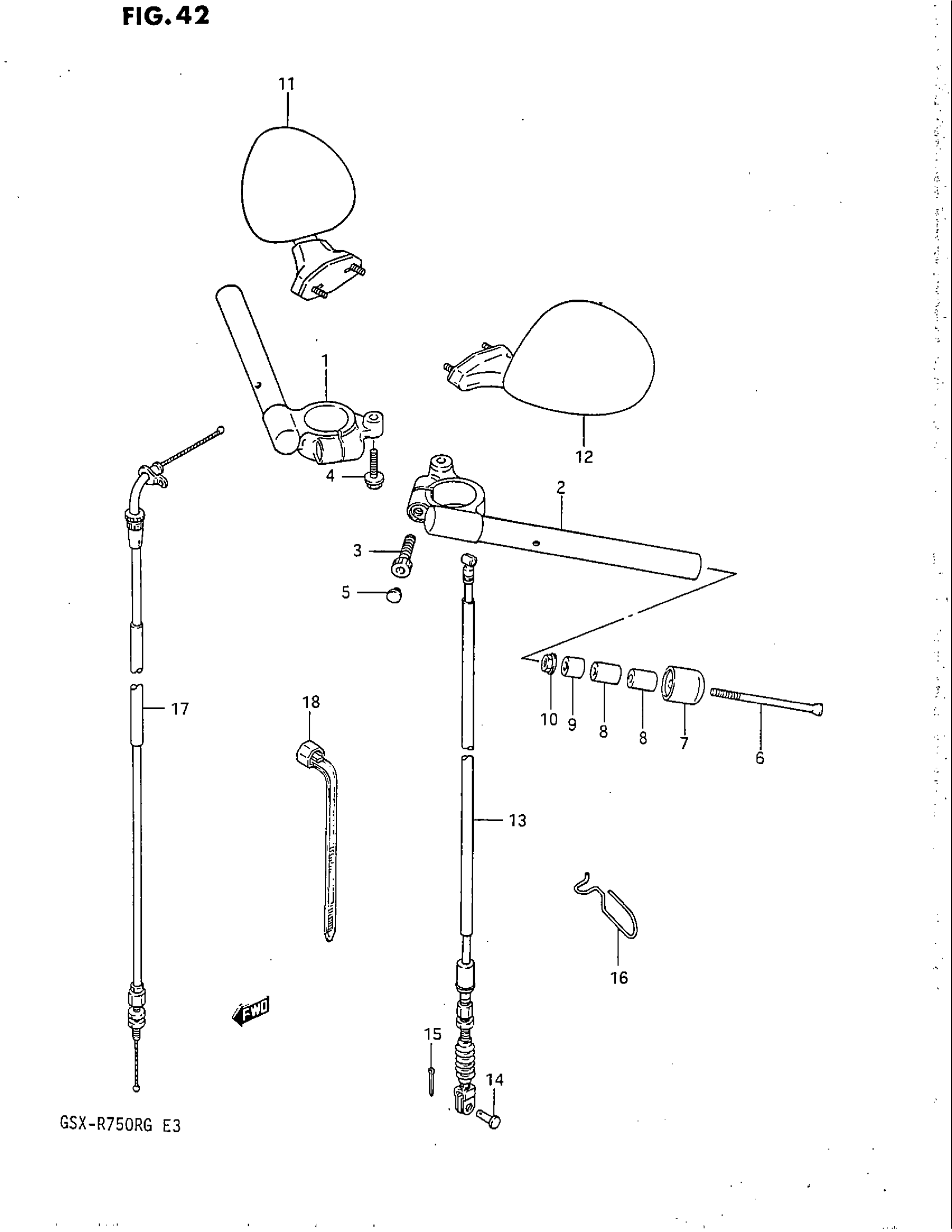

Suzuki GSX-R750R (1986) HANDLEBAR Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 56111-27A40.

56111-27A50

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 56151-27A40.

56151-27A50

Unavailable

3

BOLT This part replaces 07110-08355.

07130-0835B

$4.60

4

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

5

CAP This part replaces 09250-06008.

09250-06016

$1.96

6

SCREW

09127-06014

Unavailable

7

CAP This part replaces 56274-27A00.

56274-17C00

Unavailable

8

BALANCER, HANDLEBAR

56271-43500

Unavailable

9

EXPANDER, BALANCER

56272-44500

$4.42

10

NUT

09159-06024

$2.11

11

MIRROR, REAR VIEW RH This part replaces 56500-27A00.

56500-27A30

Unavailable

12

MIRROR, REAR VIEW LH This part replaces 56600-27A00.

56600-27A30

Unavailable

13

CABLE ASSY, CLUTCH

58200-27A00

Unavailable

14

PIN

09200-06011

Unavailable

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

16

GUIDE, CLUTCH CABLE

58626-27A00

Unavailable

17

CABLE ASSY, THROTTLE NO.1

58300-06B00

Unavailable

18

CLAMP, CABLE

09407-18402

$2.19
