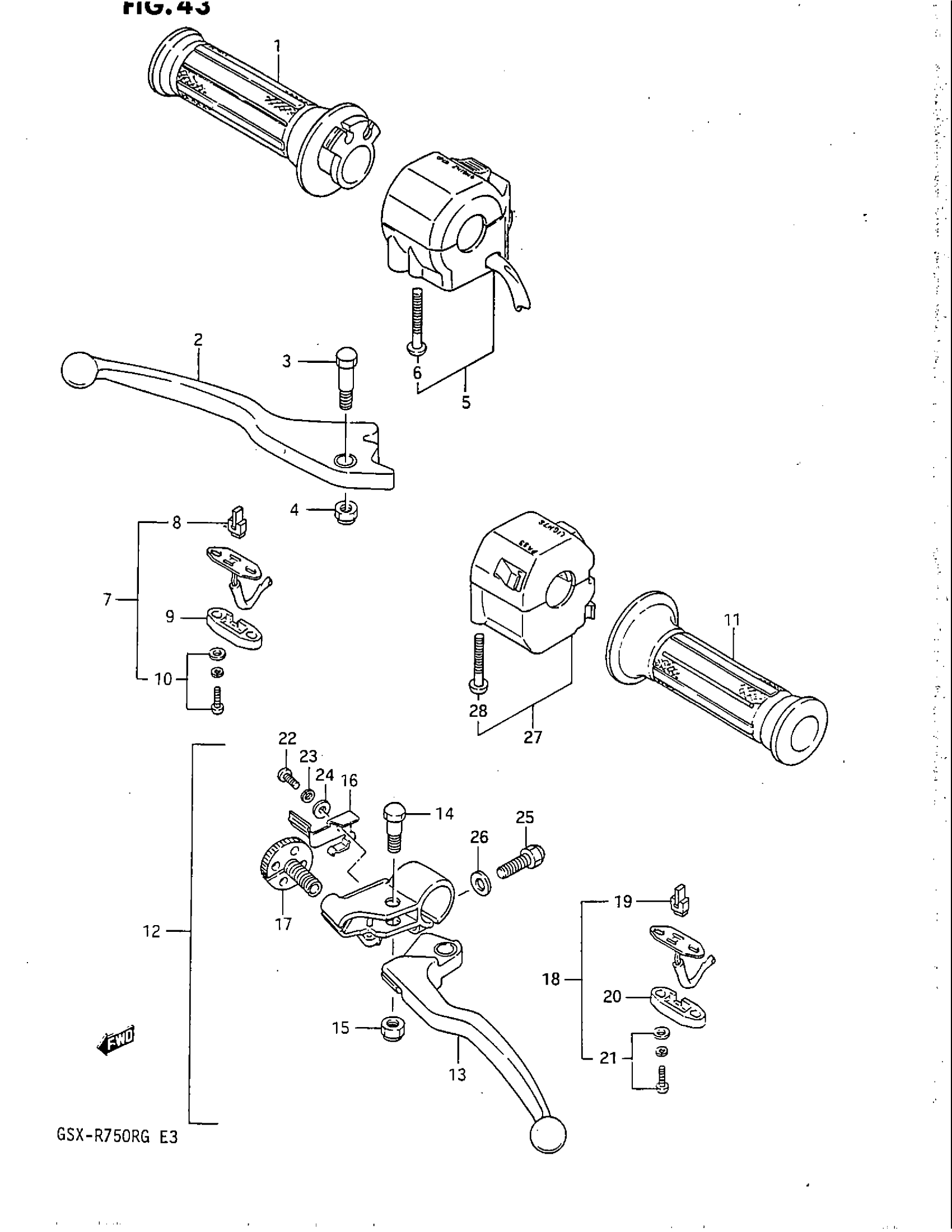

Suzuki GSX-R750R (1986) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-49500.

57110-49501

$34.00

2

LEVER, BRAKE This part replaces 57420-27A30.

57420-38B00

Unavailable

3

BOLT

57431-05A00

$7.23

4

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

5

NO DESCRIPTION AVAILABLE | Includes Item(s) 6 This part replaces 37200-06B20.

37200-06B21

Unavailable

6

.SCREW This part replaces 02112-05455.

02112-0545B

$2.26

7

SWITCH ASSY, STOP | Includes Item(s) 8 - 10

57460-33700

$43.37

8

HOLDER

57465-18601

$4.34

9

COVER

57481-33010

$5.84

10

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

11

GRIP, LH

57211-49500

$13.95

12

LEVER ASSY, CLUTCH | Includes Item(s) 13 - 26 This part replaces 57500-27A40.

57500-18D10

Unavailable

13

LEVER This part replaces 57620-27A30.

57620-27A31

$22.77

14

BOLT

57431-49110

$6.31

15

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

16

ADJUSTER, CABLE This part replaces 57644-20A01.

57644-20A02

Unavailable

17

.NUT, CABLE ADJUSTER This part replaces 57641-20A02.

57641-33E21

$35.94

18

SWITCH ASSY, CLUTCH This part replaces 57560-08A00.

57560-18D10

Unavailable

19

HOLDER

57465-18601

$4.34

20

COVER

57481-33010

$5.84

21

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

22

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

23

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

24

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

25

BOLT

01204-06204

$2.72

26

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

27

SWITCH ASSY,HAN | Includes Item(s) 28 This part replaces 37400-06B10.

37400-06B20

$161.35

28

SCREW This part replaces 02112-05405.

02112-0540B

$2.70
