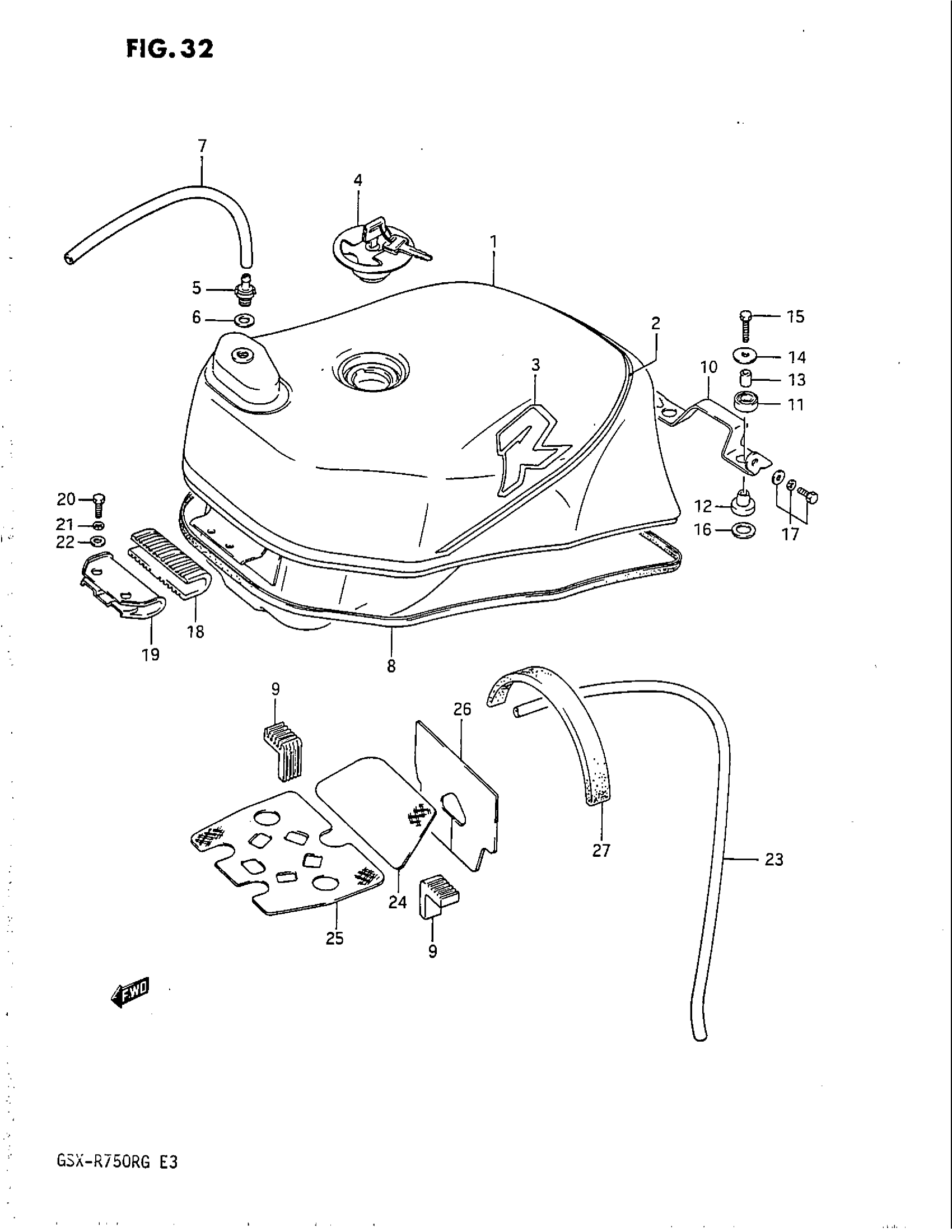

Suzuki GSX-R750R (1986) FUEL TANK Diagram

NO DESCRIPTION AVAILABLE | OTHER THAN CALIFORNIA This part replaces 44100-28A20-8JZ.

44100-28A20-A7N

Unavailable

(CA)TANK ASSY, FUEL | CALIFORNIA ONLY; Includes Item(s) 2 - 3

44100-28A30-8JZ

Unavailable

TAPE SET, FUEL TANK (RED)

68110-28A10-29W

Unavailable

EMBLEM (BLUE)

68111-27A10-765

Unavailable

CAP SET, FUEL T This part replaces 44200-20A00-KEY.

44200-20841

Unavailable

PLUG, BREATHER | OTHER THAN CALIFORNIA This part replaces 44240-40A00.

44240-06B10

$38.33

VALVE, FUEL TANK BREATHER | CALIFORNIA ONLY This part replaces 44240-28A00.

44240-28A01

Unavailable

GASKET | OTHER THAN CALIFORNIA

09168-12012

$1.83

(CA)GASKET | CALIFORNIA ONLY

09168-27001

Unavailable

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

CUSHION, FUEL TANK SIDE

44545-27A10

Unavailable

BRACKET, REAR

45211-27A00

Unavailable

CUSHION, REAR LOWER

09320-14017

$2.35

CUSHION, REAR UPPER

09320-10038

$2.61

SPACER This part replaces 09180-06072.

09180-06271

$2.35

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

BOLT This part replaces 01107-06356.

01500-0635A

$2.19

WASHER This part replaces 09160-12004.

09160-12088

$2.00

BOLT, REAR UPPER

09138-06038

Unavailable

CUSHION, FRONT

44511-27A10

Unavailable

BRACKET, FUEL TANK FRONT

44521-27A00

Unavailable

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

HEAT SHEILD,FRM This part replaces 44191-27A00.

47166-03D00

$23.76

NO DESCRIPTION AVAILABLE This part replaces 44192-27A00.

44192-27A01

Unavailable

HEAT SHIELD, FUEL TANK LOWER

44194-06B00

Unavailable

HEAT SHIELD, AIR CLEANER

44193-27A02

Unavailable
