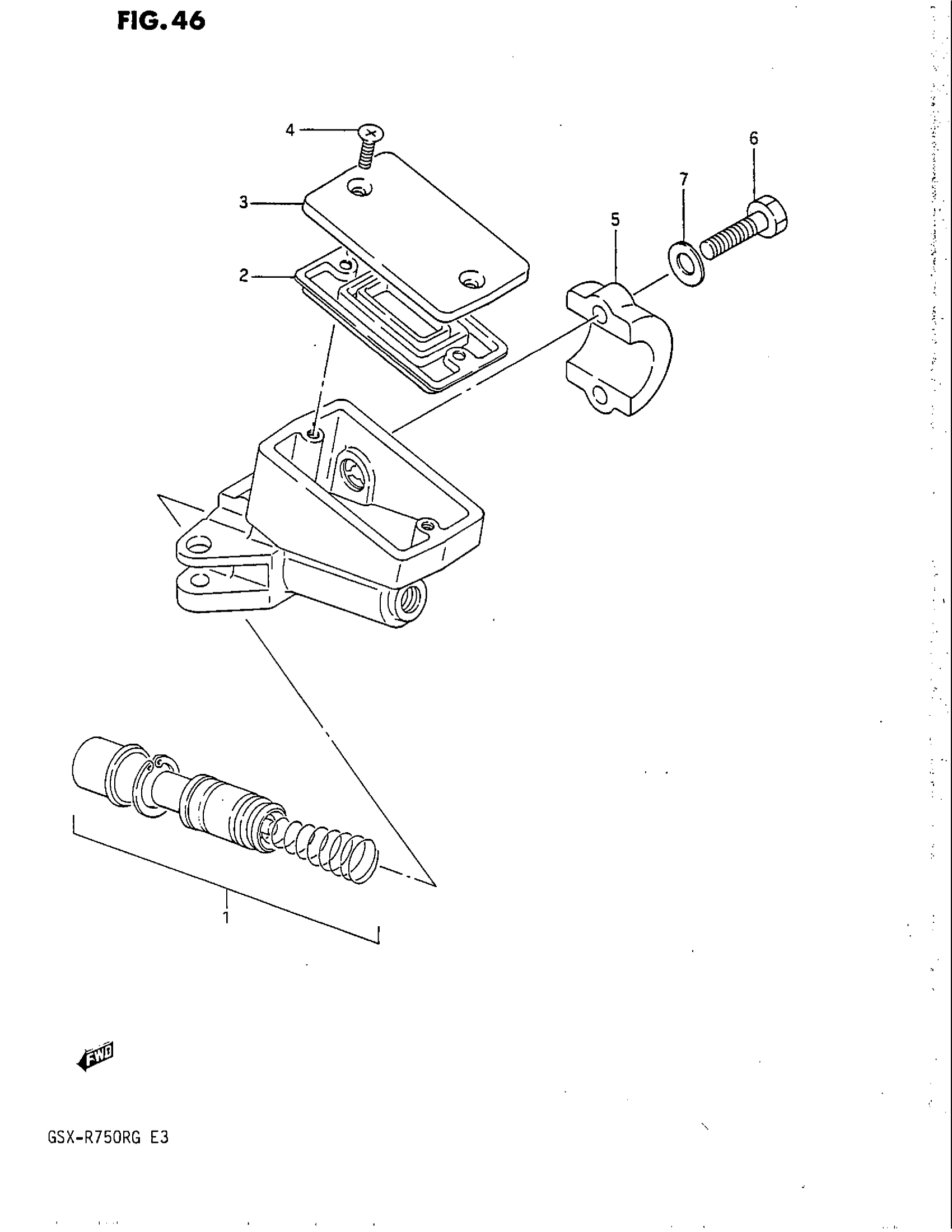

Suzuki GSX-R750R (1986) FRONT MASTER CYLINDER Diagram

#

Description

Price

MASTER CYLINDER ASSY | Includes Item(s) 1 - 7

59600-08A10

Unavailable

1

PISTON & CUP SET

59600-45860

$39.48

2

DIAPHRAGM

59667-49460

$9.78

3

CAP This part replaces 59669-04A10.

59669-41C00

$32.56

4

SCREW

69689-49300

$1.91

5

HOLDER This part replaces 59671-16700.

59671-19B00

$20.07

6

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

7

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
