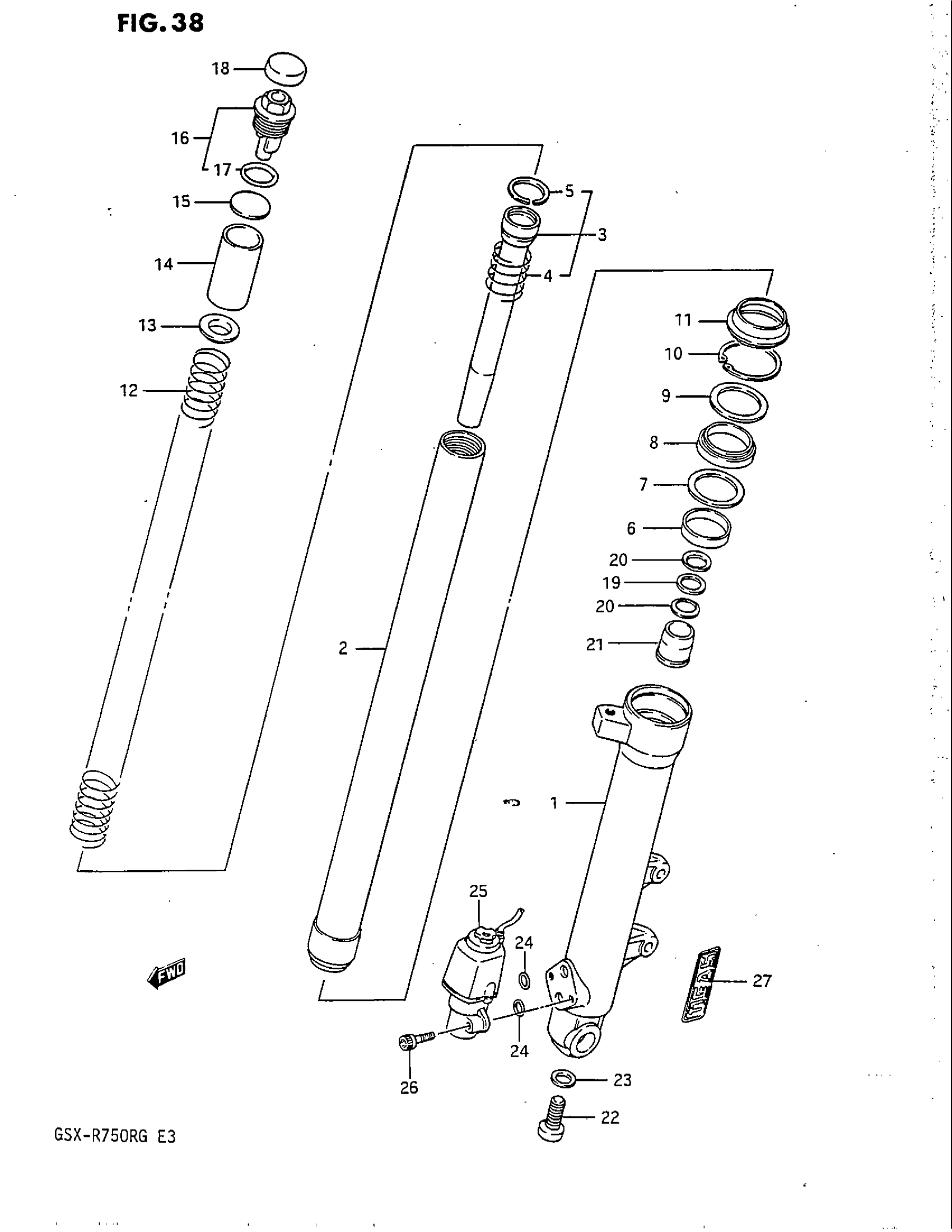

Suzuki GSX-R750R (1986) FRONT LEFT DAMPER Diagram

#

Description
Price

DAMPER ASSY, LH | Includes Item(s) 1 - 27

51104-27A60

Unavailable

1

TUBE, OUTER LH

51140-06B00

Unavailable

2

TUBE, INNER

51110-27A40

Unavailable

3

CYLINDER

51146-06B00

Unavailable

4

SPRING, REBOUND

51177-06B00

Unavailable

5

RING, PISTON

51196-24A00

Unavailable

6

METAL, SLIDE This part replaces 51167-05A00.

51167-26E10

$24.52

7

WASHER

51158-05A00

$5.83

8

SEAL, OIL This part replaces 51153-05A00.

51153-27C20

$13.63

9

WASHER

51158-27A00

Unavailable

10

SNAP RING

51156-49440

$5.05

11

.SEAL, DUST This part replaces 51173-05A00.

51173-14F00

$23.07

12

SPRING

51171-27A40

Unavailable

13

GUIDE,SPRING

51172-27A00

Unavailable

14

SPACER

51176-27A00

Unavailable

15

WASHER

51192-27A00

$6.47

16

CAP

51351-27A40

Unavailable

17

O RING

51117-24A00

Unavailable

18

CAP

51189-27A40

Unavailable

19

WASHER

51123-27A00

Unavailable

20

SPRING

51125-27A00

Unavailable

21

PIECE, OIL LOCK

51195-27A00

Unavailable

22

BOLT, CYLINDER

51147-14200

Unavailable

23

GASKET

51148-14200

$2.47

24

O RING (D:2.5,ID:13.8) This part replaces 51799-06B00.

09280-14011

$4.77

25

P.D.F ASSY

51770-06B00

Unavailable

26

BOLT

51769-27A40

Unavailable

27

EMBLEM, NEAS

68681-06B00

Unavailable
