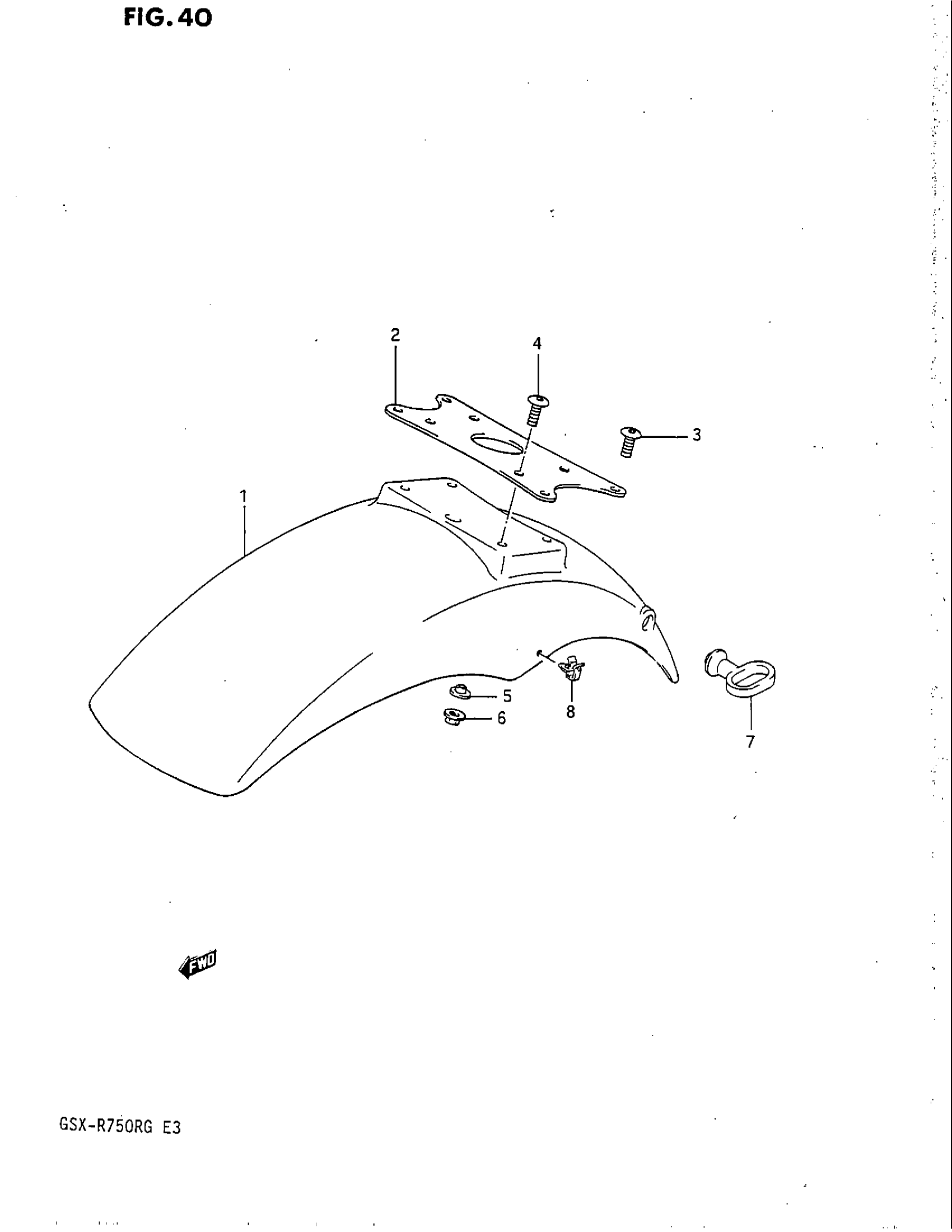

Suzuki GSX-R750R (1986) FRONT FENDER Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE This part replaces 53111-27A30-14L.

53111-27A50-13L

Unavailable

2

BRACE, FRONT FENDER

53114-06B00

Unavailable

3

SCREW

09139-08007

$3.70

4

SCREW, FENDER & BRACE

09139-05025

$2.05

5

WASHER

09169-05008

$2.47

6

NUT This part replaces 08319-31056.

08319-3105B

$3.55

7

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68

8

CLAMP

09403-05305

Unavailable
