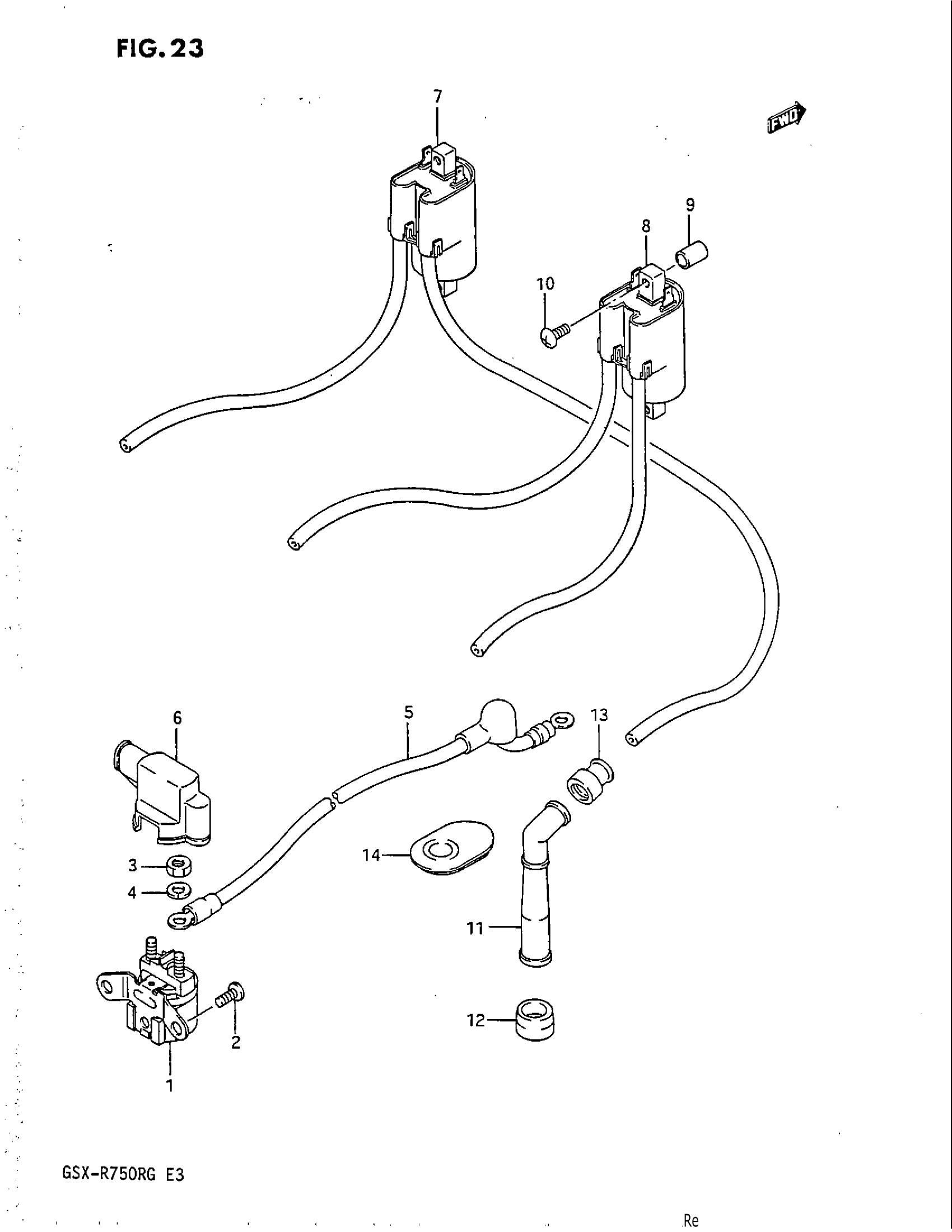

Suzuki GSX-R750R (1986) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$97.31

2

SCREW This part replaces 02112-06106.

02112-0610B

$1.84

3

NUT This part replaces 08310-11066.

08310-0006A

$1.84

4

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

5

LEAD WIRE, STARTING MOTOR This part replaces 33850-27A00.

33850-06B00

Unavailable

6

CAP, TERMINAL This part replaces 31861-44500.

31861-46D00

$7.87

7

COIL ASSY, IGNI This part replaces 33410-27A00.

33410-31311

$161.13

8

COIL ASSY, IGNI This part replaces 33420-27A00.

33410-31311

$161.13

9

SPACER (6.5X10.5X15) This part replaces 09180-06061.

09180-06079

$2.42

10

SCREW This part replaces 02112-06356.

02112-0635B

$2.19

11

CAP ASSY, SPARK PLUG This part replaces 33510-27A11.

33510-48B10

$31.77

12

SEAL, SPARK PLUG CAP This part replaces 33541-27A22.

33541-23E01

$6.34

13

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

14

COVER, SPARK PLUG CAP This part replaces 33543-27A21.

33543-48B00

$7.25
