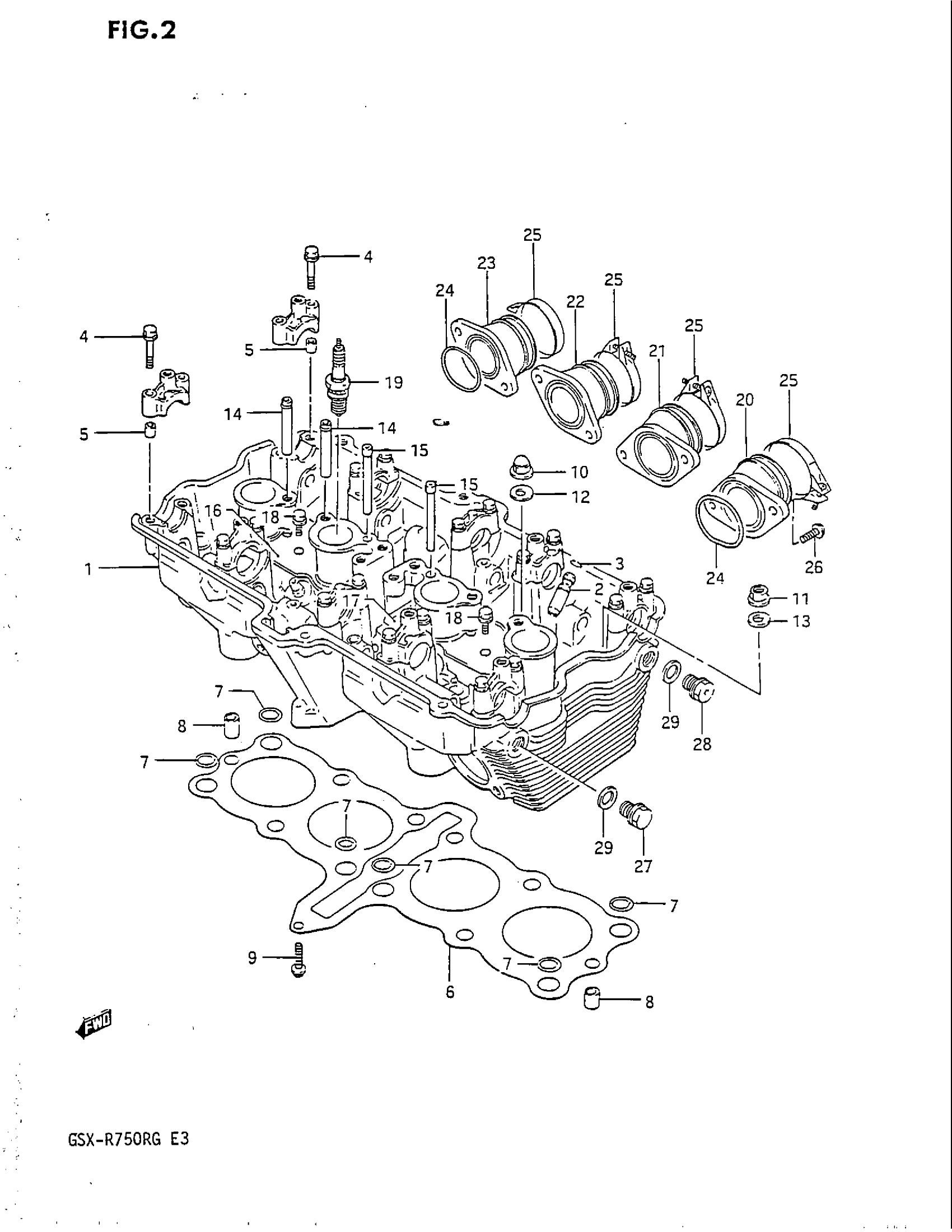

Suzuki GSX-R750R (1986) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 5 This part replaces 11100-28A01.

11100-28A03

Unavailable

2

GUIDE, VALVE (OS:0.3) This part replaces 11115-27A70.

11116-06B70

$40.73

3

.RING (10X85)

09381-10004

$1.50

4

BOLT (6X39)

09103-06026

$1.98

5

PIN

09206-08001

$1.78

6

GASKET, CYLINDER HEAD This part replaces 11141-27A01.

11141-17D10

$121.55

7

O RING

09280-12008

$2.76

8

PIN

04211-11189

$1.78

9

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

10

NUT

09159-10054

$7.82

11

NUT This part replaces 08316-16106.

08316-1010B

$2.66

12

.GASKET (10.2X20X2.3)

09168-10031

$2.03

13

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

14

PIPE, OIL NO.1,2

11131-27A00

$6.38

15

PIPE, OIL NO.3

11133-27A00

Unavailable

16

PLATE, OIL PIPE RH

11135-27A02

Unavailable

17

PLATE, OIL PIPE LH

11136-27A02

Unavailable

18

BOLT This part replaces 01517-06128.

01550-06127

$2.30

19

SPARK PLUG (NGK,DR9EA) This part replaces 09482-00184.

09482-00400

$5.24

20

PIPE,INTAKE,NO. | LH This part replaces 13110-28A00.

13101-27A00

Unavailable

21

PIPE,INTAKE,NO. | ML This part replaces 13120-28A00.

13102-27A00

Unavailable

22

PIPE,INTAKE,NO. | MR This part replaces 13130-28A00.

13103-27A00

Unavailable

23

PIPE,INTAKE,NO. | RH This part replaces 13140-28A00.

13104-27A00

Unavailable

24

O-RING (D:2.4,ID:39.7) This part replaces 13115-27A01.

09280-40020

$2.91

25

CLAMP

09402-50208

$4.77

26

SCREW This part replaces 02152-06165.

02112-0616A

$1.49

27

PLUG, CYLINDER HEAD EX

09247-14034

Unavailable

28

PLUG, CYLINDER HEAD IN

09247-14032

$5.28

29

GASKET

09168-14004

$1.83
