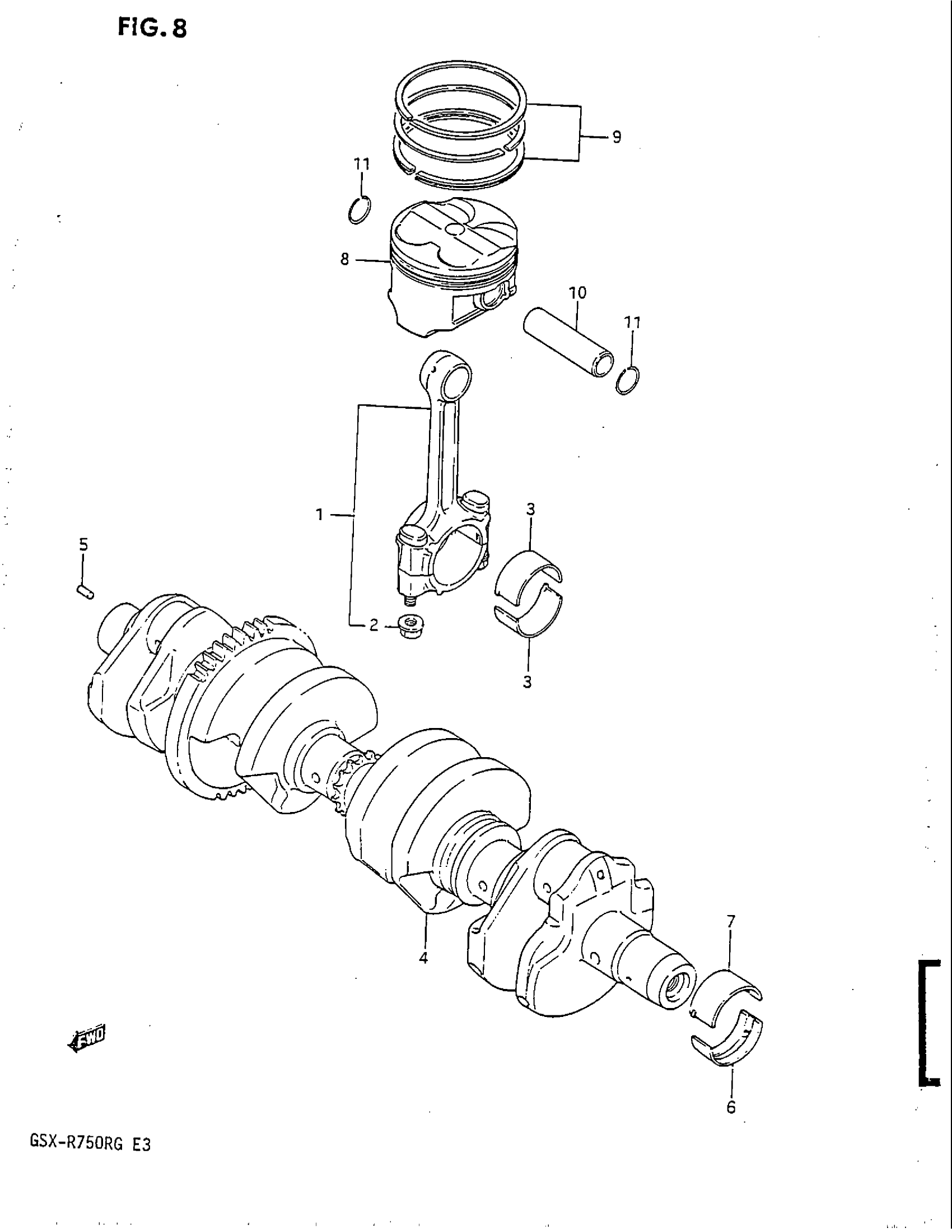

Suzuki GSX-R750R (1986) CRANKSHAFT Diagram

#

Description
Price

1

ROD ASSY, CONNECTING | Includes Item(s) 2 This part replaces 12160-27A13.

12160-27A14

Unavailable

2

NUT

09159-08033

$3.50

3

BEARING, CRANK PIN (GREEN) This part replaces 12164-27A00-0A0.

12164-17E01-0A0

$16.98

3

BEARING, CRANK PIN (BLACK) This part replaces 12164-27A00-0B0.

12164-17E01-0B0

$16.98

3

BEARING, CRANK PIN (BROWN) This part replaces 12164-27A00-0C0.

12164-17E01-0C0

$14.45

3

BEARING, CRANK PIN (YELLOW) This part replaces 12164-27A00-0D0.

12164-17E01-0D0

$17.65

4

CRANKSHAFT SET | Includes Item(s) 5 This part replaces 12220-27A03.

12000-47831

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-27A00-0A0

$10.59

6

BEARING, CRANKSHAFT (BLACK) | LOWER

12229-27A00-0B0

$12.00

6

BEARING, CRANKSHAFT (BROWN) | LOWER

12229-27A00-0C0

$12.00

6

BEARING, CRANKSHAFT (YELLOW) | LOWER

12229-27A00-0D0

$12.45

7

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-27A10-0A0

$10.59

7

BEARING, CRANKSHAFT (BLACK) | UPPER

12229-27A10-0B0

$12.45

7

BEARING, CRANKSHAFT (BROWN) | UPPER

12229-27A10-0C0

$12.00

7

BEARING, CRANKSHAFT (YELLOW) | UPPER

12229-27A10-0D0

$12.45

8

NO DESCRIPTION AVAILABLE This part replaces 12111-27A12.

12111-27A13

Unavailable

8

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-27A12-050.

12103-27820-050

Unavailable

8

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-27A12-100.

12103-27820-100

Unavailable

9

RING SET, PISTON

12140-27A11

Unavailable

9

RING SET, PISTON (OS:0.5) | OPT

12140-27A11-050

Unavailable

9

RING SET, PISTON (OS:1.0) | OPT

12140-27A11-100

Unavailable

10

PIN, PISTON This part replaces 12151-27A10.

12151-07D00

$18.43

11

CIRCLIP This part replaces 09381-18003.

09381-18005

$1.90
