1986 Suzuki GSX-R750R Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1986 Suzuki GSX-R750R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

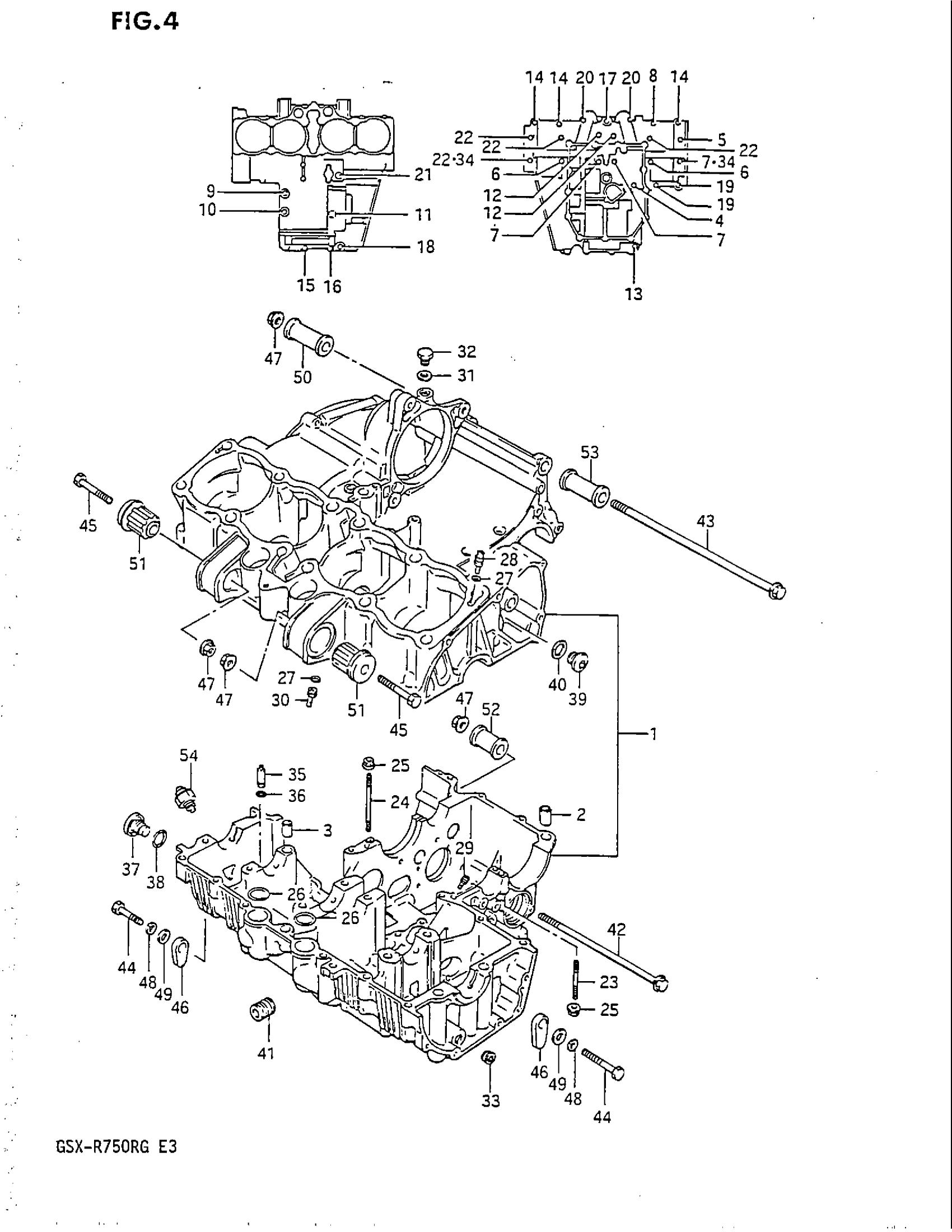

1986 Suzuki GSX-R750R Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 41 This part replaces 11300-27853.

11301-27811

1
Out of stock

2

PIN

09206-13004

2
Out of stock

3

PIN (11X20) This part replaces 09206-11005.

09206-11017

2
Out of stock

4

BOLT (6X105)

09103-06067

1
Out of stock

5

BOLT (8X105)

09103-08097

1
Out of stock

6

BOLT (8X125)

09103-08182

2
Out of stock

7

BOLT (8X115)

09103-08098

3
Out of stock

8

BOLT This part replaces 01517-06354.

01550-0635A

1
Out of stock

9

BOLT, STATOR This part replaces 07110-06405.

07130-0640B

1
Out of stock

10

BOLT This part replaces 07110-06505.

07130-0650B

1
Out of stock

11

BOLT This part replaces 07110-06655.

07130-0665B

1
Out of stock

12

BOLT This part replaces 07110-08555.

07130-0855B

2
Out of stock

13

BOLT This part replaces 01517-08605.

01550-0860A

1
Out of stock

14

BOLT This part replaces 01517-06354.

01550-0635A

3
Out of stock

15

BOLT This part replaces 01517-06404.

01550-0640A

1
Out of stock

16

BOLT This part replaces 01517-06408.

01550-06407

1
Out of stock

17

BOLT This part replaces 01517-06505.

01550-0650A

1
Out of stock

18

BOLT This part replaces 01517-06605.

01550-0660A

1
Out of stock

19

BOLT This part replaces 01517-06558.

01550-06557

2
Out of stock

20

BOLT This part replaces 01517-06705.

01550-0670B

2
Out of stock

21

BOLT This part replaces 01517-06805.

01550-0680B

1
Out of stock

22

BOLT (8X95)

09103-08105

4
Out of stock

23

BOLT,STUD This part replaces 01421-06408.

01421-0640A

1
Out of stock

24

BOLT,STUD This part replaces 01421-06608.

01421-0660A

1
Out of stock

25

NUT This part replaces 09159-06017.

08319-31067

2
Out of stock

26

O RING (D:2.5,ID:21)

09280-21008

2
Out of stock

27

O RING

09280-04004

6
Out of stock

28

JET, OIL GALY HEAD

09493-14002

2
Out of stock

29

JET, OIL GALY GEAR SHIFT

09493-24010

2
Out of stock

30

JET, OIL GALY PISTON

09493-80007

4
Out of stock

31

GASKET, HOLE PLUG

09168-12002

1
Out of stock

32

PLUG, HOLE

09247-12103

1
Out of stock

33

PLUG, OIL GALY

09246-06001

—
Out of stock

34

GASKET

09168-08021

2
Out of stock

35

VALVE ASSY, OIL CONTROL

16430-27A00

4
Out of stock

36

O RING

09280-05007

4
Out of stock

37

PLUG This part replaces 09248-16003.

09248-16007

1
Out of stock

38

O RING

09280-17002

1
Out of stock

39

PLUG, CYLINDER HEAD This part replaces 09248-14004.

09248-14010

1
Out of stock

40

GASKET

09168-14004

1
Out of stock

41

UNION, OIL FILTER STAND

16591-05A00

1
Out of stock

42

BOLT (10X180)

09103-10136

1
Out of stock

43

BOLT (10X255)

09103-10137

1
Out of stock

44

BOLT This part replaces 01107-10558.

01500-1055A

2
Out of stock

45

BOLT This part replaces 01517-10558.

01550-10557

2
Out of stock

46

NUT

09159-10020

2
Out of stock

47

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

4
Out of stock

48

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

49

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock

50

SPACER (L:55) This part replaces 11611-14220.

11610-14A00

1
Out of stock

51

BUSH

11681-27A00

2
Out of stock

52

SPACER This part replaces 11611-27A00.

11610-32400

1
Out of stock

53

SPACER (L:50) This part replaces 11612-27A00.

11610-44010

1
Out of stock

54

SWITCH ASSY,OIL PRESSURE This part replaces 37820-34200.

37820-33D11

1
Out of stock
