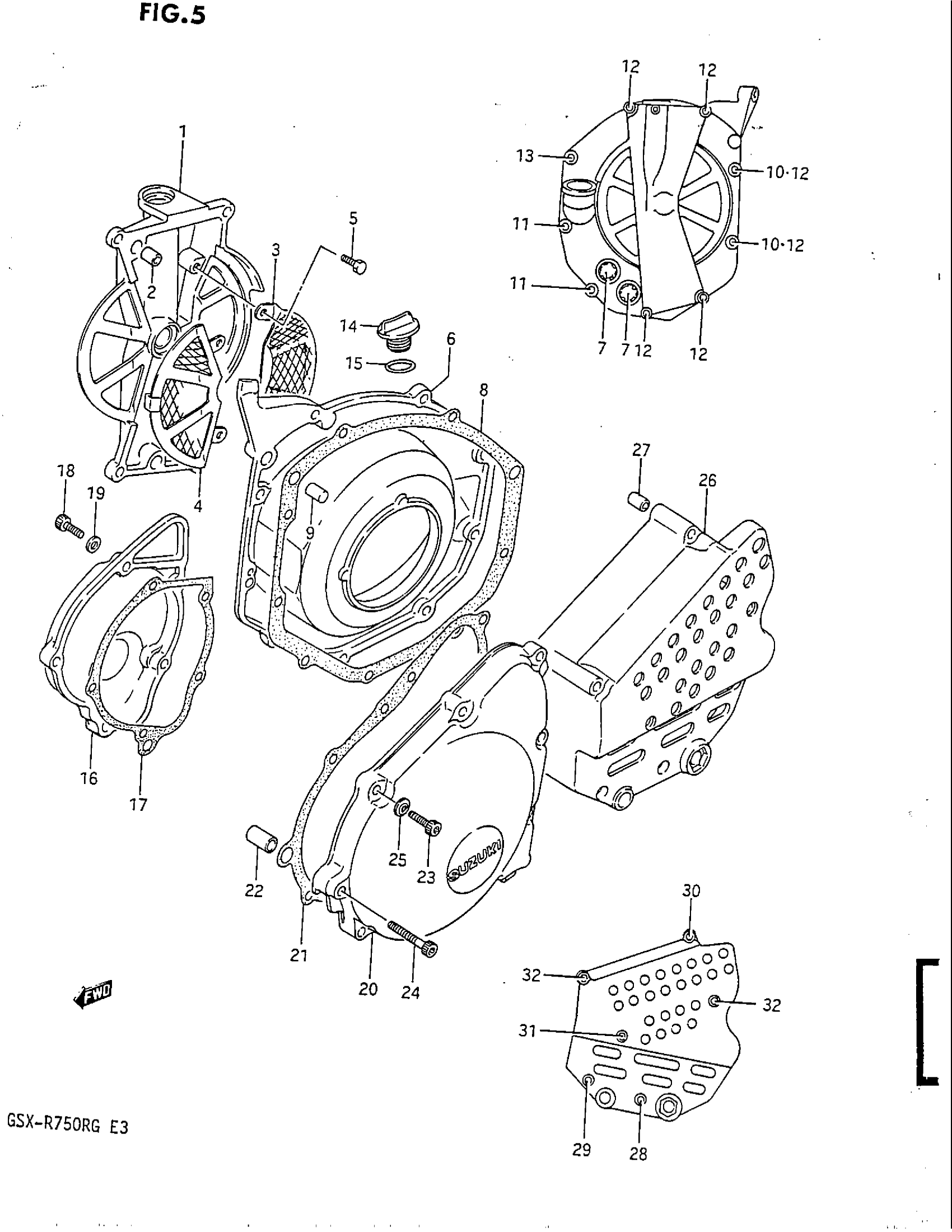

Suzuki GSX-R750R (1986) CRANKCASE COVER Diagram

NO DESCRIPTION AVAILABLE This part replaces 11370-27A32.

11370-27A33

Unavailable

PIN

04211-09109

$1.64

NO DESCRIPTION AVAILABLE This part replaces 11380-27A31.

11380-27A32

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 11390-27A31.

11390-27A32

Unavailable

BOLT This part replaces 01104-05088.

01500-05087

$2.16

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 This part replaces 11340-27A31.

11340-27A32

Unavailable

.LENS, OIL LEVEL CHECK

11971-45010

$15.78

GASKET,CLUTCH C This part replaces 11482-27A30.

11482-27A40

Unavailable

PIN

09202-09005

Unavailable

GASKET

09168-06023

$2.01

BOLT This part replaces 07110-06255.

07130-0625B

$2.80

BOLT This part replaces 07110-06305.

07130-0630B

$3.04

BOLT

09106-06063

Unavailable

.PLUG This part replaces 09259-20012.

09259-20008-XC0

$6.76

O RING

09280-17003

$1.64

COVER,SIGNAL GE This part replaces 11381-27A01.

11381-27A03

Unavailable

GASKET This part replaces 11491-27A00.

11491-27A30

$7.69

BOLT,6X23 This part replaces 09106-06059.

09106-06059-XC0

Unavailable

GASKET

09168-06023

$2.01

COVER, STARTER GEAR

11351-27A01

Unavailable

GASKET, GEAR COVER This part replaces 11483-27A00.

11483-27A20

$10.24

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

BOLT This part replaces 07110-06255.

07130-0625B

$2.80

BOLT, STATOR This part replaces 07110-06405.

07130-0640B

$3.10

GASKET

09168-06023

$2.01

NO DESCRIPTION AVAILABLE This part replaces 11361-27A30.

11361-27A32

Unavailable

PIN

04211-09129

$1.64

BOLT, STATOR This part replaces 07110-06405.

07130-0640B

$3.10

BOLT This part replaces 07110-06305.

07130-0630B

$3.04

BOLT This part replaces 07110-06505.

07130-0650B

$4.45

BOLT This part replaces 07110-06655.

07130-0665B

$3.47

BOLT This part replaces 07110-06705.

07130-0670B

$3.52
