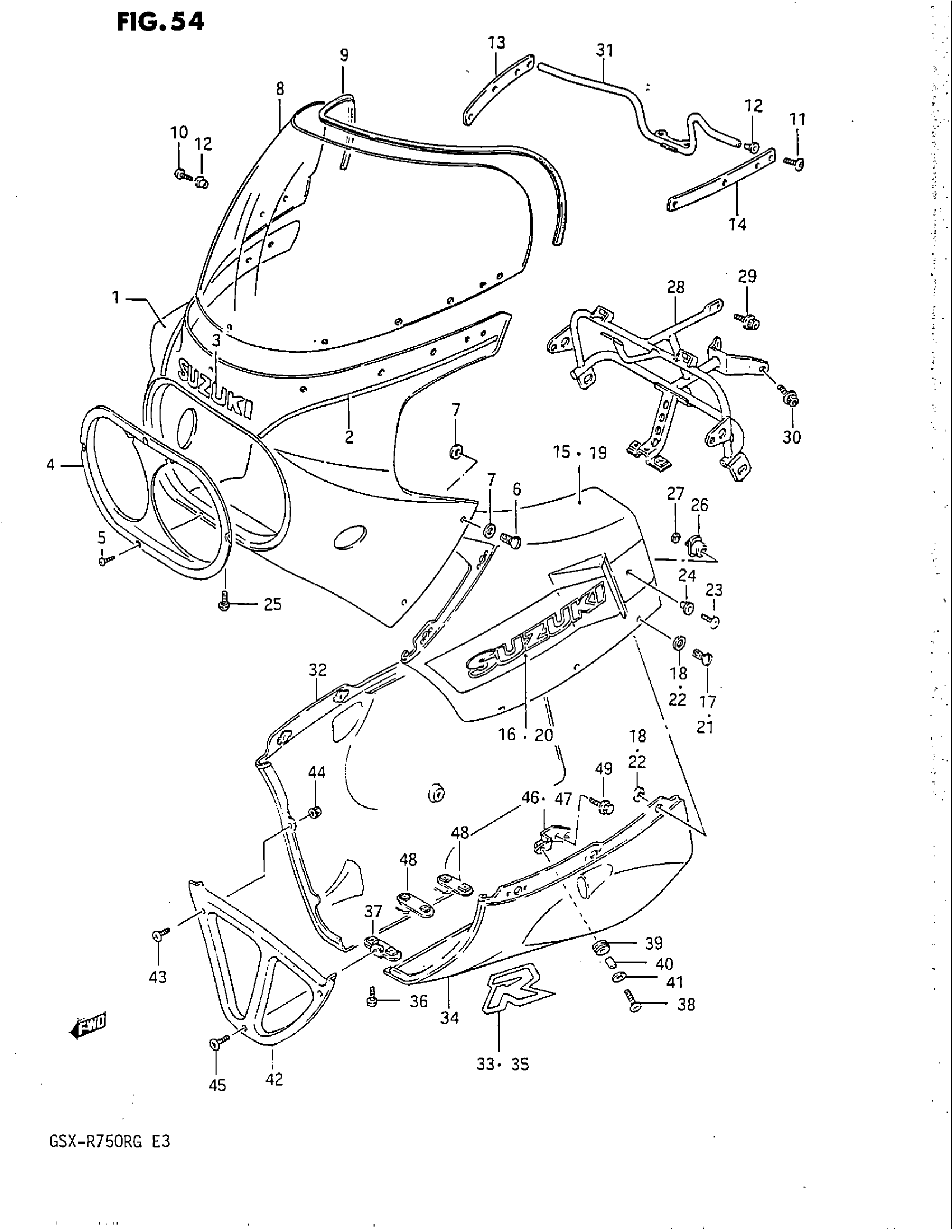

Suzuki GSX-R750R (1986) COWLING Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 94400-28A00-8JZ.

94400-28X00-8JZ

Unavailable

2

TAPE SET

68190-27A20-29W

Unavailable

3

EMBLEM This part replaces 68271-04A00-07G.

68271-04A10-07G

Unavailable

4

COVER, FRONT (BLACK)

94435-27A00-291

Unavailable

5

SCREW (4x12) This part replaces 03541-04125.

03541-0412A

$1.49

6

FASTENER

94491-28A00

Unavailable

7

WASHER

94495-28A00

Unavailable

8

WINDOW, COWLING This part replaces 94611-06B01.

94611-27A01

Unavailable

9

MOLDING This part replaces 94631-27A00.

94631-49300

$18.86

10

SCREW

09139-05025

$2.05

11

SCREW, REAR

09139-05032

$1.89

12

NUT This part replaces 94619-27A00.

09159-05048

$7.22

13

PLATE, MIRROR RH

94529-27A00

Unavailable

14

PLATE, MIRROR LH

94539-27A00

Unavailable

15

COVER, SIDE RH (WHITE/BLUE) | Includes Item(s) 16 - 18

94430-28A10-8JZ

Unavailable

16

TAPE SET, RH

68680-27A30-8RD

Unavailable

17

FASTENER

94491-28A00

Unavailable

18

WASHER

94495-28A00

Unavailable

19

NO DESCRIPTION AVAILABLE | Includes Item(s) 20 - 22 This part replaces 94440-28A10-8JZ.

94440-28A00

Unavailable

20

TAPE SET, LH

68690-27A30-8RD

Unavailable

21

FASTENER

94491-28A00

Unavailable

22

WASHER

94495-28A00

Unavailable

23

SCREW, REAR

09139-06027

$2.16

24

WASHER

09169-06033

$1.50

25

SCREW

09139-06030

$3.70

26

CUSHION

94570-04A00

$21.91

27

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

28

BRACE, FRONT

94510-27A60

Unavailable

29

BOLT, EXHAUST COVER This part replaces 07120-06165.

07120-0616B

$2.45

30

BOLT This part replaces 07120-08165.

07120-0816A

$3.05

31

BRACE, REAR

94530-27A10

Unavailable

32

NO DESCRIPTION AVAILABLE | Includes Item(s) 33 This part replaces 94470-28A00-23Z.

94470-28A10

Unavailable

33

EMBLEM

68261-27A20-742

Unavailable

34

NO DESCRIPTION AVAILABLE | Includes Item(s) 35 This part replaces 94480-28A00-23Z.

94480-28A10

Unavailable

35

EMBLEM

68261-27A20-742

Unavailable

36

SCREW, RH & LH

09139-06039

$2.19

37

BRACE, LOWER

94490-06B00

Unavailable

38

SCREW

09139-06028

$3.70

39

CUSHION

09320-09016

$1.97

40

SPACER This part replaces 09180-06152.

09180-06262

$2.55

41

WASHER (6.5X18X1)

09160-06056

$1.72

42

NO DESCRIPTION AVAILABLE This part replaces 94475-06B01-23Z.

94475-06B01-13L

Unavailable

43

SCREW

09139-05025

$2.05

44

NUT This part replaces 08316-26055.

08316-2005A

$2.19

45

SCREW

09139-06030

$3.70

46

BRACE, LOWER RH

94580-27A00

Unavailable

47

BRACE, LOWER LH

94590-27A00

Unavailable

48

BRACE, LOWER REAR

94493-06B00

Unavailable

49

BOLT This part replaces 01517-06128.

01550-06127
