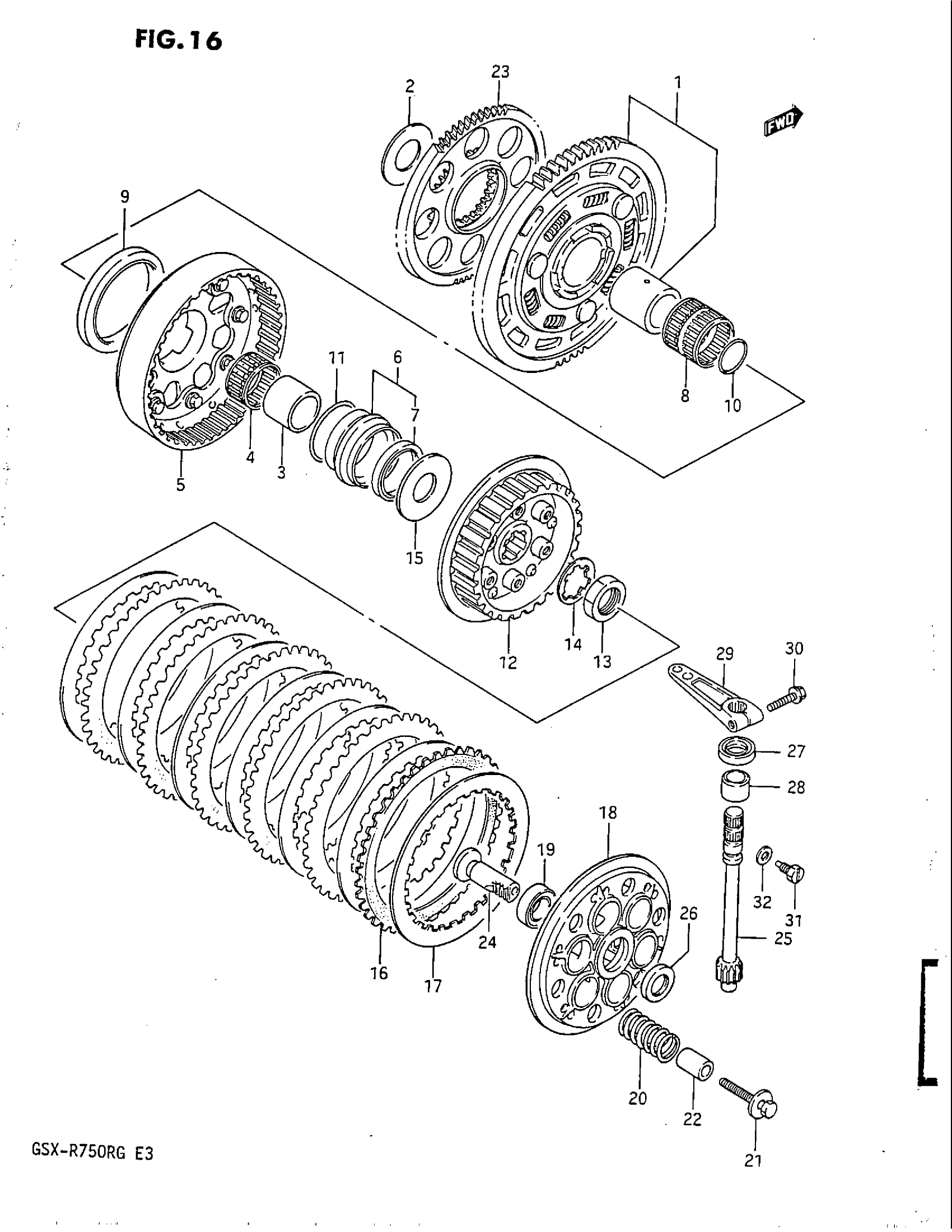

Suzuki GSX-R750R (1986) CLUTCH Diagram
#
Description
Price
1
NO DESCRIPTION AVAILABLE | NT:75 This part replaces 21200-27850.
21200-27851
Unavailable
2
WASHER This part replaces 09160-25062.
09160-25067
Unavailable
3
SPACER (25X35X25.4)
09180-25086
Unavailable
4
BEARING (35X40X17)
21253-27A50
Unavailable
5
HOUSING, CLUTCH
21220-27A31
Unavailable
6
NO DESCRIPTION AVAILABLE | Includes Item(s) 7 This part replaces 21250-27A30.
21250-27A31
Unavailable
7
OIL SEAL
09283-35023
Unavailable
9
OIL SEAL (62X82X9)
09282-62001
Unavailable
10
O RING 1.25X25. This part replaces 09280-25006.
09280-25007
Unavailable
12
HUB, SLEEVE
21410-27A32
Unavailable
13
NUT
09140-22010
Unavailable
15
WASHER
09160-22015
Unavailable
16
PLATE, DRIVE
21441-27A50
Unavailable
17
NO DESCRIPTION AVAILABLE This part replaces 21451-27A31.
21451-27A32
Unavailable
18
NO DESCRIPTION AVAILABLE | Includes Item(s) 19 This part replaces 21460-27A32.
21460-27A33
Unavailable
19
NO DESCRIPTION AVAILABLE This part replaces 21413-27A51.
09262-15028
Unavailable
21
BOLT,6X35 This part replaces 09116-06137.
09117-06037-XC0
Unavailable
24
NO DESCRIPTION AVAILABLE This part replaces 23121-27A30.
23121-27A31
Unavailable
25
NO DESCRIPTION AVAILABLE This part replaces 23261-27A30.
23261-27A31
Unavailable
26
OIL SEAL (15X25X4)
09282-15006
Unavailable
27
OIL SEAL (13X23X5)
09283-13002
Unavailable
28
BUSH
23141-42000
Unavailable
29
ARM, RELEASE
23271-27A30
Unavailable
31
BOLT
23142-42000
Unavailable
