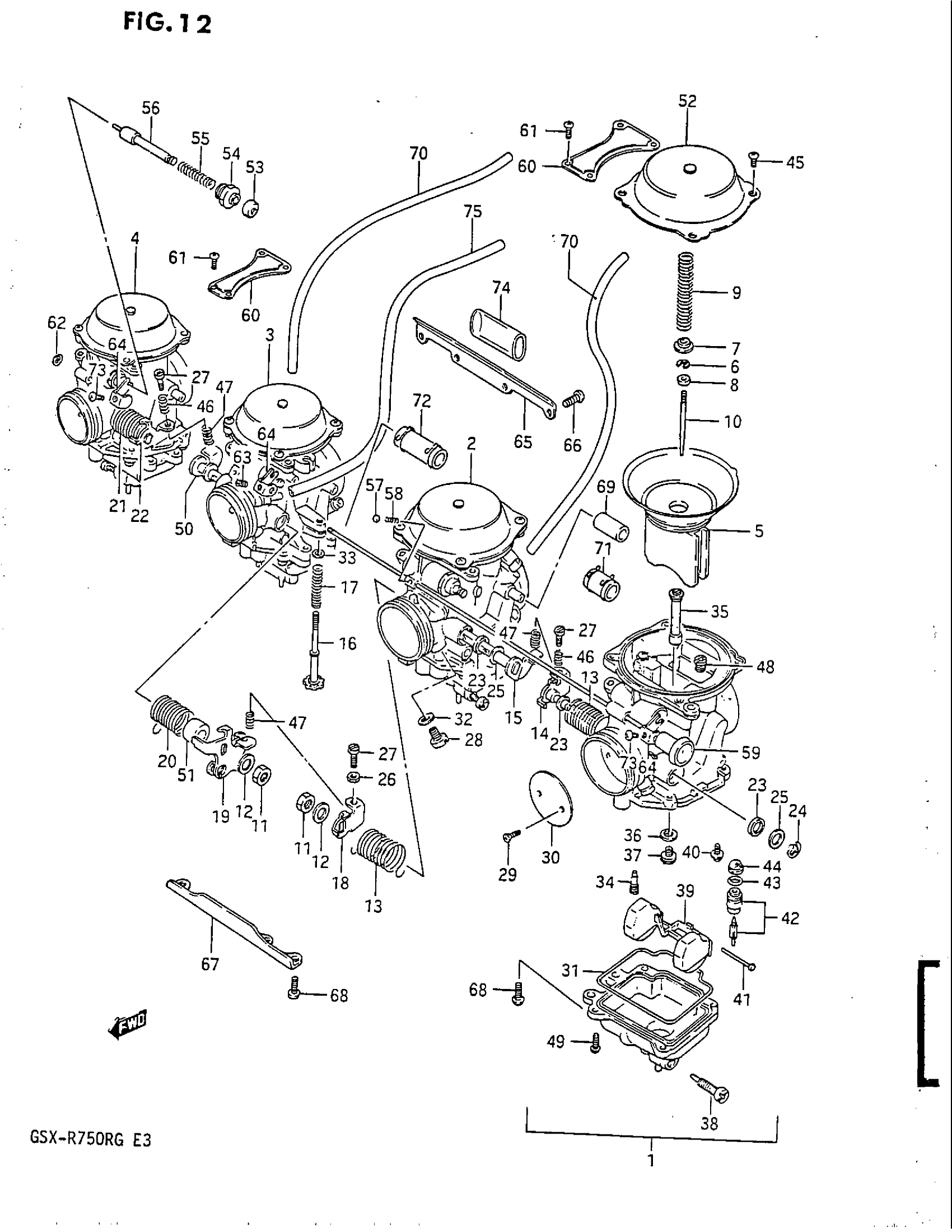

Suzuki GSX-R750R (1986) CARBURETOR Diagram

CARBURETOR ASSY, LH | OTHER THAN CALIFORNIA

13201-28A00

Unavailable

(CA)CARBURETOR ASSY, LH | CALIFORNIA ONLY

13201-28A10

Unavailable

CARBURETOR ASSY, ML | OTHER THAN CALIFORNIA

13202-28A00

Unavailable

(CA)CARBURETOR ASSY, ML | CALIFORNIA ONLY

13202-28A10

Unavailable

CARBURETOR ASSY, MR | OTHER THAN CALIFORNIA

13203-28A00

Unavailable

(CA)CARBURETOR ASSY, MR | CALIFORNIA ONLY

13203-28A10

Unavailable

CARBURETOR ASSY, RH | OTHER THAN CALIFORNIA

13204-28A00

Unavailable

(CA)CARBURETOR ASSY, RH | CALIFORNIA ONLY; Includes Item(s) 5 - 56

13204-28A10

Unavailable

DIAPHRAGM

13500-28A00

Unavailable

CLIP, NEEDLE This part replaces 13415-47070.

13394-10010

$5.45

RING

13382-42A00

$4.48

RING

13387-47010

$7.22

SPRING

13417-42A00

$6.79

NEEDLE, JET (4C7-1)

13383-28A00

Unavailable

NUT | ML,MR

08310-21086

Unavailable

WASHER | ML,MR

13606-47070

Unavailable

SPRING | LH,ML

13573-28A10

Unavailable

SHAFT ASSY | LH

13550-28A30

Unavailable

SHAFT ASSY | ML

13550-28A00

Unavailable

ADJUSTER | MR This part replaces 13267-28A00.

13267-14D10

$24.60

SPRING | MR

13271-28A10

Unavailable

LEVER | ML

13553-28A00

Unavailable

LEVER | MR

13555-28A00

Unavailable

SPRING | MR

13573-28A00

Unavailable

SPRING | RH

13573-28A20

Unavailable

SHAFT ASSY | RH

13550-28A20

Unavailable

SEAL This part replaces 13651-51010.

13651-51011

$2.20

E RING | LH,RH

13617-44080

$2.90

WASHER

13557-47070

$3.59

NUT | ML

13582-95216

Unavailable

SCREW | LH,ML,RH

13267-52012

Unavailable

SCREW | OTHER THAN CALIFORNIA

13605-73000

$11.95

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

VALVE, THROTTLE (130)

13551-42A10

Unavailable

O RING

13251-42A00

$9.03

WASHER | OTHER THAN CALIFORNIA

13249-78100

$2.92

WASHER | MR

13432-47090

$2.28

JET, PILOT (32.5)

09492-32006

$11.32

JET, NEEDLE (P-8)

09494-00530

Unavailable

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

JET, MAIN (117.5)

09491-23017

$11.83

SCREW, DRAIN

13247-28A00

$7.32

FLOAT

13250-28A00

$30.87

SCREW

13602-43410

$2.92

PIN

13254-92311

$2.07

VALVE ASSY, NEEDLE

13370-44500

$50.98

O RING This part replaces 66263-99050.

13374-35C00

$5.99

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

SCREW | LH/MR:2,ML/RH:3 This part replaces 02112-04085.

02112-0408A

$1.49

SPRING | LH,RH

13271-28A00

Unavailable

SPRING | LH,ML,RH This part replaces 13268-96110.

13268-96111

$4.35

JET, PILOT AIR (160)

09493-32002

$16.57

SCREW This part replaces 13602-27A10.

02112-04127

$2.23

SHAFT ASSY | MR

13550-28A10

Unavailable

RING | MR

13574-28A00

$4.13

COVER ASSY This part replaces 13502-28A00.

13502-09F00

Unavailable

.CAP, STARTER VALVE

13682-31210

$4.37

.HOLDER, GUIDE

13418-44080

$10.00

SPRING

13417-43010

$4.34

PLUNGER ASSY

13411-05320

$26.80

BALL

13596-93010

$4.43

SPRING

13434-43010

$6.47

SHAFT ASSY, STARTER

13410-28A00

Unavailable

PLATE

13628-28A00

Unavailable

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

E RING This part replaces 13298-49000.

13415-38300

$2.08

SCREW This part replaces 13605-49330.

13605-47070

Unavailable

LEVER This part replaces 13422-28A00.

13422-48B10

Unavailable

PLATE

13628-28A10

Unavailable

SCREW This part replaces 02112-05128.

02112-05127

$1.97

PLATE

13628-28A20

Unavailable

SCREW This part replaces 02112-05168.

02112-05167

$1.97

HOSE(6.5X11.5X6 | L:400->18 This part replaces 13683-49160.

09355-65001-600

$12.00

HOSE,5X10X600 This part replaces 13684-28A00.

44421-13ER0

$10.06

HOSE ASSY This part replaces 13680-27A00.

13218-03D01

Unavailable

HOSE ASSY This part replaces 13680-28A00.

13680-28A01

Unavailable

SCREW This part replaces 13605-34390.

13605-09300

Unavailable

HOSE This part replaces 13684-28A10.

13684-43440

Unavailable

HOSE This part replaces 13683-06A20.

09352-50901-600

$8.06
