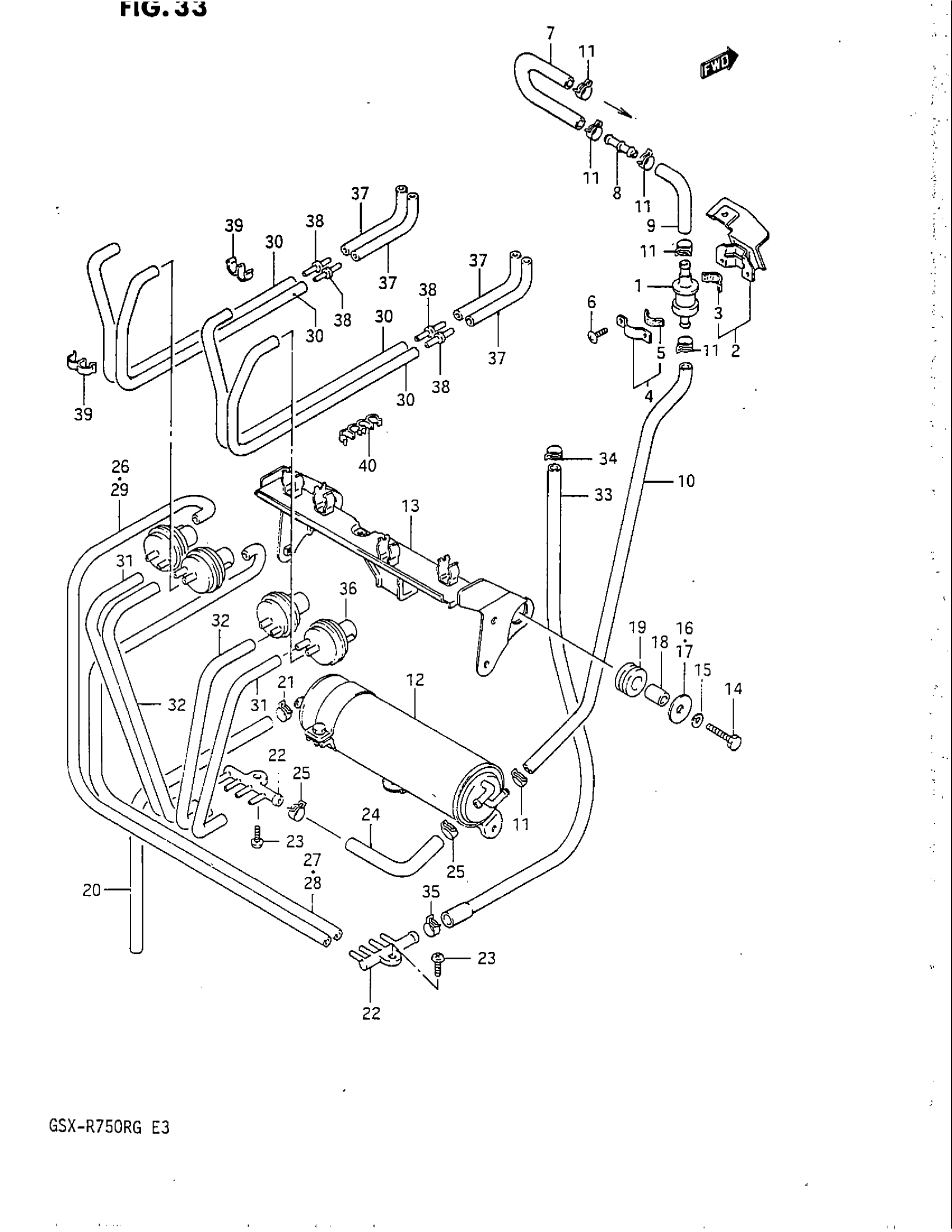

Suzuki GSX-R750R (1986) CANISTER (CALIFORNIA ONLY) Diagram

#

Description
Price

1

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

2

PLATE, BREATHER VALVE NO.1 | Includes Item(s) 3

44890-28A00

Unavailable

3

CUSHION (10X30X2)

44894-24A00

$1.72

4

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 5

44892-24A00

$4.52

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

7

HOSE, TANK JOINT PIPE

09343-05371

Unavailable

8

PIPE, HOSE JOINT

09364-06005

$5.72

9

HOSE, NO.1 This part replaces 09343-05372.

09343-05403

Unavailable

10

HOSE, CANISTER & CARB This part replaces 09343-05314.

09355-54115-00B

Unavailable

11

CLIP This part replaces 09401-11410.

09401-11413

$2.26

12

CANISTER ASSY

17210-28A00

Unavailable

13

BRACKET, CANISTER

44880-28A00

Unavailable

14

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

15

LOCK WASHER This part replaces 08321-31064.

08321-0106A

$1.84

16

WASHER (6.5X24X1.2) This part replaces 09160-06076.

09160-06114

$2.03

17

WASHER This part replaces 09160-06063.

09160-06054

$1.62

18

SPACER

09180-06120

$2.32

19

CUSHION This part replaces 09320-11012.

09320-11008

$2.60

20

HOSE, CANISTER DRAIN This part replaces 09343-07137.

09354-70133-185

Unavailable

21

CLIP This part replaces 09401-12406.

09401-11415

$2.23

22

SEPARATOR VALVE

09367-04006

Unavailable

23

.SCREW This part replaces 02112-05166.

02112-0516A

$1.49

24

HOSE, CANISTER/SEPARATOR JOIN

09343-07193

Unavailable

25

CLIP This part replaces 09401-12406.

09401-11415

$2.23

26

HOSE, LH (L:310)

09343-03029

Unavailable

27

HOSE, MIDDLE LH (L:340)

09343-03034

Unavailable

28

HOSE, MIDDLE RH (L:400)

09343-03042

Unavailable

29

HOSE, RH (L:470)

09343-03060

Unavailable

30

HOSE, CARBURETOR PURGE (L:400

09343-03042

Unavailable

31

HOSE, SEPARATOR NO.1,NO.4

09343-03093

Unavailable

32

HOSE, SEPARATOR NO.2,NO.3

09343-03079

Unavailable

33

HOSE, SEPARATOR/CARBURETOR

09343-05416

Unavailable

34

CLIP This part replaces 09401-11410.

09401-11413

$2.26

35

CLIP This part replaces 09401-12406.

09401-11415

$2.23

36

VALVE, VACUUM CONTROL

44250-28A00

Unavailable

37

HOSE, CARBURETOR PURGE (L:100

09343-03079

Unavailable

38

PIPE, 2 WAY This part replaces 45424-24A00.

09367-04008

Unavailable

39

CLAMP

09408-00033

$2.83

40

CLAMP

09408-00035

Unavailable
