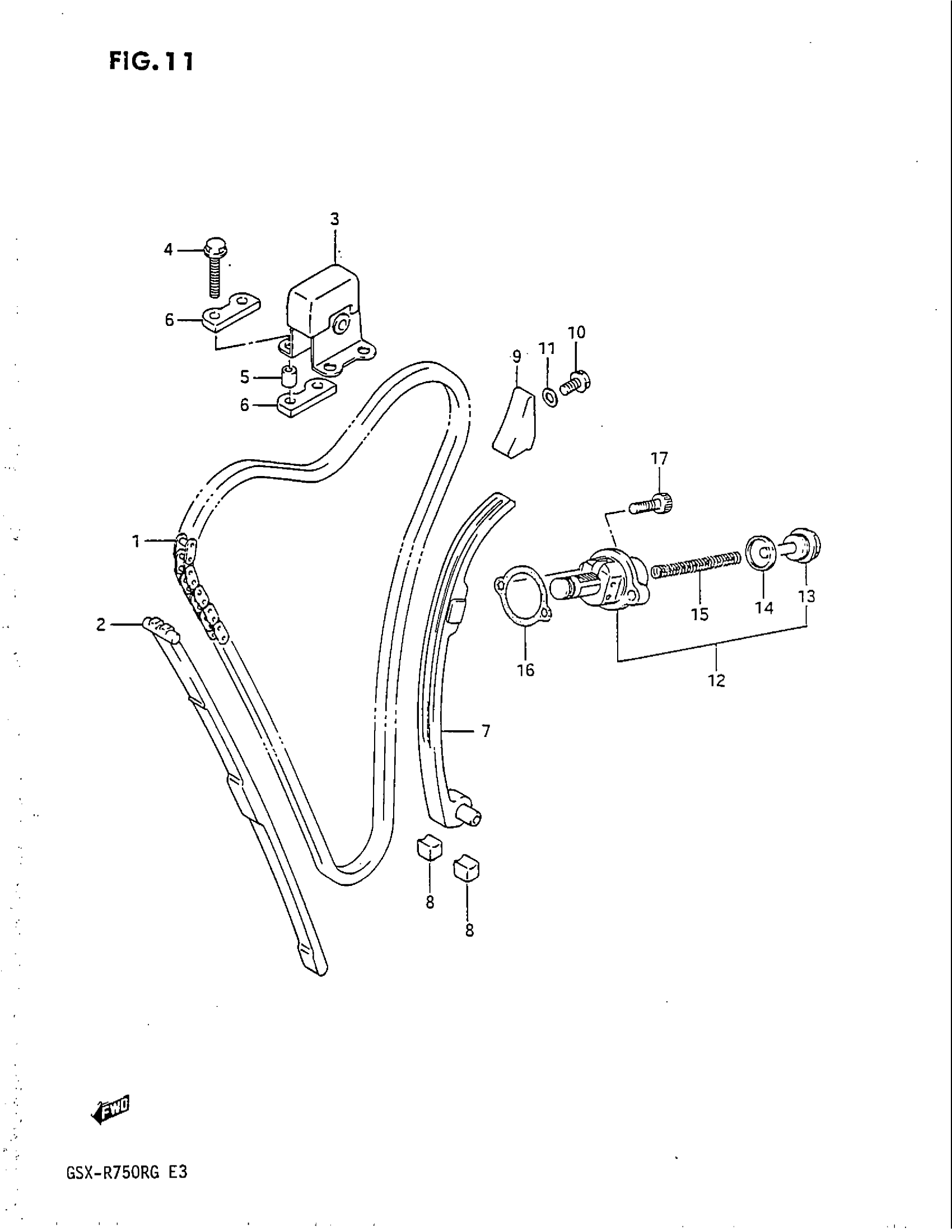

Suzuki GSX-R750R (1986) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE This part replaces 12760-27A00.

12760-17D01

Unavailable

2

GUIDE, CAM CHAIN NO.1

12771-27A00

Unavailable

3

IDLER, CAM CHAIN This part replaces 12780-27A02.

12780-40C00

Unavailable

4

BOLT This part replaces 01517-06258.

01550-06257

$2.30

5

SPACER This part replaces 09180-06143.

09180-06286

$2.50

6

CUSHION (T:5.2) This part replaces 12788-27A00.

12788-48B01

Unavailable

7

TENSIONER, CAM CHAIN

12810-27A00

Unavailable

8

CUSHION

12814-34200

$5.58

9

GUIDE, CAM CHAIN NO.2

12791-27A00

$14.20

10

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

11

WASHER

09168-06023

$2.35

12

ADJUSTER ASSY, TENSIONER | Includes Item(s) 13 - 15 This part replaces 12830-27A04.

12830-27A08

Unavailable

13

PLUG

12834-27A00

Unavailable

14

GASKET

12832-27A00

$6.91

15

SPRING

12833-27A00

Unavailable

16

GASKET This part replaces 12837-27A00.

12837-27A10

$3.85

17

BOLT This part replaces 07110-06255.

07130-0625B

$3.04
