Partiron

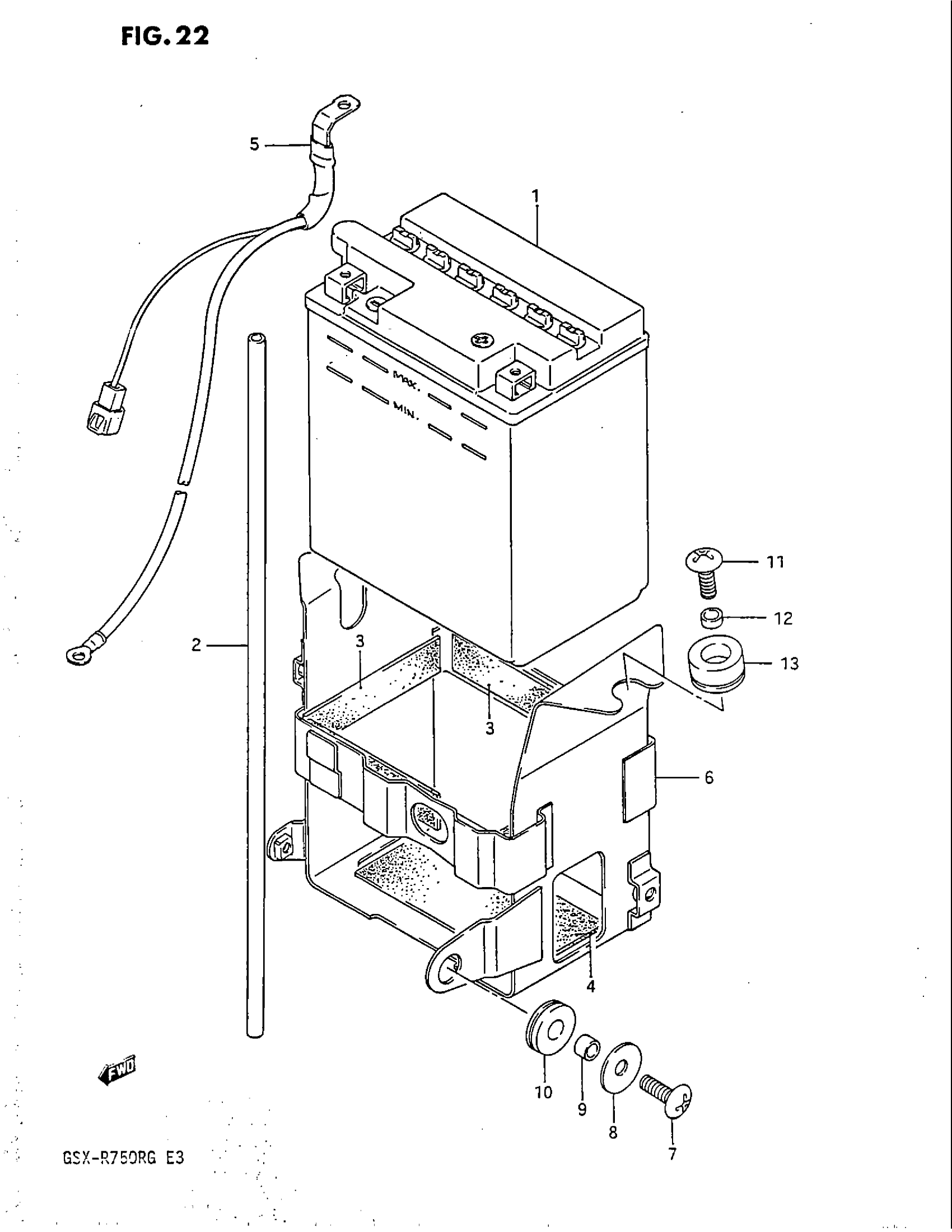

Suzuki GSX-R750R (1986) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,14AH)

33610-49210

Unavailable

2

HOSE,BATTERY EX This part replaces 33680-31003.

33680-16A11

$6.78

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

4

CUSHION | CUT AS REQUIRED PROFILE

33651-37000

$4.48

5

WIRE,BATT MINUS This part replaces 33860-06B00.

33860-06B12

$24.85

6

HOLDER, BATTERY This part replaces 41540-27A00.

41540-27A20

Unavailable

7

SCREW, BODY COVER UPPER This part replaces 02142-06257.

09125-06055

$2.34

8

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

9

SPACER This part replaces 09180-06152.

09180-06262

$2.55

10

CUSHION This part replaces 09320-09021.

09320-09502

$4.17

11

SCREW

02142-06207

$1.49

12

SPACER (6.5X9X5) This part replaces 09180-06073.

09180-06306

$2.03

13

CUSHION

41549-27A30

Unavailable
