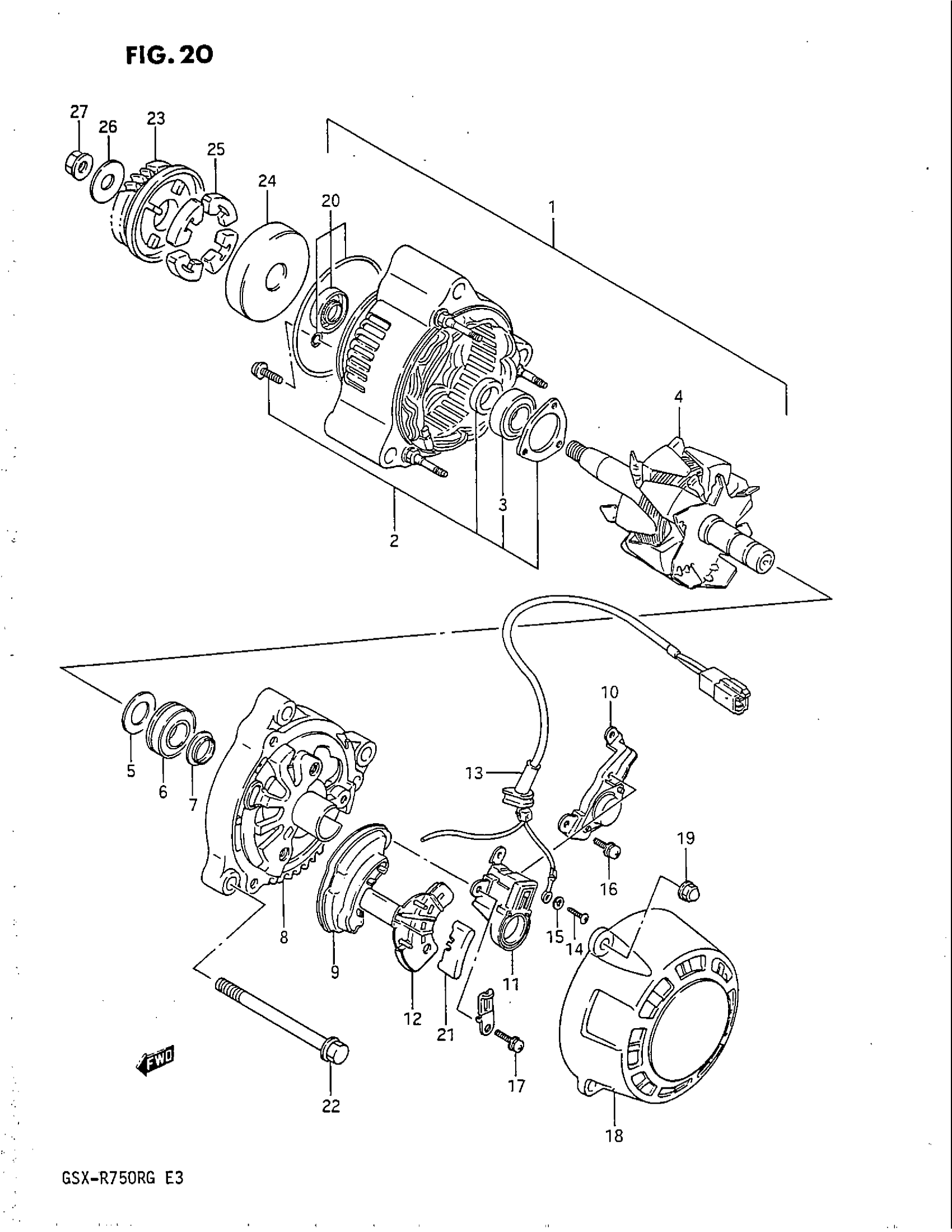

Suzuki GSX-R750R (1986) ALTERNATOR Diagram

#

Description
Price

1

ALTERNATOR ASSY | Includes Item(s) 2 - 21 This part replaces 31400-06B00.

31400-17C04

Unavailable

2

FRAME, DRIVE END

31580-06B00

Unavailable

3

BEARING

31612-06B00

Unavailable

4

ROTOR ASSY

31710-06B00

Unavailable

5

COVER (1) This part replaces 31613-27A00.

31613-82610

Unavailable

6

BEARING This part replaces 31612-27A00.

31612-48B00

$47.07

7

COVER, NO.2

31613-27A10

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 31611-06B00.

31611-06B01

Unavailable

9

HOLDER, RECTIFIER

31621-27A00

Unavailable

10

REGULATOR

32500-27A00

Unavailable

11

HOLDER, BRUSH This part replaces 31656-06B00.

31656-48B00

Unavailable

12

COVER, RECTIFIER This part replaces 31687-27A00.

31687-17E00

$6.88

13

LEAD WIRE This part replaces 31480-27A00.

31480-48B00

Unavailable

14

SCREW This part replaces 02112-04086.

02112-0408A

$1.49

15

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

16

SCREW (5X17)

31688-27A00

Unavailable

17

SCREW (5X17) This part replaces 31688-06B00.

31688-27A00

Unavailable

18

COVER

31614-27A00

Unavailable

19

NUT This part replaces 31692-27A00.

08313-2005A

$2.42

20

OIL SEAL SET This part replaces 31780-06B00.

31780-27X50

$53.82

21

COVER, RECTIFIER This part replaces 31514-27A00.

31687-17E00

$6.88

22

BOLT This part replaces 01517-08905.

01550-0890B

$5.37

23

GEAR, GENERATOR DRIVEN This part replaces 22730-27A01.

22730-27A05

Unavailable

24

HOUSING DAMPER This part replaces 22733-27A03.

22733-27A05

Unavailable

25

DAMPER

21231-06B00

$4.64

26

WASHER

08211-10283

$3.78

27

NUT This part replaces 08316-26106.

08316-2010B

$3.43
