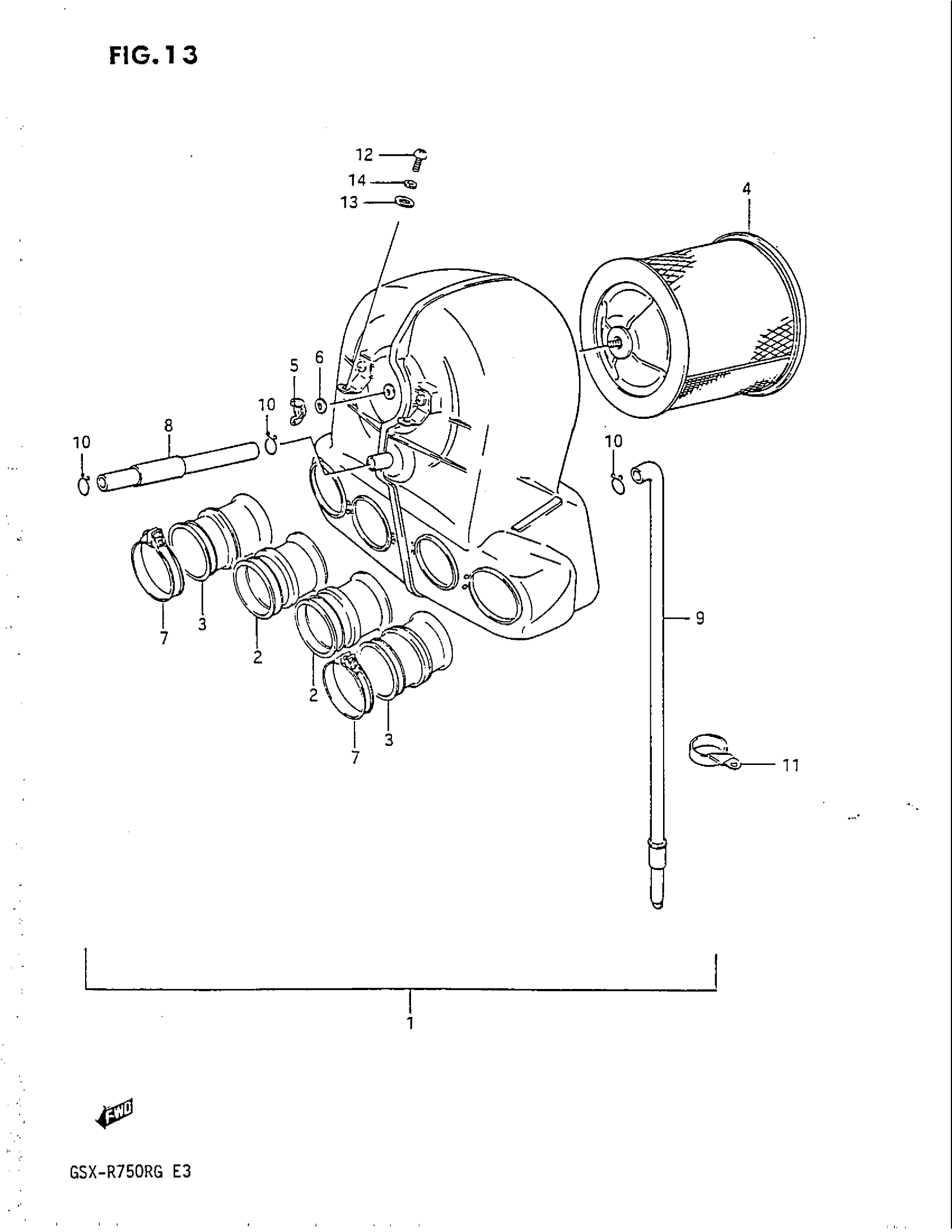

Suzuki GSX-R750R (1986) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 10

13700-27A11

Unavailable

2

TUBE,OUTLET NO. This part replaces 13881-27A00.

13881-27A01

$15.42

3

TUBE,OUTLET,NO. This part replaces 13882-27A00.

13882-27A01

$16.97

4

FILTER

13780-27A10

Unavailable

5

NUT This part replaces 08317-12058.

08317-1205A

$2.53

6

WASHER This part replaces 08322-11058.

08322-01057

$2.13

7

CLAMP This part replaces 09402-56207.

09402-56901

$5.36

8

TUBE, BREATHER

13850-27A00

Unavailable

9

TUBE,DRAIN This part replaces 13870-21447.

13870-21459

$23.68

10

CLIP

09401-14301

$2.35

11

CLAMP, DRAIN TUBE

13879-27A01

Unavailable

12

SCREW This part replaces 02112-06208.

02112-06207

$1.78

13

WASHER (6.5X16X1.2)

09160-06019

$1.49

14

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13
