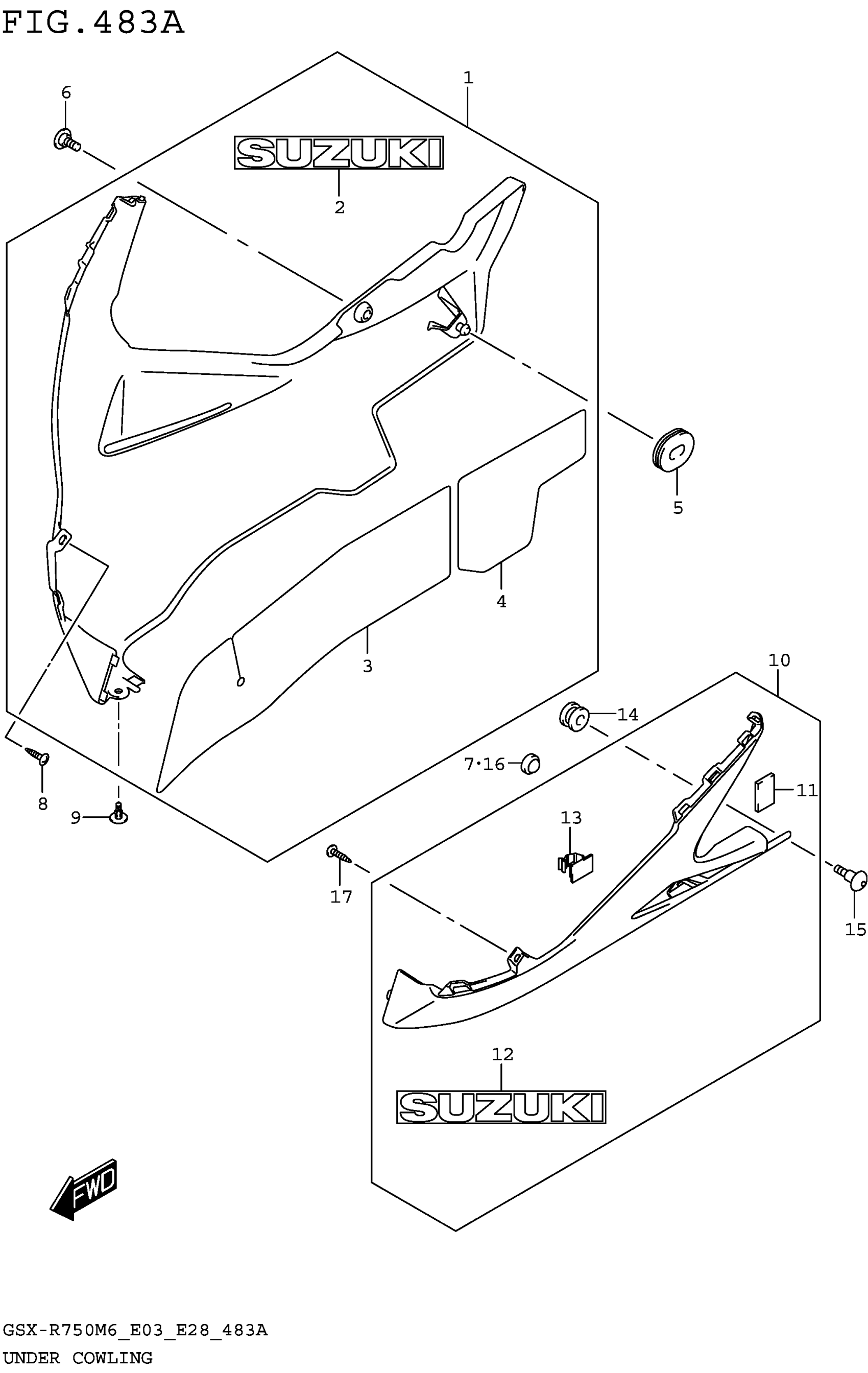

Suzuki GSX-R750M6 (2026) UNDER COWLING Diagram

#

Description
Price

1-1

COWLING,UNDER,R (SILVER) | BODY COLOR:CFR

94470-14J30-QKA

Unavailable

1-2

COWLING,UNDER,R (BLACK) | BODY COLOR:BNR

94470-14J30-YKV

Unavailable

2-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:CFR

68181-33C20-019

$26.75

2-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:BNR

68181-33C20-YES

$17.13

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$16.50

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$15.23

5

CUSHION

94478-14J00

$5.92

6

SCREW,UNDER COWL,R (5X13)

94476-14J00

$4.49

7

CUSHION

09321-10018

$5.45

8

SCREW

03541-0512A

$1.49

9

CLIP

94479-35F00

$5.62

10-1

COWLING,UNDER,L (SILVER) | BODY COLOR:CFR

94480-14J30-QKA

Unavailable

10-2

COWLING,UNDER,L (BLACK) | BODY COLOR:BNR

94480-14J30-YKV

Unavailable

11

.CUSHION,BRACKET NO.1

47161-10FA1

$4.82

12-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:CFR

68181-33C20-019

$26.75

12-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:BNR

68181-33C20-YES

$17.13

13

.CLAMP

09403-14311

$5.33

14

CUSHION (9X18X9.5)

09320-09016

$1.97

15

SCREW (6X20)

09139-06190

$4.17

16

CUSHION

09321-10018

$5.45

17

SCREW

03541-0512A

$1.49
