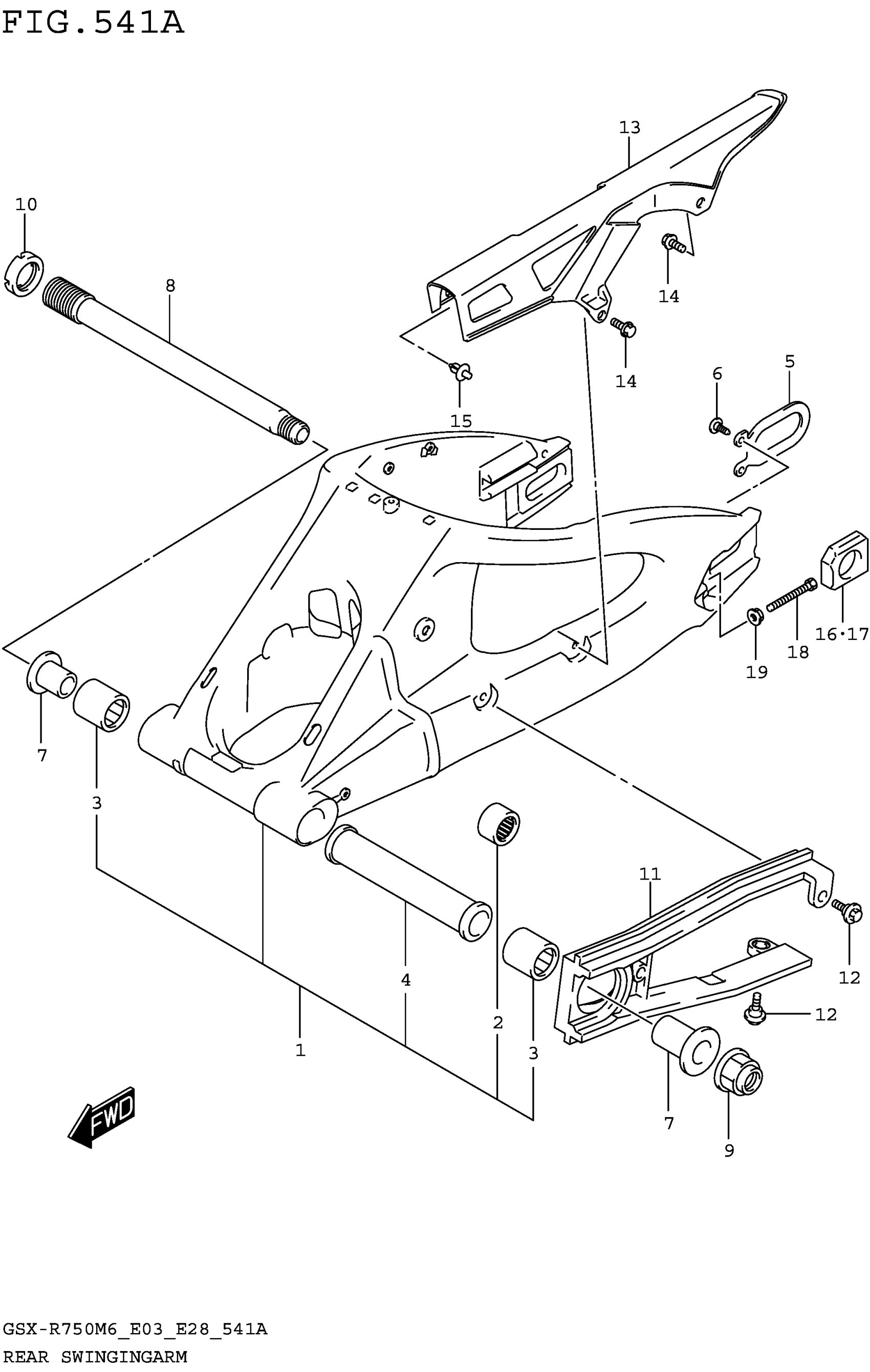

Suzuki GSX-R750M6 (2026) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY,RR (BLACK)

61000-14J01-YAP

$2,954.95

2

.BEARING (20X27X30)

09263-20070

$41.00

3

.BEARING (27X35X35)

09263-27015

$24.86

4

.SPACER,RR SWG PVT CTR

61281-41G00

$62.83

5

PLATE,RR SWGARM BRKT

61124-14J00

$9.43

6

SCREW (6X12)

09125-06060

$1.95

7

SPACER,RR SWGARM PIVOT BEARIN

61251-41G00

$36.12

8

SHAFT,RR SWINGINGARM PIVOT

61211-01H00

$192.08

9

NUT

09159-20006

$34.67

10

NUT,RR SWGARM PIVOT BOLT

61214-42E10

$48.00

11

BUFFER,CHAIN TOUCH DEFENSE

61273-14J01

$68.00

12

BOLT (6X17.8)

09111-06072

$2.01

13

CASE,CHAIN

61311-14J00

$50.22

14

BOLT (6X12)

09111-06107

$2.66

15

CLIP (7.6X25.7)

09409-08308

$1.97

16

ADJUSTER,CHAIN

61445-44G20

$38.54

17

ADJUSTER,CHAIN

61446-44G20

$38.54

18

BOLT (8X50)

09100-08287

$2.80

19

NUT

08316-1008A

$2.47
