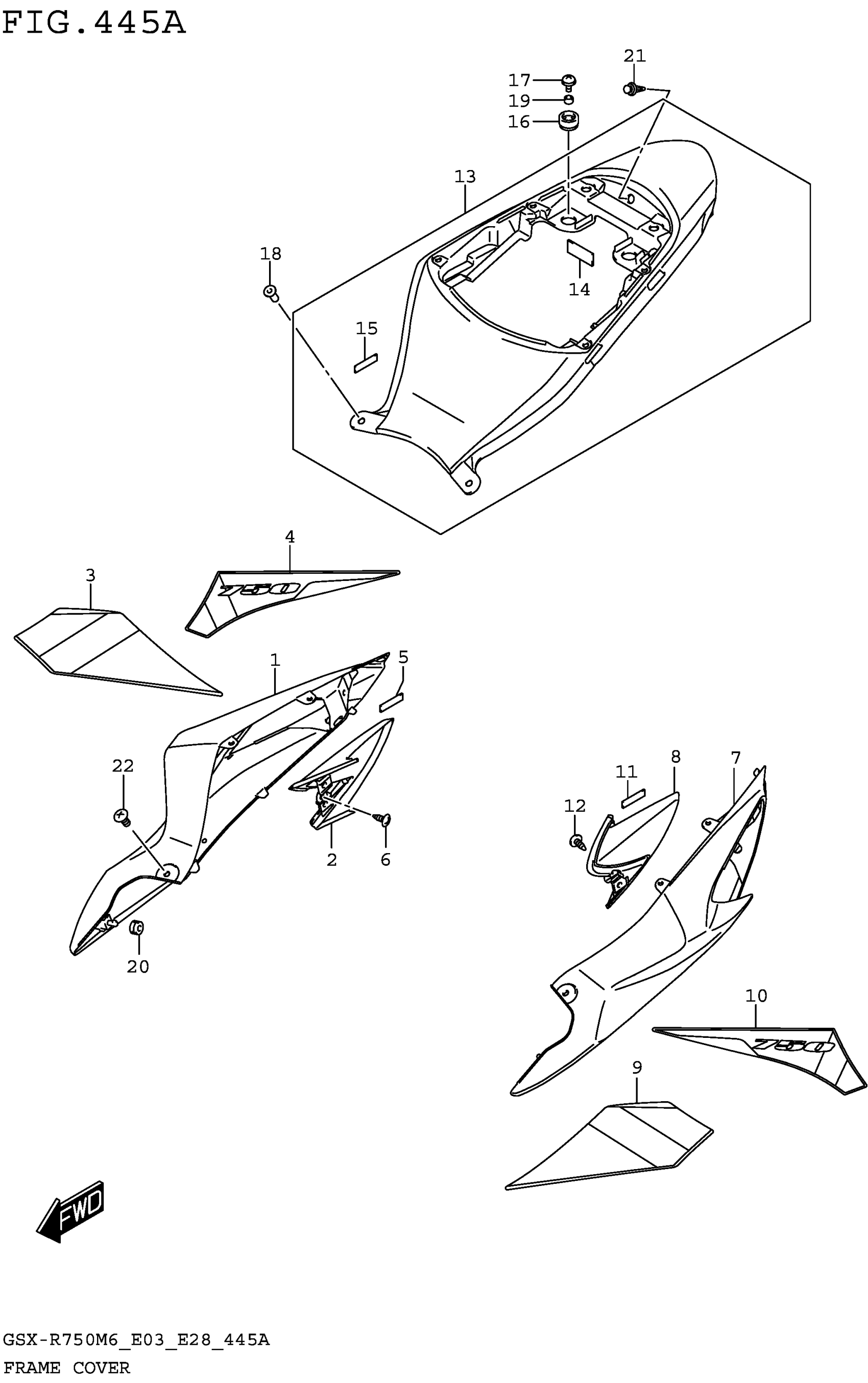

Suzuki GSX-R750M6 (2026) FRAME COVER Diagram

#

Description
Price

1

COVER,FRAME,R (BLACK)

47111-14J00-YVB

Unavailable

2

COVER,FRAME RR,R

47611-14J00

$18.97

3-1

TAPE,FRAME COVER,R (RED,BLUE, | LACK) BODY COLOR:BNR

68135-14JB0-DD5

Unavailable

3-2

TAPE,FRAME COVER,R (BLUE,BLAC | ) BODY COLOR:CFR

68135-14JB0-DD7

Unavailable

4-1

TAPE,FRAME COVER,R (RED,BLUE, | ILVER,BLACK) BODY COLOR:BNR

68135-15J50-DD6

Unavailable

4-2

TAPE,FRAME COVER,R (BLUE,BLAC | ) BODY COLOR:CFR

68135-15J50-DD7

Unavailable

5

TAPE (6X25X0.13)

94443-06G00

$3.25

6

SCREW

03541-0512A

$1.49

7

COVER,FRAME,L (BLACK)

47211-14J00-YVB

Unavailable

8

COVER,FRAME RR,L

47621-14J00

$19.07

9-1

TAPE,FRAME COVER,L (RED,BLUE, | LACK) BODY COLOR:BNR

68145-14JB0-DD5

Unavailable

9-2

TAPE,FRAME COVER,L (BLUE,BLAC | ) BODY COLOR:CFR

68145-14JB0-DD7

Unavailable

10-1

TAPE,FRAME COVER,L (RED,BLUE, | ILVER,BLACK) BODY COLOR:BNR

68145-15J50-DD6

Unavailable

10-2

TAPE,FRAME COVER,L (BLUE,BLAC | ) BODY COLOR:CFR

68145-15J50-DD7

Unavailable

11

TAPE (6X25X0.13)

94443-06G00

$3.25

12

SCREW

03541-0512A

$1.49

13

COVER ASSY,FRAME CTR

47300-14J10

$97.78

14

CUSHION (10X24X1)

48128-14FA0

$6.47

15

TAPE (6X25X0.13)

94443-06G00

$3.25

16

CUSHION (10X24X13)

47312-37H10

$2.91

17

SCREW (6X16)

09136-06056

$2.19

18

NUT (M5)

09159-05019

$7.14

19

SPACER (6.5X10X7)

09180-06283

$1.91

20

CUSHION (6X18X6)

09320-06504

$4.96

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

22

SCREW

02142-1520B

$2.28
