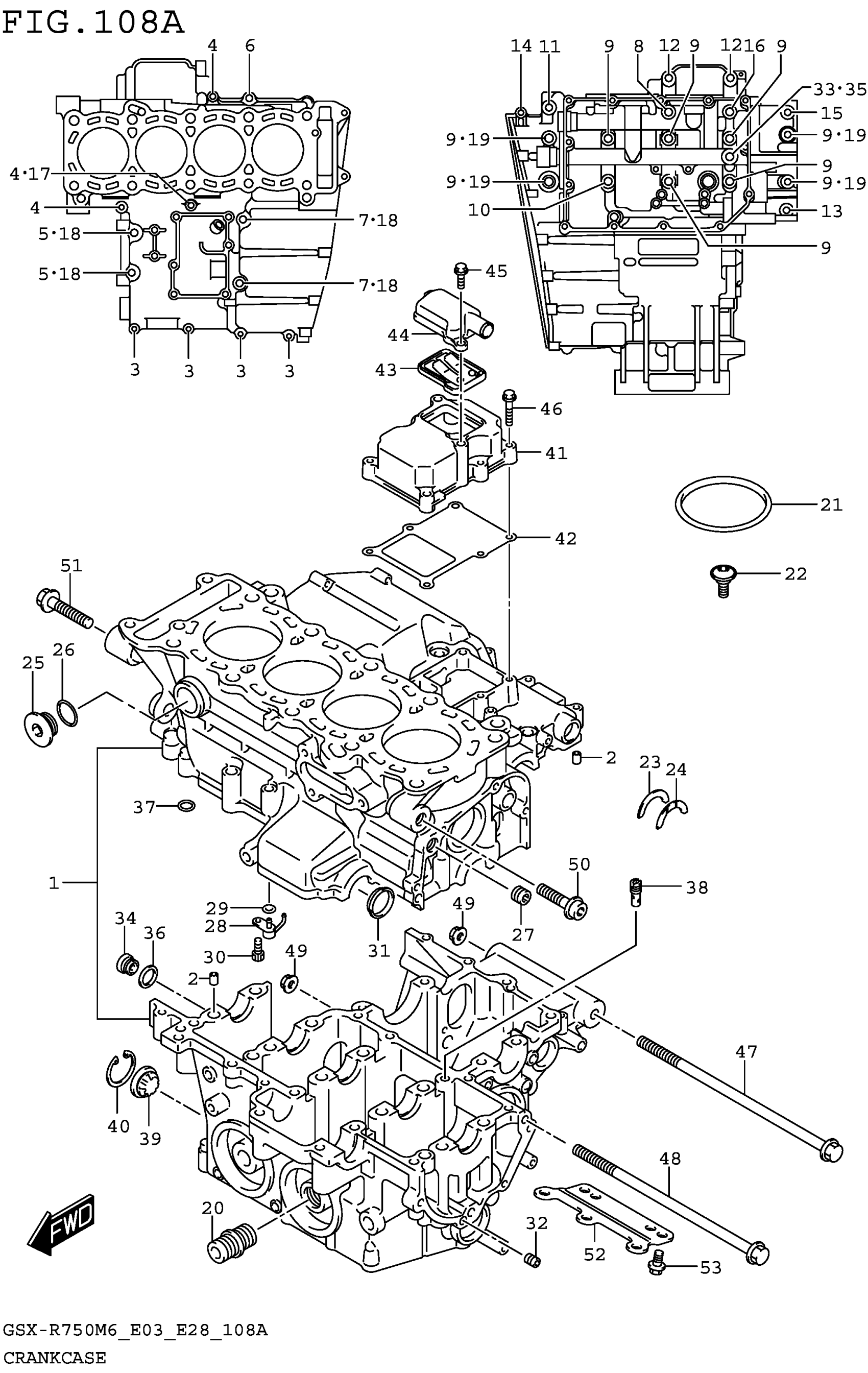

Suzuki GSX-R750M6 (2026) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-15830

$4,816.73

2

PIN,CRANKCASE

11319-33E50

$5.32

3

BOLT

01547-0635A

$2.30

4

BOLT

01547-0665A

$2.32

5

.BOLT

01550-0850A

$3.67

6

.BOLT

01550-0860A

$4.17

7

BOLT

01550-0875A

$3.55

8

.BOLT (8X105)

09103-08097

$3.44

9

.BOLT (9X95)

09103-09012

$8.76

10

.BOLT (9X80)

09103-09014

$10.10

11

.BOLT

01550-0855A

$3.05

12

.BOLT (8X55)

09103-08339

$3.49

13

BOLT

01547-0630A

$2.32

14

BOLT

01547-0645A

$2.42

15

.BOLT

01550-0865A

$3.51

16

.BOLT

01550-0885A

$4.17

17

GASKET (5.8X13X1.2)

09168-06023

$2.35

18

GASKET (8.2X14X1)

09168-08016

$1.65

19

.GASKET (10.2X20X2.3)

09168-10031

$2.03

20

UNION,OIL STAND

16591-06B01

$7.05

21

.O-RING (D:1.9,ID:99.5)

09280-00043

$36.65

22

.BOLT (6X20)

09139-06151

$4.00

23

.BEARING,CRANK THRUST (GREEN) | GREEN

12228-17E00-0D0

$9.50

24-1

.BEARING,CRANK THRUST (RED) | RED

12228-17E00-0A0

$11.38

24-2

.BEARING,CRANK THRUST (BLACK) | BLACK

12228-17E00-0B0

$9.69

24-3

.BEARING,CRANK THRUST (BLUE) | BLUE

12228-17E00-0C0

$9.69

24-4

.BEARING,CRANK THRUST (GREEN) | GREEN

12228-17E00-0D0

$9.50

24-5

.BEARING,CRANK THRUST (YELLOW | YELLOW

12228-17E00-0E0

$11.38

24-6

.BEARING,CRANK THRUST (WHITE) | WHITE

12228-17E00-0F0

$11.60

25

.PLUG,WATER JACKET

11318-35F00

$16.78

26

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.93

27

JET,OIL GALLERY (3.6)

11329-02F00

$6.70

28

JET,PISTON COOLING

11390-35F00

$24.30

29

O-RING (D:1.2,ID:4)

09280-04004

$1.91

30

BOLT (6X12)

09106-06075

$2.48

31

PLUG (OD:26)

09241-26004

$8.24

32

PLUG This part replaces 09246-05006.

09246-04009

$4.25

33

PLUG (L:12)

09248-12004

$7.95

34

PLUG (16X12)

09248-16013

$4.82

35

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

36

GASKET (16X22X2)

09168-16002

$1.91

37

O-RING (D:1.9,ID:7.8)

09280-08012

$3.68

38

JET (#140)

09493-28012

$16.87

39

.LENS,OIL LEVEL CHECK

11971-33210

$18.20

40

.CIRCLIP

08331-4130A

$2.70

41

COVER,BREATHER

11371-01H00

Unavailable

42

.GASKET,BREATHER COVER

11484-01H00

$5.95

43

VALVE ASSY,BREATHER REED

13150-01H01

$69.90

44

COVER,BREATHER REED VALVE

11372-01H00

Unavailable

45

BOLT

01547-0616A

$2.03

46

BOLT

01547-0630A

$2.32

47

BOLT (10X215)

09103-10041-A05

$10.40

48

BOLT (10X205)

09103-10145

$17.09

49

NUT (M10)

09159-10115

$3.55

50

BOLT (10X45)

09106-10069

$4.24

51

BOLT (10X55)

09106-10070

$4.24

52

PLATE,CRANKCASE LWR

11322-01H00

$12.82

53

BOLT (6X10)

09103-06188

$2.90
