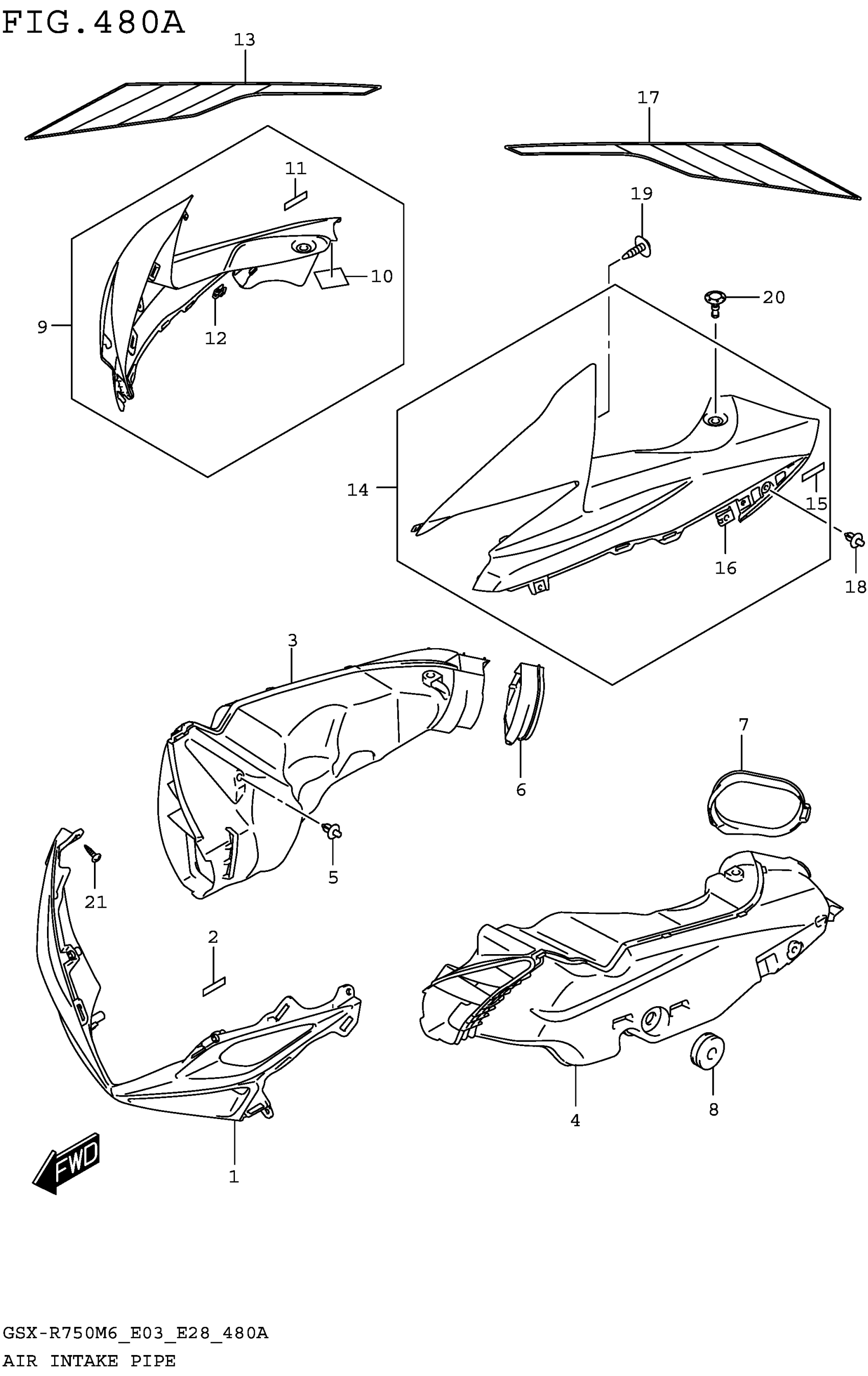

Suzuki GSX-R750M6 (2026) AIR INTAKE PIPE Diagram

#

Description
Price

1-1

COVER,INTAKE (BLUE) | BODY COLOR:CFR

94671-14J10-YKY

Unavailable

1-2

COVER,INTAKE (RED) | BODY COLOR:BNR

94671-14J10-YYG

$181.08

2

TAPE (6X25X0.13)

94443-06G00

$3.25

3

PIPE,AIR INTAKE,R

94420-14J10

$83.64

4

PIPE,AIR INTAKE,L

94430-14J10

$80.91

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

6

MOLDING,AIR INTAKE,R

94423-14J00

$14.34

7

MOLDING,AIR INTAKE,L

94433-14J00

$14.34

8

CUSHION (8X26X7)

09320-08028

$3.04

9

COVER,INTAKE,R (BLACK)

94670-14JB0-YVB

Unavailable

10

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$3.03

11

TAPE (6X25X0.13)

94443-06G00

$3.25

12

NUT (M5)

09148-05052

$3.37

13-1

TAPE,INTAKE COVER,R (RED,BLUE | BLACK) BODY COLOR:BNR

68275-14J70-DD5

Unavailable

13-2

TAPE,INTAKE COVER,R (BLUE,BLA | K) BODY COLOR:CFR

68275-14J70-DD7

Unavailable

14

COVER,INTAKE,L (BLACK)

94680-14JB0-YVB

Unavailable

15

TAPE (6X25X0.13)

94443-06G00

$3.25

16

NUT (M5)

09148-05052

$3.37

17-1

TAPE,INTAKE COVER,L (RED,BLUE | BLACK) BODY COLOR:BNR

68285-14J70-DD5

Unavailable

17-2

TAPE,INTAKE COVER,L (BLUE,BLA | K) BODY COLOR:CFR

68285-14J70-DD7

Unavailable

18

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

19

SCREW (5X12)

09132-05050

$1.92

20

CLIP

94479-35F00

$5.62

21

SCREW

03541-0512A

$1.49
