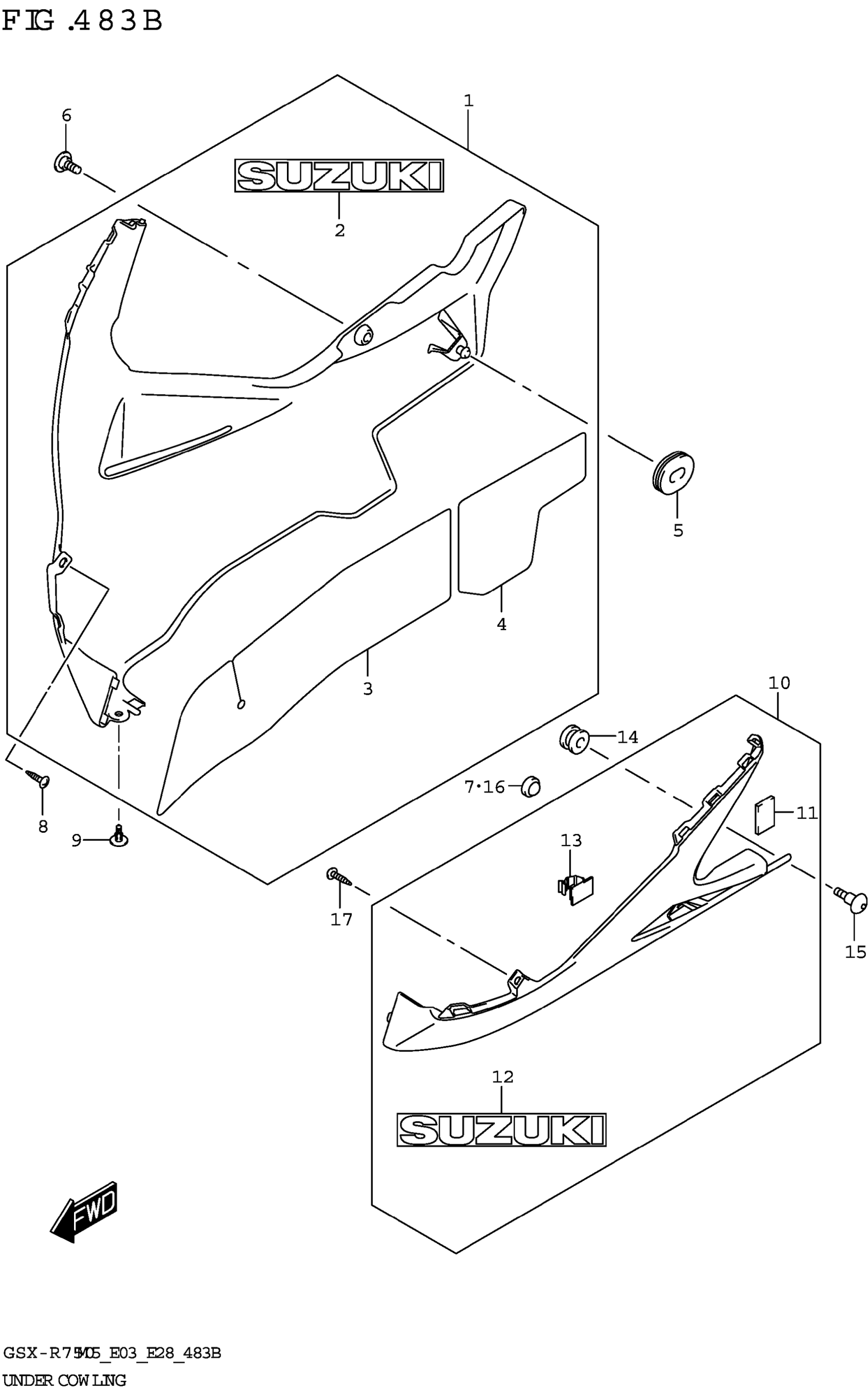

Suzuki GSX-R750M5 (2025) UNDER COWLING (GSX-R750Z) Diagram

#

Description
Price

1

COWLING,UNDER,R (WHITE)

94470-14J00-6KX

$261.94

2

.EMBLEM,SUZUKI (BLACK)

68181-33C20-019

$26.75

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$16.50

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$15.23

5

CUSHION

94478-14J00

$5.92

6

SCREW,UNDER COWL,R (5X13)

94476-14J00

$4.49

7

CUSHION

09321-10018

$5.45

8

SCREW

03541-0512A

$1.49

9

CLIP

94479-35F00

$5.62

10

COWLING,UNDER,L (WHITE)

94480-14J01-6KX

$221.93

11

.CUSHION,BRACKET NO.1

47161-10FA1

$4.82

12

.EMBLEM,SUZUKI (BLACK)

68181-33C20-019

$26.75

13

.CLAMP

09403-14311

$5.33

14

CUSHION (9X18X9.5)

09320-09016

$1.97

15

SCREW (6X20)

09139-06190

$4.17

16

CUSHION

09321-10018

$5.45

17

SCREW

03541-0512A

$1.49
