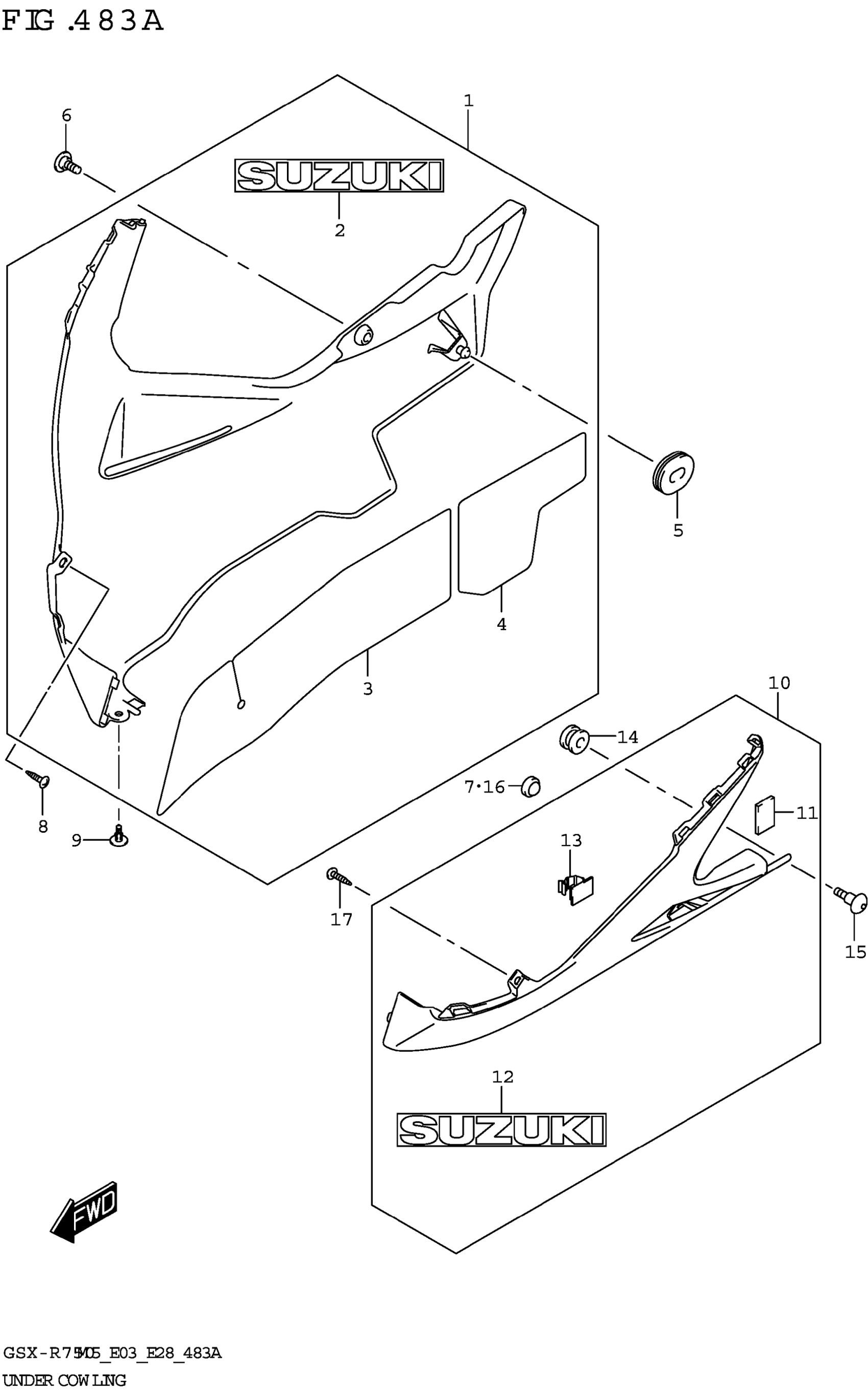

Suzuki GSX-R750M5 (2025) UNDER COWLING (GSX-R750) Diagram

#

Description
Price

1-1

COWLING,UNDER,R (WHITE) | BODY COLOR:B5N

94470-14J00-6KX

$245.79

1-2

COWLING,UNDER,R (GRAY) | BODY COLOR:BTH

94470-14J00-YUD

$477.08

2-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:B5N

68181-33C20-019

$25.58

2-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:BTH

68181-33C20-YES

$14.34

3

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

4

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

5

CUSHION

94478-14J00

$5.66

6

SCREW,UNDER COWL,R (5X13)

94476-14J00

$4.29

7

CUSHION

09321-10018

$5.85

8

SCREW

03541-0512A

$1.41

9

CLIP

94479-35F00

$5.38

10-1

COWLING,UNDER,L (WHITE) | BODY COLOR:B5N

94480-14J01-6KX

$281.03

10-2

COWLING,UNDER,L (GRAY) | BODY COLOR:BTH

94480-14J01-YUD

$232.07

11

.CUSHION,BRACKET NO.1

47161-10FA1

$5.43

12-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:B5N

68181-33C20-019

$25.58

12-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:BTH

68181-33C20-YES

$14.34

13

.CLAMP

09403-14311

$5.05

14

CUSHION (9X18X9.5)

09320-09016

$2.01

15

SCREW (6X20)

09139-06190

$3.89

16

CUSHION

09321-10018

$5.85

17

SCREW

03541-0512A

$1.41
