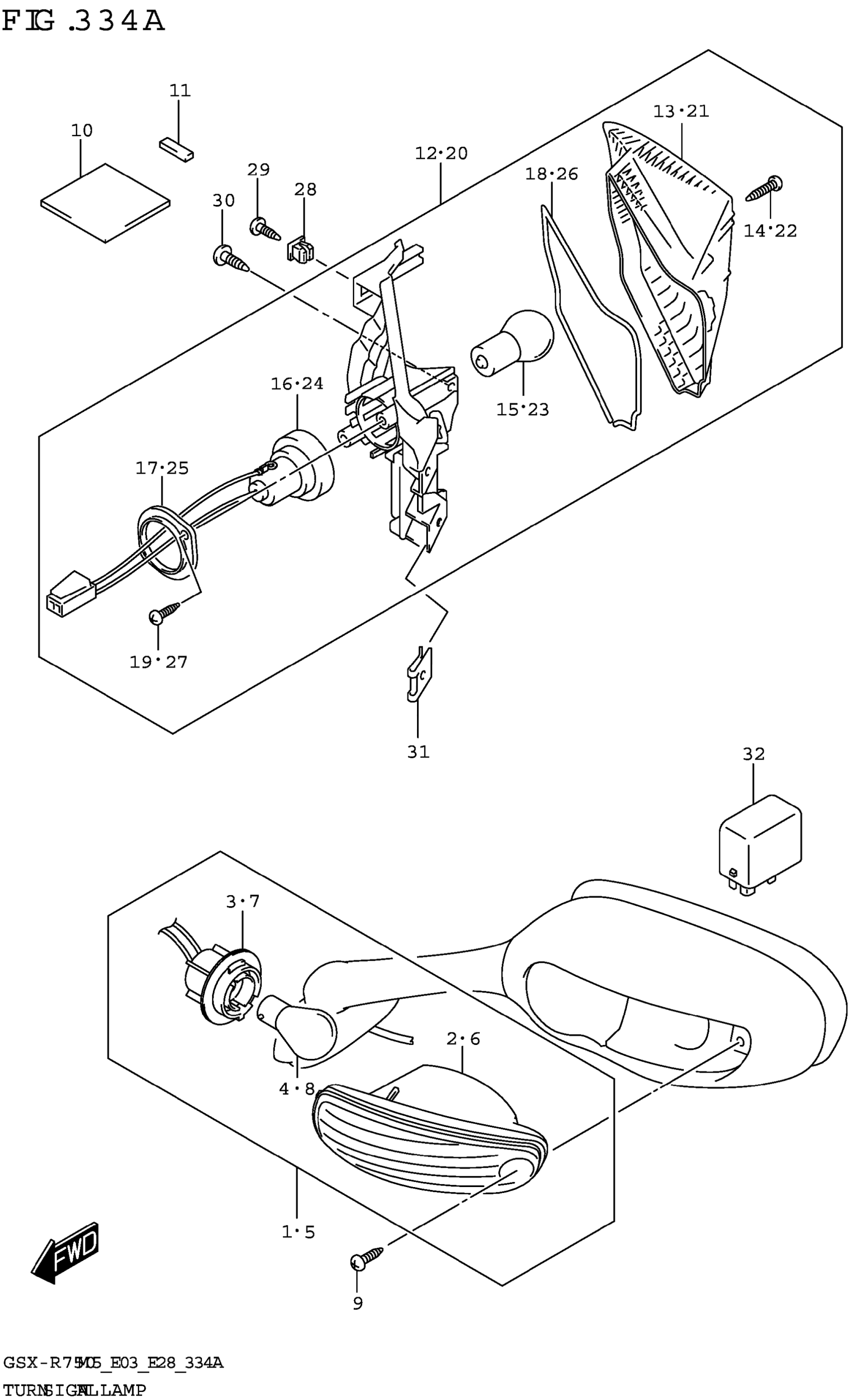

Suzuki GSX-R750M5 (2025) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FR TURN SIGNAL,R

35601-41G00

$51.81

2

.LAMP UNIT,R

35610-41G00

$50.15

3

.SOCKET,R

35618-10G50

$34.12

4

.BULB (12V21W)

09471-12186

$16.18

5

LAMP ASSY,FR TURN SIGNAL,L

35602-41G00

$51.81

6

.LAMP UNIT,L

35630-41G00

$34.90

7

.SOCKET,L

35638-10G50

$32.85

8

.BULB (12V21W)

09471-12186

$16.18

9

SCREW (4X20)

09132-04032

$1.98

10

PROTECTOR (50X50X5) This part replaces 33652-21G10.

33652-20C00

$2.80

11

TAPE,FR TURNSIGNAL (5X20X0.4)

94443-21H00

$4.47

12

LAMP ASSY,RR TURNSIGNAL,R

35603-47H00

$121.77

13

.LENS,R

35652-47H00

$34.03

14

.SCREW

03211-0416A

$1.43

15

.SCREW

03211-0412A

$0.73

16

.BULB (12V21W)

09471-12186

$16.18

17

.SOCKET & CORD,R

35658-41G00

$36.30

18

.PLATE,REAR COMB

35716-07A30

$11.18

19

.GASKET

35653-47H00

$12.20

20

LAMP ASSY,RR TURNSIGNAL,L

35604-47H00

$86.35

21

.LENS,L

35672-47H00

$34.03

22

.SCREW

03211-0416A

$1.43

23

.SCREW

03211-0412A

$0.73

24

.BULB (12V21W)

09471-12186

$16.18

25

.SOCKET & CORD,L

35678-41G00

$36.30

26

.PLATE,REAR COMB

35716-07A30

$11.18

27

.GASKET

35653-47H00

$12.20

28

NUT (M4)

09148-04021

$1.43

29

SCREW

03541-0412A

$1.37

30

SCREW

03511-0512A

$1.68

31

NUT (M5)

09148-05038

$1.97

32

RELAY ASSY,TURNSIGNAL LAMP

38610-03F01

$81.99
