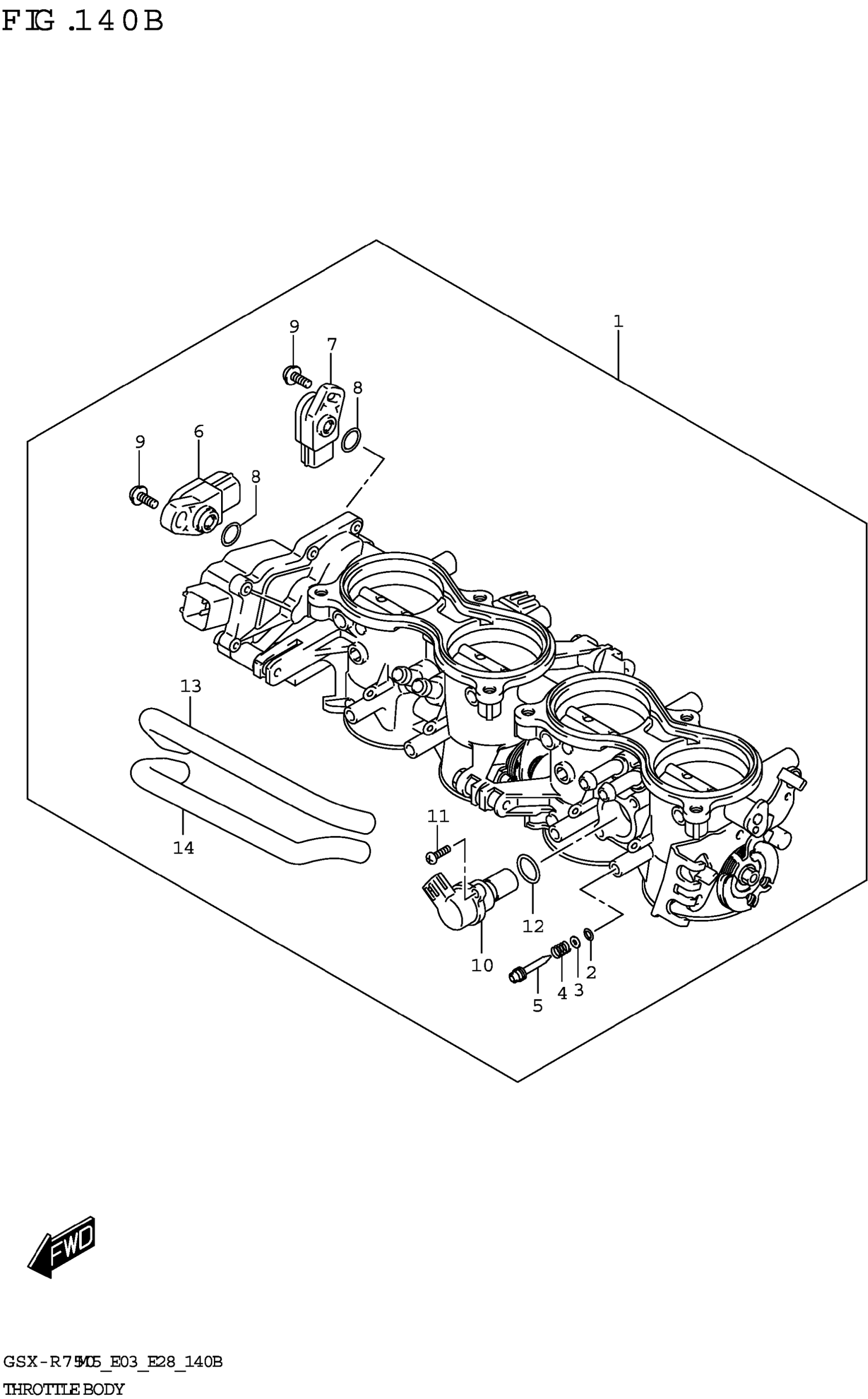

Suzuki GSX-R750M5 (2025) THROTTLE BODY (E33) Diagram

#

Description
Price

1

BODY ASSY,THROTTLE

13406-15J31

$1,440.65

2

O-RING

13295-29901

$4.34

3

WASHER

13606-47A00

$3.28

4

SPRING,THROTTLE SCREW

13268-48700

$4.34

5

SCREW

13269-33E00

$11.10

6

.SENSOR

13580-14J00

$151.08

7

.SENSOR

13580-14J10

$170.23

8

.O-RING

13575-29G01

$3.15

9

.SCREW

13605-02F00

$3.71

10

.MOTOR ASSY

18117-14J01

$392.00

11

.SCREW

13605-37H00

Unavailable

12

.O-RING

13679-37H00

$7.27

13

.HOSE

13698-14J01

$42.70

14

.HOSE

13698-14J11

$39.53
