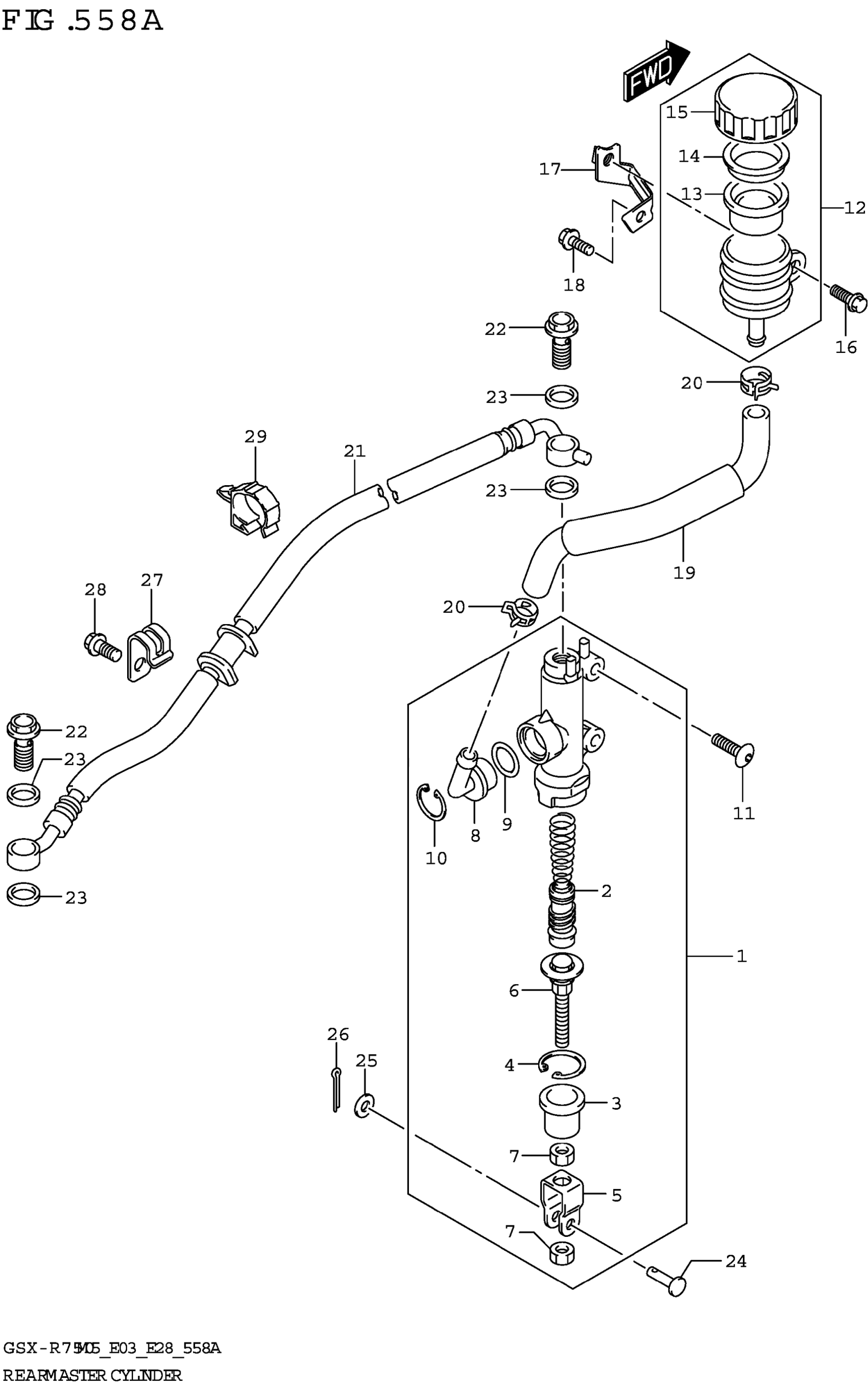

Suzuki GSX-R750M5 (2025) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-47H31

$247.57

2

.PISTON/CUP SET

69600-34810

$63.75

3

.BOOT

69691-04A00

$5.83

4

.CIRCLIP

69665-47H00

$5.65

5

.YOKE

69692-47H00

$15.75

6

.ROD,PUSH

69670-17K00

Unavailable

7

.NUT

69693-47H00

$2.80

8

.CONNECTOR

69672-00B20

$6.42

9

.O-RING

69686-34200

$2.80

10

.CIRCLIP

69674-00B20

$3.73

11

SCREW (6X20)

09139-06125

$2.80

12

TANK ASSY,RR RESERVOIR

69740-47H00

$90.32

13

.DIAPHRAGM

69667-00B20

$20.82

14

.PLATE

69668-00B20

$8.65

15

.CAP

69669-47H00

$9.70

16

BOLT

01547-0616A

$2.01

17

BRACKET,RR RESERVOIR TANK

69750-14J00

$13.30

18

BOLT

01547-0612A

$2.01

19

HOSE,RR RESERVOIR TANK

69730-14J00

$34.12

20

CLIP (ID:12)

09401-12404

$2.37

21

HOSE

69480-14J01

$100.05

22

UNION (10X1.25X22)

09360-10062

$5.81

23

WASHER (10X15X1.5)

09161-10009

$1.83

24

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.71

25

WASHER

08322-0106A

$1.83

26

PIN

04111-2015A

$1.22

27

CLAMP,RR BRAKE HOSE

69268-21H00

$8.73

28

BOLT

01547-0612A

$2.01

29

CLAMP

09403-17306

$2.64
