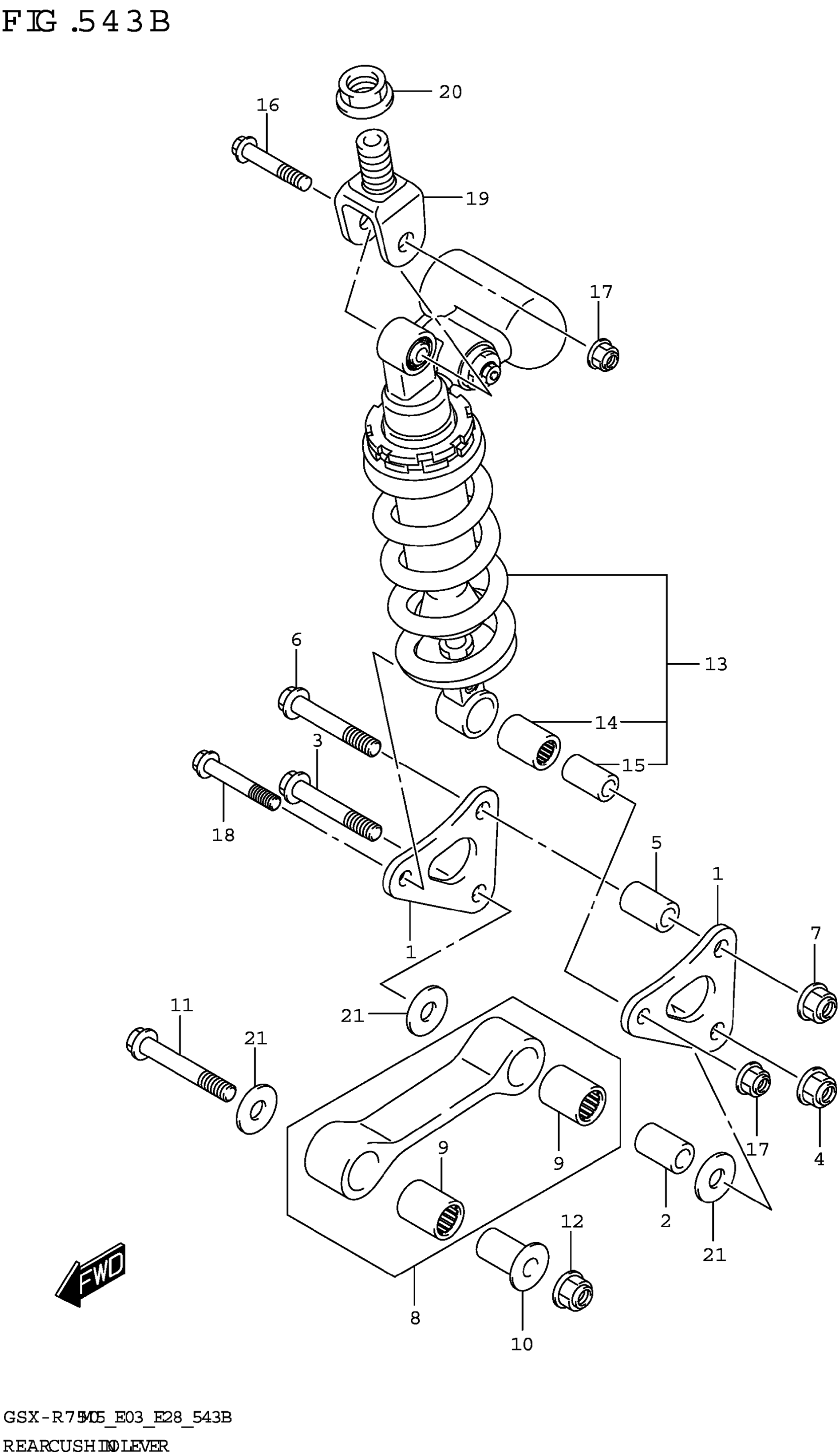

Suzuki GSX-R750M5 (2025) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER,RR CUSHION

62611-14J00

$26.62

2

SPACER,RR CUSHION LEVER FR (1 | X20X34)

62317-27C10

$16.76

3

BOLT,RR CUSHION LEVER

62658-47H00

$10.75

4

NUT

09159-12056

$7.37

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$21.03

6

BOLT,RR CUSHION LEVER

62658-47H00

$10.75

7

NUT

09159-12056

$7.37

8

ROD,RR CUSHION

62602-14861

$127.40

9

.BEARING

09263-20116

$31.15

10

SPACER,RR CUSHION ROD FR

62647-47H00

$35.28

11

BOLT,RR CUSHION ROD

62621-47H00

$14.27

12

NUT

09159-12056

$7.37

13

ABSORBER SET,REAR SHOCK (BLAC | )

62100-15871-019

$1,126.10

14

BEARING (17X24X32)

09263-17046

$41.45

15

SPACER,RR SHOCK ABS LWR

62317-47H00

$20.45

16

BOLT (10X55)

09103-10143

$4.52

17

NUT (M10)

09159-10115

$3.55

18

BOLT,RR SHOCK ABSORBER LWR (1 | X55)

62313-47H00

$11.95

19

BRACKET,RR SHOCK ABSORBER UPR

62993-47H00

$135.35

20

NUT,RR SHOCK ABS BRACKET

62994-47H00

$42.02

21

WASHER (12X34X1.0)

09160-12037

$3.83
