Description

Price

1-1

TANK ASSY,FUEL (WHITE) | BODY COLOR:B5N

44100-14JL0-YUH

$782.45

1-2

TANK ASSY,FUEL (WHITE) | BODY COLOR:B5N This part replaces 44100-14JP0-YUH.

44100-14JL0-YUH

$782.45

1-3

TANK ASSY,FUEL (GRAY) | BODY COLOR:BTH

44100-14JP0-YUD

$745.57

2-1

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:B5N

68111-14J00-019

$28.77

2-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:BTH

68111-14J00-YES

$24.60

3

CAP SET,FUEL TA This part replaces 44200-16871.

44200-16872

$155.42

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

SHIELD,FUEL TANK HEAT

44191-14J00

$92.70

6

SCREW,FUEL TANK RR BRACKET

44543-14J00

$7.05

7

FASTENER (33X25X2.6)

44572-13G00

$11.07

8

CUSHION (8X18X14)

09320-08071

$3.25

9

CUSHION,FUEL TANK COVER

44276-21H01

$5.80

10

CUSHION,FUEL TANK RR

44542-41G00

$7.69

11

BRACKET,FUEL TANK

44530-41G01

$40.55

12

RUBBER,FUEL TANK FR

44546-44H00

$13.35

13

CUSHION,FUEL TANK FRONT

44511-16G01

$4.11

14

SPACER,FUEL TANK FR

44512-16G00

$7.44

15

SCREW (6X25)

09139-06192

$3.23

16

WASHER This part replaces 09160-06012.

09160-06054

$1.62

17

BOLT (6X110)

09106-06119

$5.76

18

SPACER,FUEL TANK RR

44561-18G00

$16.96

19

HOSE,FUEL TANK WATER DRAIN

44423-14J01

$20.78

20

STAY,FUEL TANK

44574-35F00

$15.16

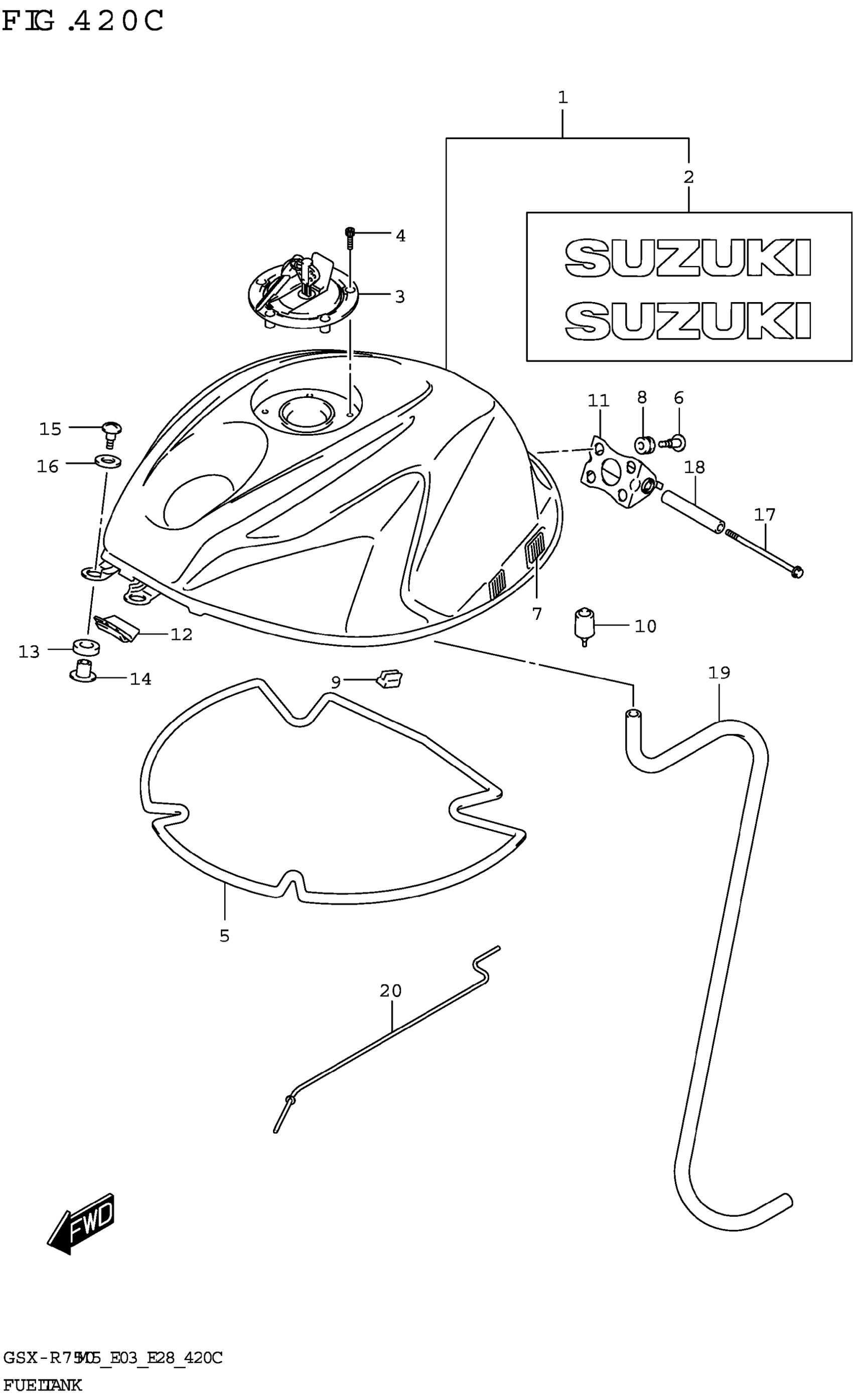

Suzuki GSX-R750M5 (2025) FUEL TANK (GSX-R750:E33) Diagram
