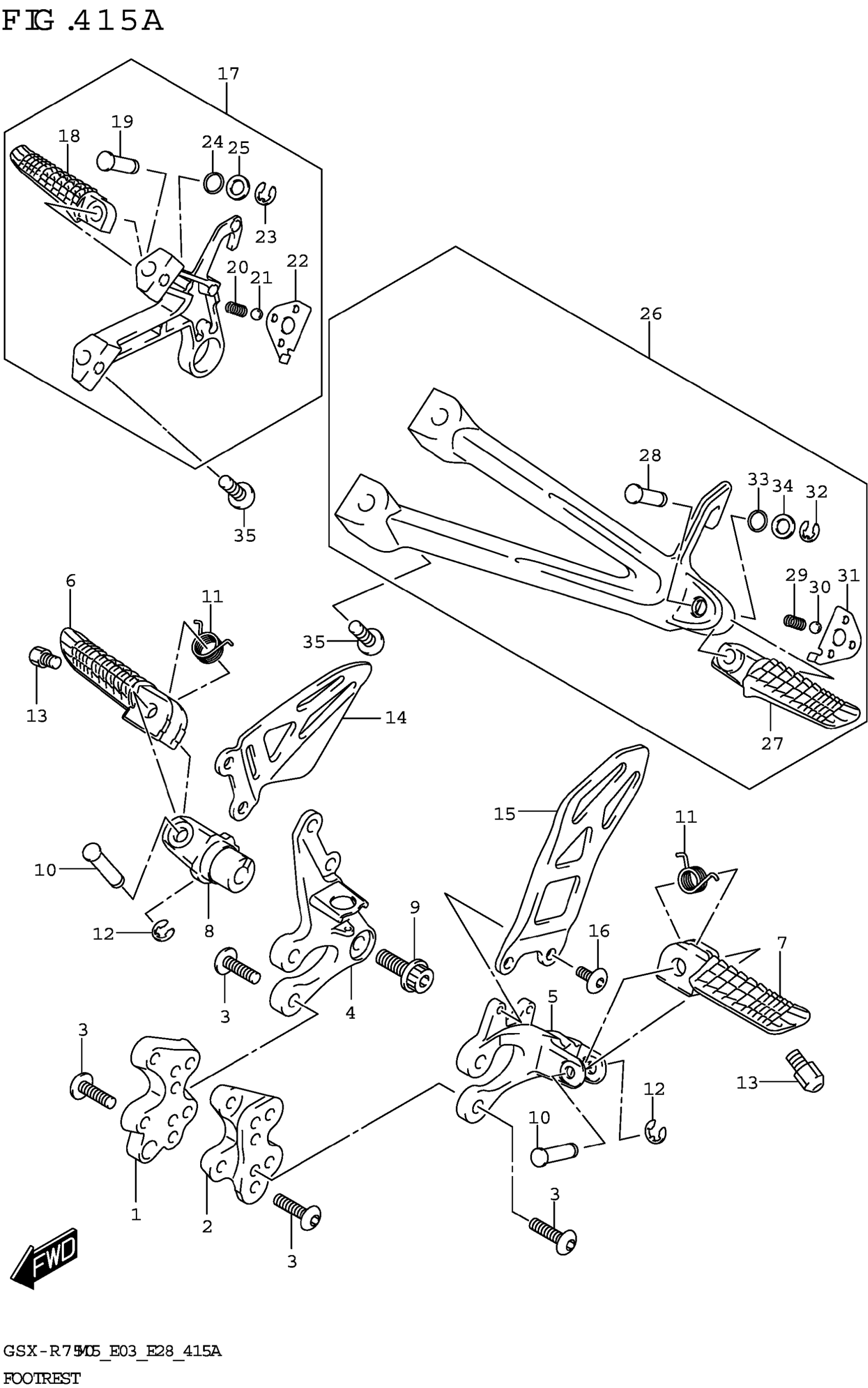

Suzuki GSX-R750M5 (2025) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST NO.1,R

43541-14J10

$39.58

2

BRACKET,FR FOOTREST NO.1,L

43551-14J10

$39.58

3

BOLT (8X23)

09106-08186

$3.42

4

BRACKET,FR FOOTREST NO.2,R

43511-14J10

$91.56

5

BRACKET,FR FOOTREST NO.2,L

43521-47H20

$87.37

6

BAR,FRONT FOOTREST,R

43516-37H10

$52.08

7

BAR,FRONT FOOTREST,L

43526-37H10

$52.08

8

HOLDER,FOOTREST

43531-41G20

$91.90

9

BOLT (10X28)

09106-10064

$4.90

10

PIN

09208-08018

$2.79

11

SPRING,FRONT FOOTREST

43581-47H00

$3.33

12

E-RING

08332-1106A

$1.49

13

BOLT,BANK SENSOR

43576-07D10

$7.46

14

GUARD,FR FOOTREST,R

43571-47H30

$77.78

15

GUARD,FR FOOTREST,L

43576-47H40

$81.28

16

SCREW,FOOTREST GUARD,L

43577-35F10

$3.98

17

FOOTREST ASSY,PILLION,R

43600-14J30

$196.85

18

BAR,PILLION FOOTREST,R

43611-37H30

$52.42

19

.PIN

09208-08020

$3.23

20

SPRING

09440-05003

$1.49

21

BALL

06111-07004

$1.49

22

.PLATE,PILLION FOOTREST,R

43816-47H00

$7.53

23

E-RING

08332-1106A

$1.49

24

.O-RING (D:2.4,ID:6.9)

09280-08013

$2.38

25

WASHER This part replaces 09160-08091.

09160-08082

$1.61

26

FOOTREST ASSY,PILLION,L

43700-14J30

$192.15

27

BAR,PILLION FOOTREST,L

43621-37H30

$55.75

28

.PIN

09208-08020

$3.23

29

SPRING

09440-05003

$1.49

30

BALL

06111-07004

$1.49

31

.PLATE,PILLION FOOTREST,L

43826-47H00

$7.27

32

E-RING

08332-1106A

$1.49

33

.O-RING (D:2.4,ID:6.9)

09280-08013

$2.38

34

WASHER This part replaces 09160-08091.

09160-08082

$1.61

35

BOLT (8X23)

09106-08186

$3.42
