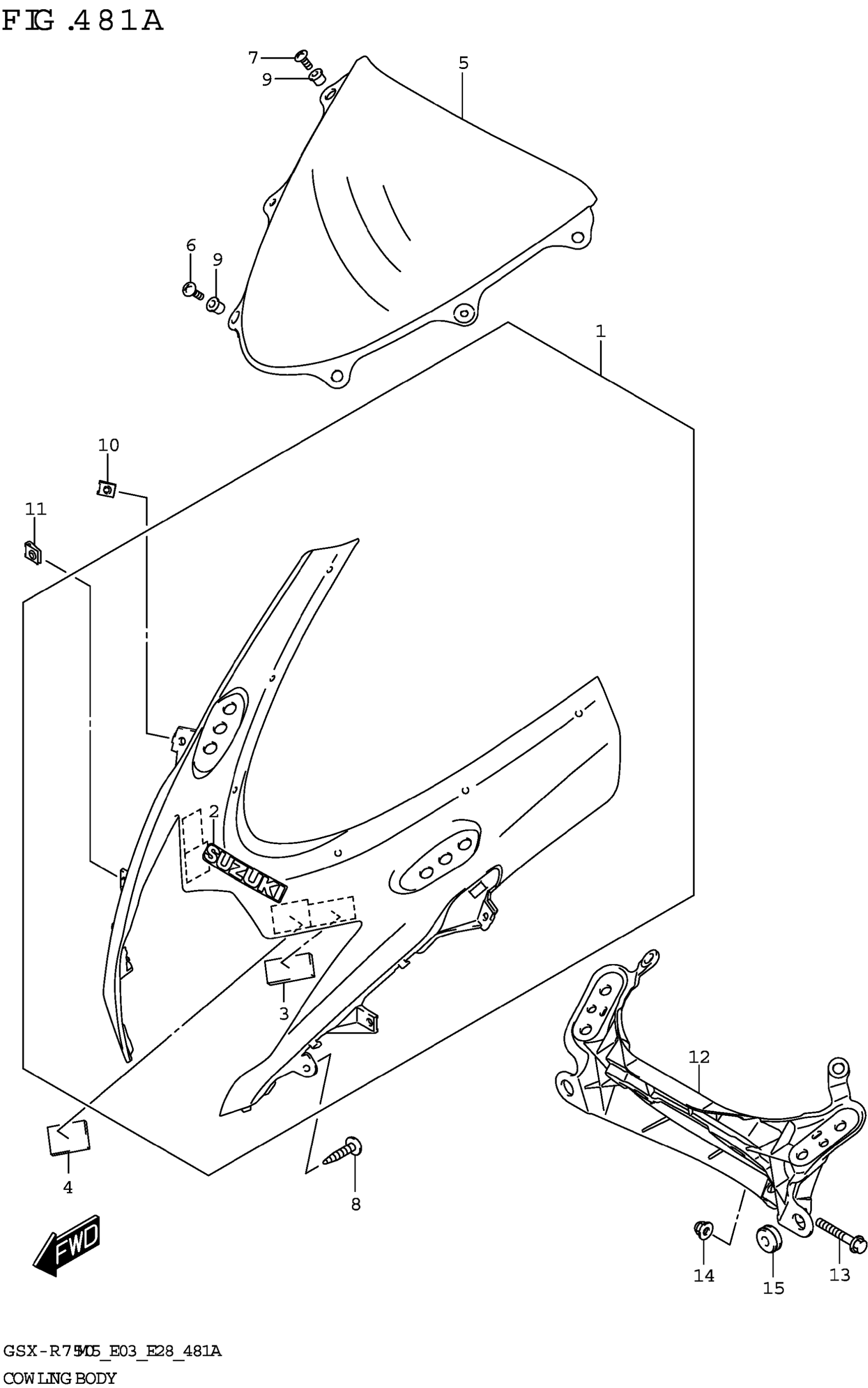

Suzuki GSX-R750M5 (2025) COWLING BODY (GSX-R750) Diagram

Description

Price

1-1

COWLING,BODY (BLUE) | BODY COLOR:B5N

94410-14J12-YUA

$135.10

1-2

.COWLING,BODY (BLACK) | BODY COLOR:BTH

94410-14J12-ATX

$178.07

2-1

.EMBLEM,"SUZUKI" | BODY COLOR:B5N

68641-19F01-CN1

$5.82

2-2

.EMBLEM,SUZUKI (SILVER) | BODY COLOR:BTH

68641-19F01-YES

$8.09

.CUSHION,BODY COWL (20X40X7)

92146-14J00

$4.60

FASTENER (25X33X2.6)

44572-02F01

$10.13

WINDSCREEN

94611-14J00

$97.43

SCREW (5X18)

09125-05133

$2.20

SCREW (5X15)

09125-05134

$2.27

SCREW

03541-0516A

$1.37

NUT (M5)

09159-05019

$6.44

NUT (M5)

09148-05052

$3.04

NUT (M5)

09148-05047

$2.02

BRACE,COWLING

94511-14J00

$255.27

BOLT (8X45)

09103-08207

$2.59

NUT

08313-2008A

$2.50

CUSHION (8.5X23X9.5)

09320-08518

$2.62
