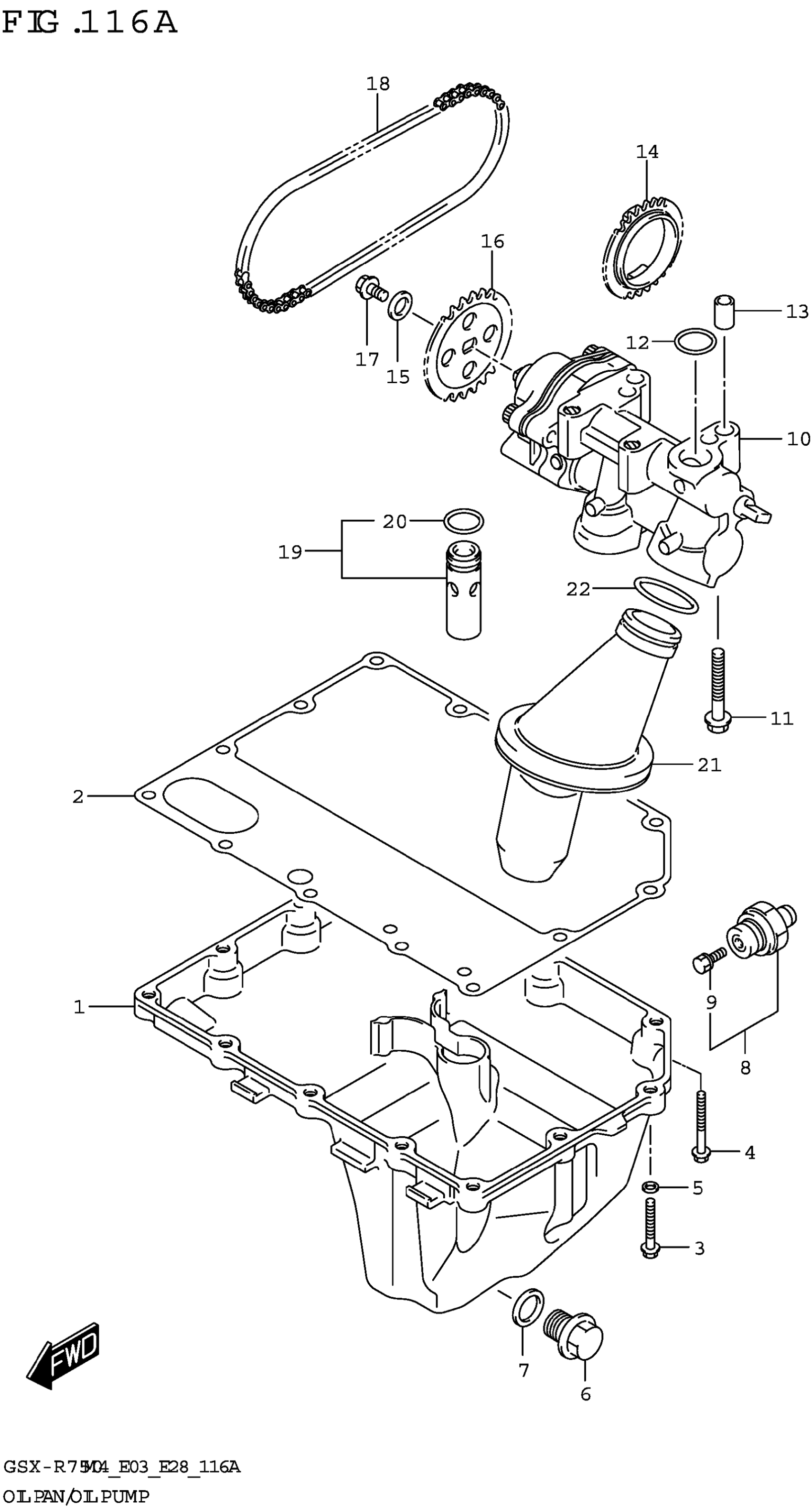

Suzuki GSX-R750M4 (2024) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN,OIL

11511-01H00

$197.39

2

.GASKET,OIL PAN

11489-01H01

$14.12

3

BOLT

01547-0625A

$2.01

4

BOLT (6X30)

09103-06204

$2.80

5

GASKET (5.8X13X1.2)

09168-06023

$2.01

6

PLUG (14X20) | OIL DRAIN

09247-14036

$5.58

7

GASKET (13.8X18.8X4.8) | OIL DRAIN

09168-14002

$2.83

8

SWITCH ASSY,OIL PRESSURE

37820-33D11

$27.58

9

.BOLT,OIL PRESSURE SWITCH

37822-33D00

$4.92

10

PUMP ASSY,ENG OIL

16400-01H00

$201.20

11

BOLT

01547-0635A

$2.31

12

O-RING (D:2.4,ID:15.8)

09280-15007

$1.71

13

PIN (8.5X18X2.3)

04211-09149

$1.64

14

SPROCKET,OIL PUMP DRIVE (NT:2 | )

16321-01H00

$86.77

15

SHIM (10X18X0.5)

09181-10158

$1.97

16

SPROCKET,OIL PUMP DRIVEN (NT: | 8)

16331-01H00

$28.17

17

BOLT (6X12)

09103-06285

$1.97

18

CHAIN ASSY,OIL PUMP DRIVE

16310-01H00

$25.96

19

VALVE ASSY,OIL RELIEF (7K)

16440-24F00

$45.80

20

.O-RING (D:1.9,ID:13)

09280-13004

$2.19

21

STRAINER, ENGINE OIL NO.1

16520-01H01

$27.23

22

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.01
