Description

Price

1

HANDLEBAR,R

56111-14J00

$257.20

2

HANDLEBAR,L

56151-14J00

$190.59

3

CAP,HANDLEBAR

56131-29G00

$4.02

4

BOLT (8X32)

09106-08185

$2.80

5

BALANCER SET,HANDLEBAR

56200-41823

$29.78

6

.SCREW

02122-0640B

$3.45

7

.WASHER (6.5X16X4)

09160-06131

$2.62

8

.EXPANDER,HANDLE BALANCER

56272-10G01

$4.64

9

.NUT,HANDLE BALANCER

56273-10G10

$8.27

10

MIRROR ASSY,RR VIEW,R

56500-47H01

$163.29

11

.CAP,R

56515-47H01

$5.66

12

MIRROR ASSY,RR VIEW,L

56600-47H01

$163.29

13

.CAP,L

56615-47H01

$5.66

14

CUSHION,RR VIEW MIRRROR,R

94575-14J00

$4.77

15

NUT,RR VIEW MIRROR

56619-41G01

$8.91

16

CABLE ASSY,CLUTCH

58200-14J00

$33.54

17

GUIDE,CABLE

58620-14J00

$18.22

18

BOLT

01547-0612A

$2.09

19

CLAMP (L:170)

09407-17403

$4.79

20

CABLE ASSY,THROTTLE NO.1

58300-14J01

$60.38

21

CABLE ASSY,THROTTLE NO.2

58300-14J11

$51.15

22

SCREW (5X10)

09125-05042

$2.04

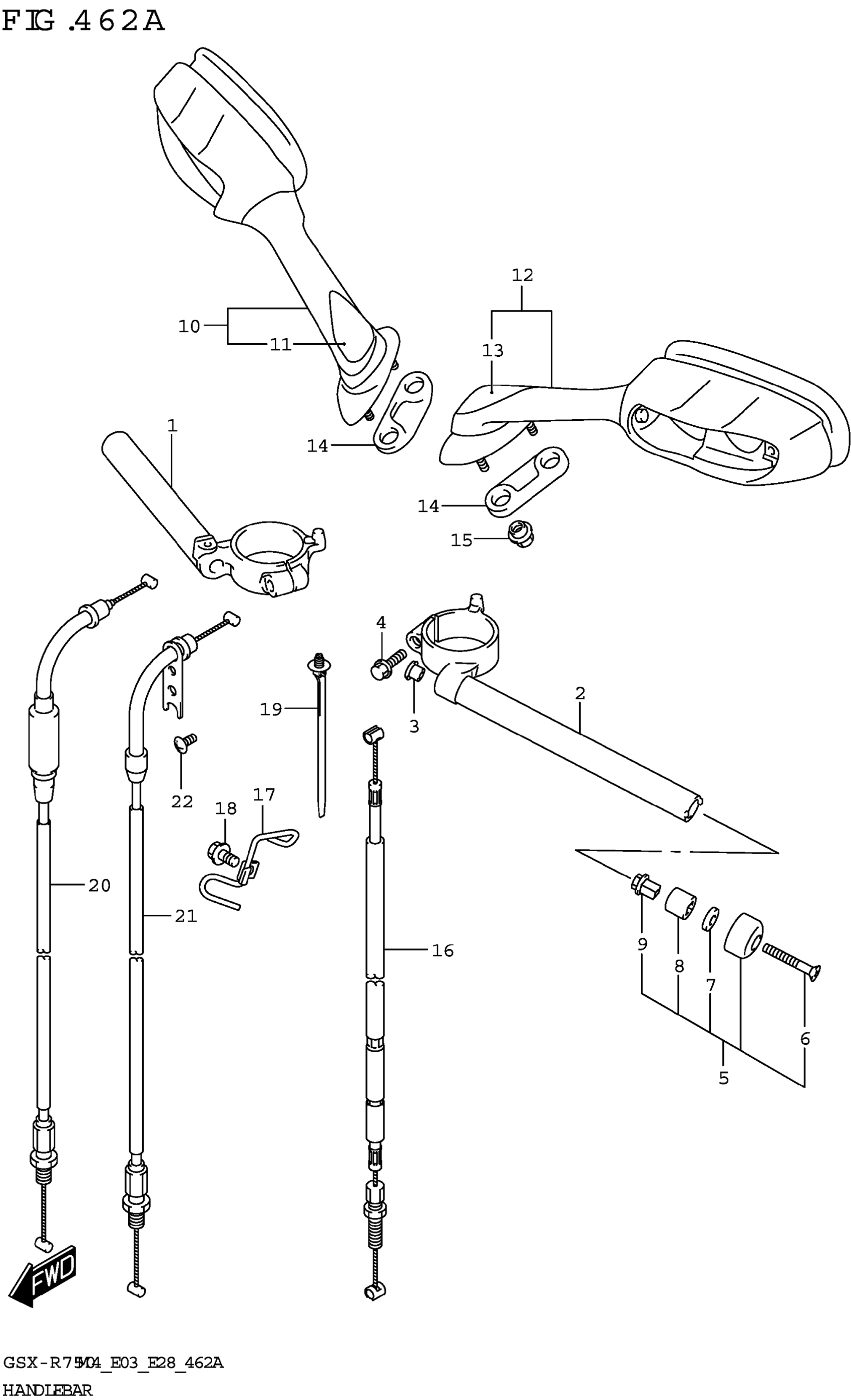

Suzuki GSX-R750M4 (2024) HANDLEBAR Diagram
