Description

Price

1

GRIP,THROTTLE

57110-21H02

$18.61

2

LEVER ASSY,BRAKE

57300-29G40

$83.38

3

.BOLT,LEVER PIVOT

57431-29G00

$8.52

4

.NUT

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE

57460-14J02

$35.21

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

7

GRIP,L

57211-21H01

$10.18

8

LEVER ASSY,CLUTCH

57500-41G42

$64.23

9

.LEVER,CLUTCH

57621-41G10

$31.29

10

.BOLT,CLUTCH LEVER PIVOT

57431-41G00

$10.96

11

.COLLAR

57532-41G00

$18.07

12

NUT

08319-3106A

$2.01

13

.SWITCH,CLUTCH

57560-41G20

$20.93

14

.SCREW,CLUTCH SWITCH

57562-41G21

$7.63

15

..BOLT

01547-0620B

$2.43

16

.NUT,ADJUSTER

57641-33E21

$46.38

17

.SPRING,ADJUST

57644-33E00

$8.54

18

.SCREW,SPRING

57642-33E00

$4.53

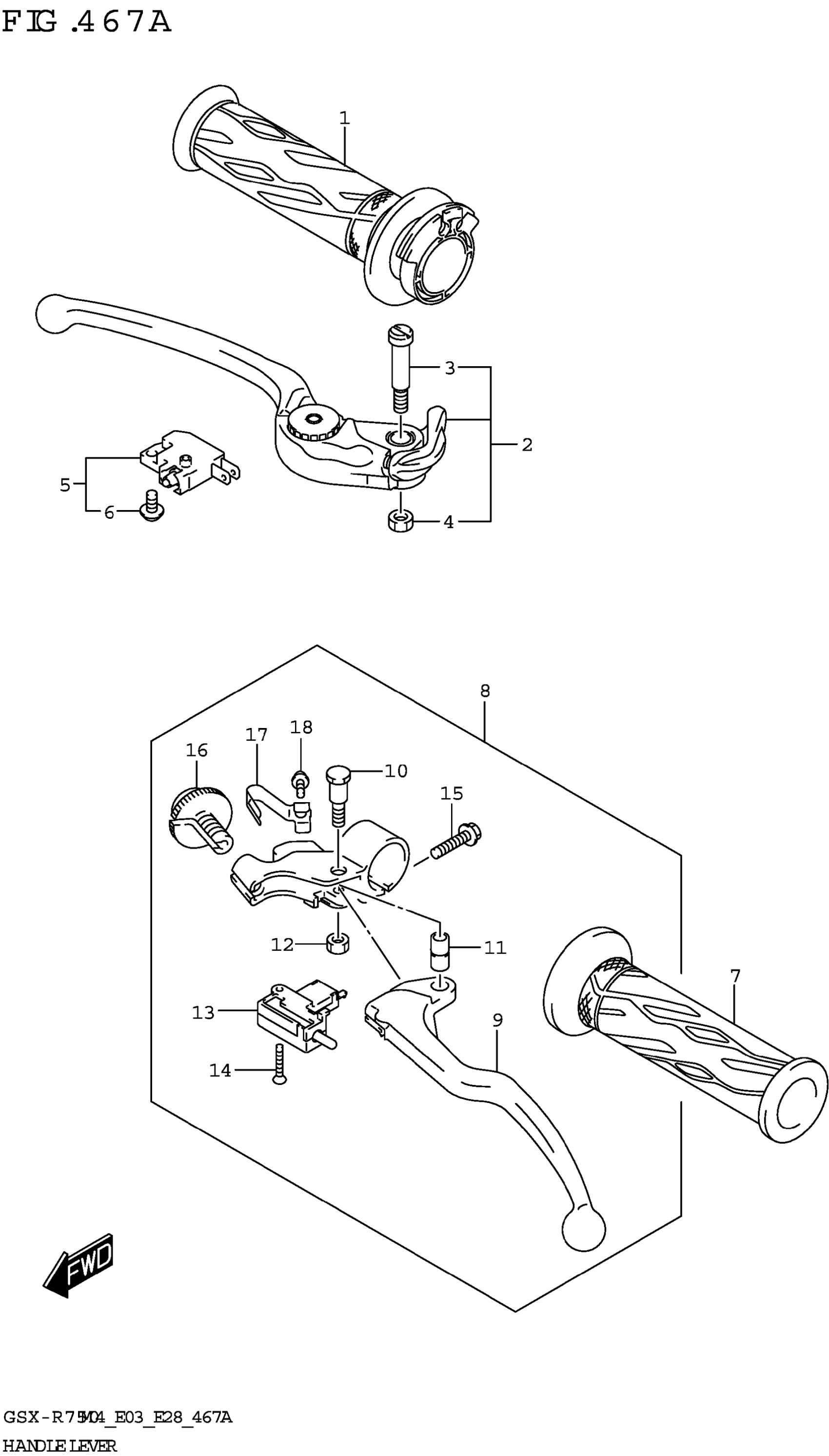

Suzuki GSX-R750M4 (2024) HANDLE LEVER Diagram
