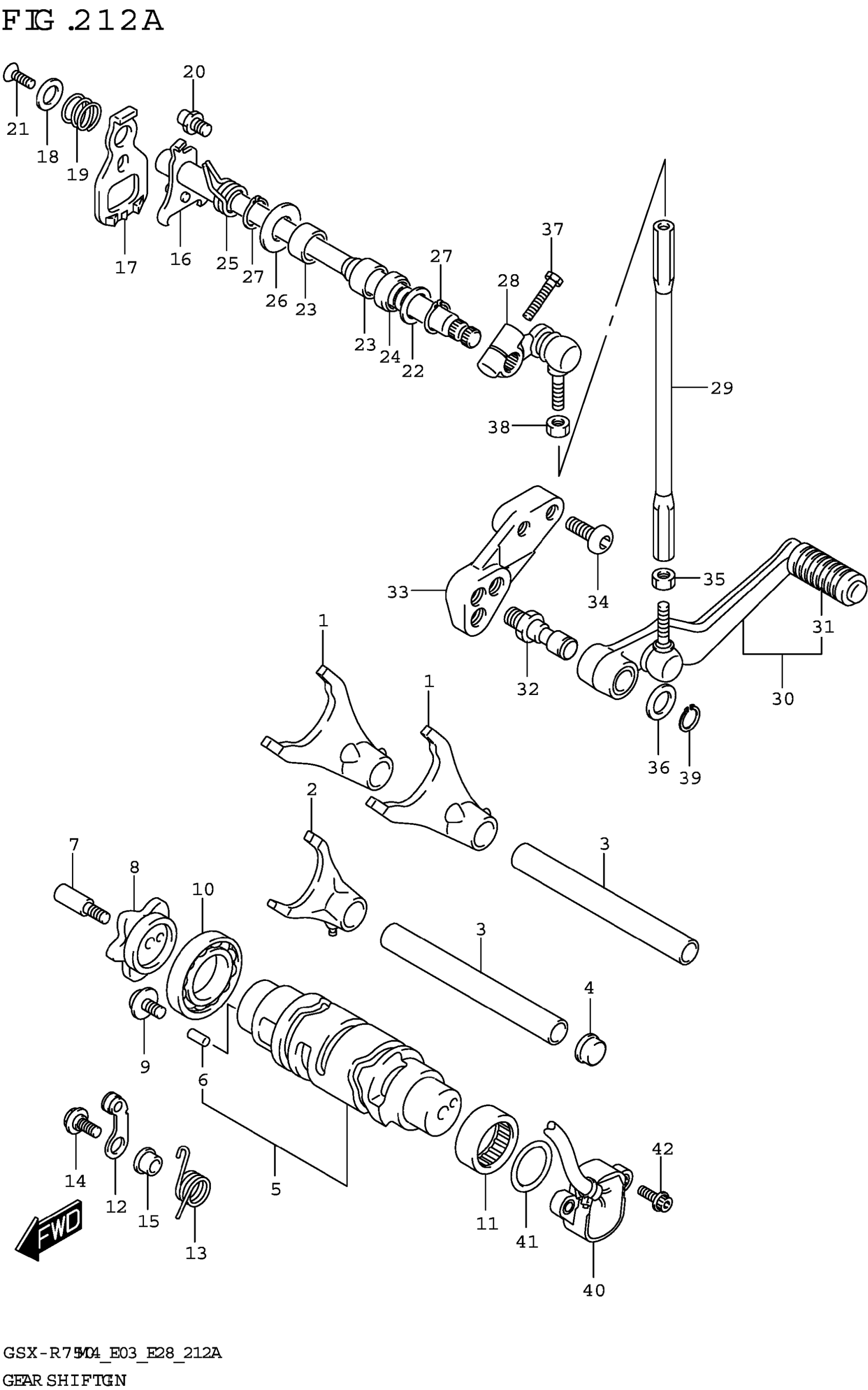

Suzuki GSX-R750M4 (2024) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT NO.1

25211-01H01

$119.43

2

FORK,GEAR SHIFT NO.3

25231-01H02

$86.33

3

SHAFT,GEAR SHIFT FORK,NO.1

25411-35F00

$33.02

4

PLUG,GEAR SHIFT FORK SHAFT

25712-37H00

$8.55

5

CAM,GEAR SHIFT

25310-01H00

$285.47

6

PIN (4X13.8)

04221-04089

$1.10

7

BOLT,GEAR SHIFT CAM PLATE

25312-42F01

$7.28

8

PLATE,GEAR SHIFT CAM

25381-13E30

$63.98

9

SCREW (6X12)

09136-06147

$3.48

10

BEARING (25X47X8)

09262-25006

$23.05

11

BEARING (25X32X12)

09263-25018

$19.30

12

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

13

SPRING,GEAR SHIFT CAM STOPPER

25355-01H00

$5.75

14

BOLT,SHIFT CAM STOPPER ARM

25357-01H00

$5.43

15

SPACER,CAM STOPPER

25358-01H00

$12.35

16

SHAFT,GEAR SHIFT

25510-01H00

$131.65

17

PLATE,GEAR SHIFT CAM DRIVE

25512-06G20

$22.32

18

WASHER,GEAR SHIFT SHAFT END

25519-01H00

$6.75

19

SPRING,GEAR SHIFT PLATE RETUR

25518-01H00

Unavailable

20

STOPPER,GEAR SHIFT ARM

25671-01011

$4.09

21

SCREW (6X16)

09126-06014

$2.07

22

WASHER (14X29X0.8)

09160-14016

$1.91

23

BEARING (14X20X12)

09263-14027

$12.21

24

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.04

25

SPRING

09444-20001

$4.80

26

SHIM (14X24X1)

09181-14195

$3.30

27

CIRCLIP

08331-3114A

$1.89

28

ARM,GEAR SHIFT LINK

25520-01H11

$46.09

29

ROD,GEAR SHIFT LINK

25525-01H10

$29.27

30

LEVER ASSY,GEAR SHIFT

25600-14J11

$77.84

31

.RUBBER,GEAR SHIFT PEDAL

25652-20C00

$4.98

32

SHAFT,GEAR SHIFT LEVER

25617-03F10

$11.29

33

BRACKET,GEAR SHIFT LEVER

25681-14J00

$81.72

34

BOLT (8X20)

09106-08167

$3.15

35

NUT

09140-06025

$1.84

36

WASHER (12.5X20X1.0)

09160-12011

$1.48

37

BOLT

01500-0625A

$1.77

38

NUT

09140-06020

$1.67

39

CIRCLIP

08331-3112A

$1.77

40

SENSOR ASSY,GEAR POSITION

37730-14J01

$67.60

41

O-RING (D:2.4,ID:26.2)

09280-26005

$2.31

42

BOLT (5X16)

09106-05023

$2.80
