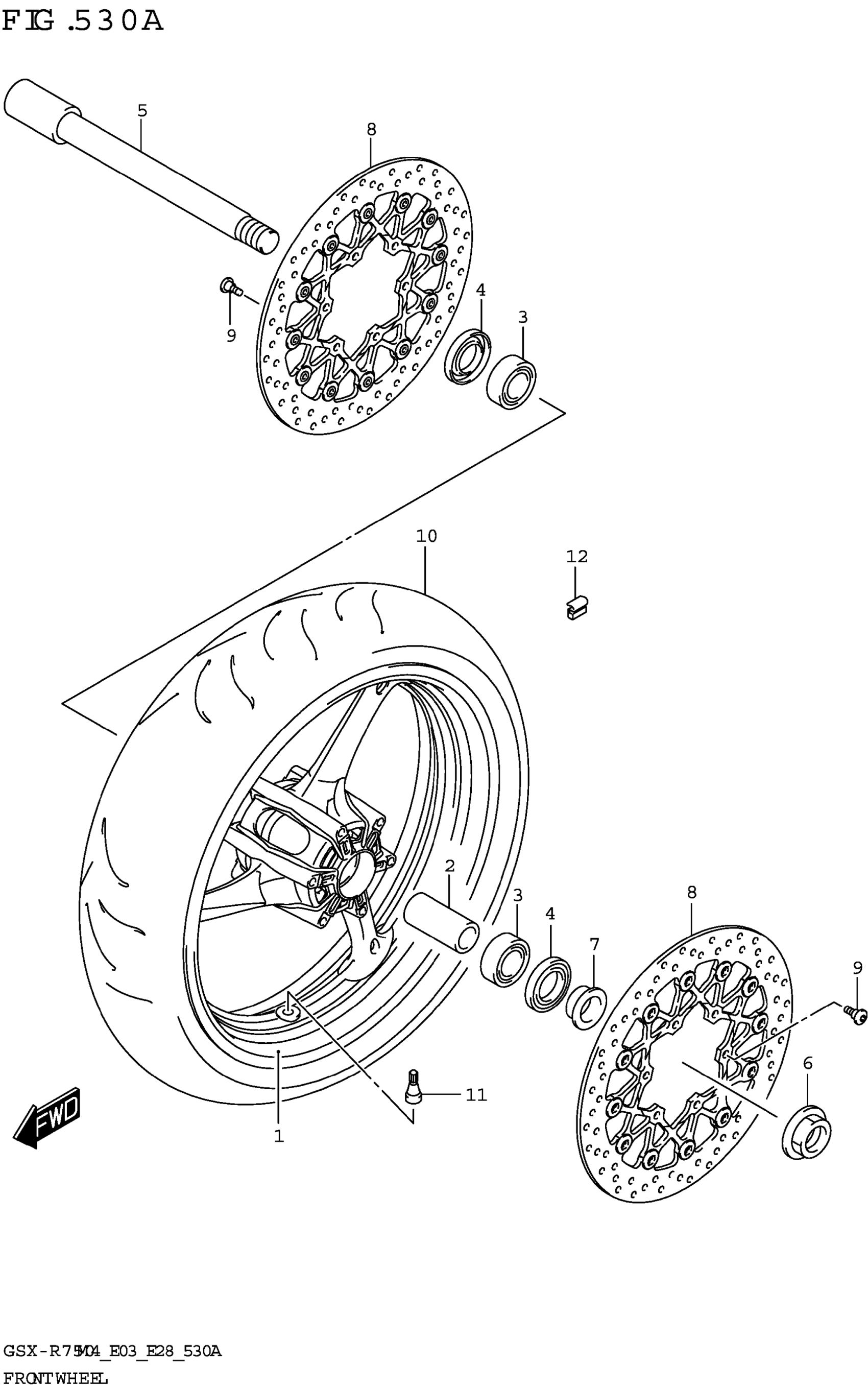

Suzuki GSX-R750M4 (2024) FRONT WHEEL (GSX-R750Z) Diagram

#

Description
Price

1

WHEEL,FR (17M/CXMT3.50,BLUE) | )

54111-14J00-YLY

$597.70

2

SPACER,FR HUB BEARING

54731-14J00

$21.58

3

BEARING

09262-22049

$43.81

4

SEAL,OIL

09283-28028

$9.13

5

AXLE,FR

54711-14J00

$143.18

6

NUT,RR SHOCK ABS BRACKET

62994-47H00

$42.02

7

SPACER,FR AXLE,L

54751-14J00

$18.33

8

DISC,FR BRAKE

59210-37H01

$477.18

9

BOLT (6X21)

09106-06124

$3.42

10

TIRE,FRONT (120/70ZR17M/C, 58 | )

55110-15J00

$509.50

11

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

12-1

BALANCER,WHEEL (10G)

55411-22H00

$8.60

12-2

BALANCER,WHEEL (20G)

55412-22H00

$10.07

12-3

BALANCER,WHEEL (30G)

55413-22H00

$11.47
