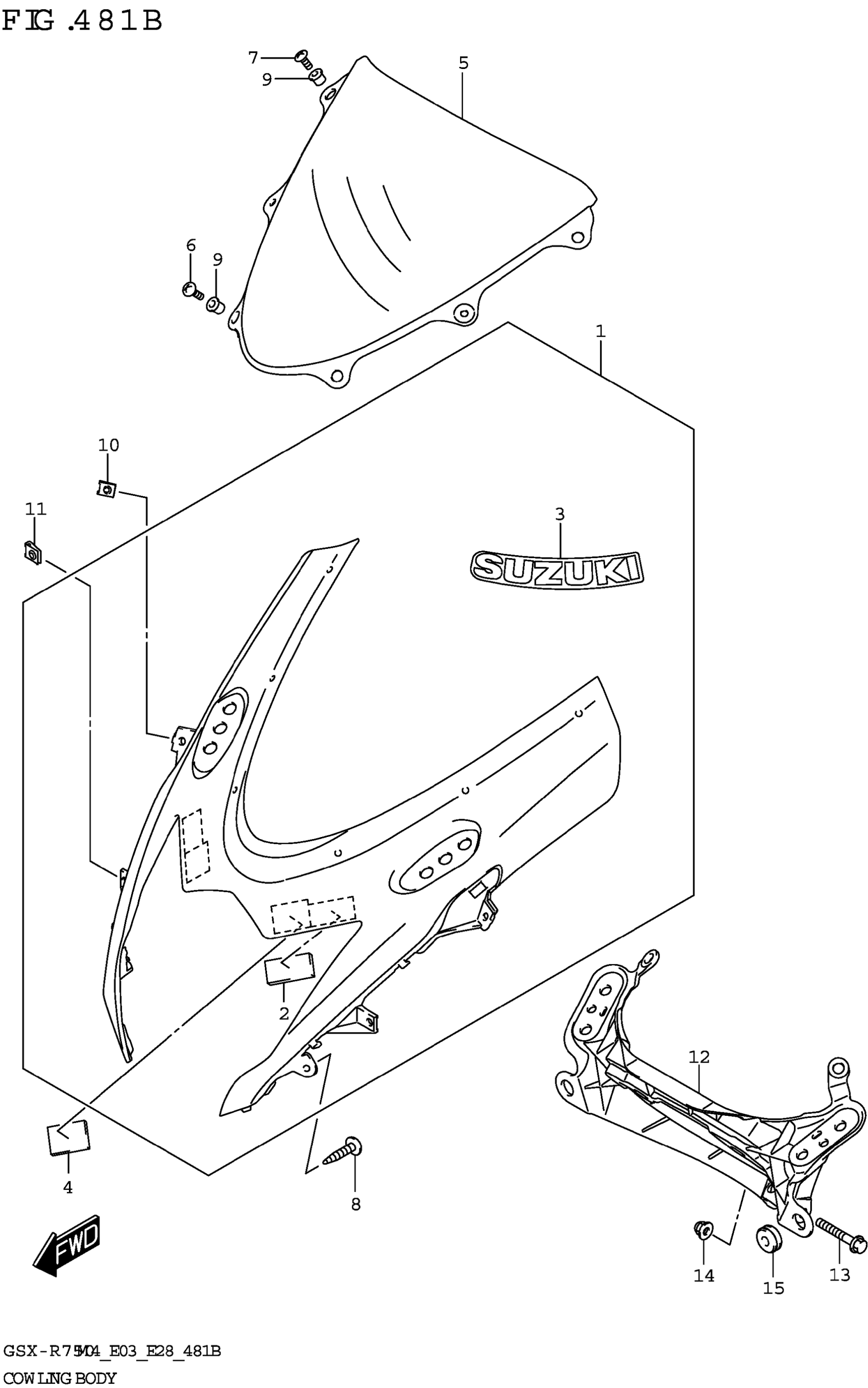

Suzuki GSX-R750M4 (2024) COWLING BODY (GSX-R750Z) Diagram

#

Description
Price

1

COWLING,BODY (WHITE)

94410-14J12-YUH

$228.30

2

.CUSHION,BODY COWL (20X40X7)

92146-14J00

$4.80

3

.EMBLEM,SUZUKI (BLACK)

68641-19F01-019

$7.92

4

FASTENER (25X33X2.6)

44572-02F01

$10.59

5

WINDSCREEN

94611-14J00

$101.33

6

SCREW (5X18)

09125-05133

$2.27

7

SCREW (5X15)

09125-05134

$2.27

8

SCREW

03541-0516A

$1.41

9

NUT (M5)

09159-05019

$6.63

10

NUT (M5)

09148-05052

$3.13

11

NUT (M5)

09148-05047

$2.10

12

BRACE,COWLING

94511-14J00

$265.48

13

BOLT (8X45)

09103-08207

$2.59

14

NUT

08313-2008A

$2.58

15

CUSHION (8.5X23X9.5)

09320-08518

$2.71
