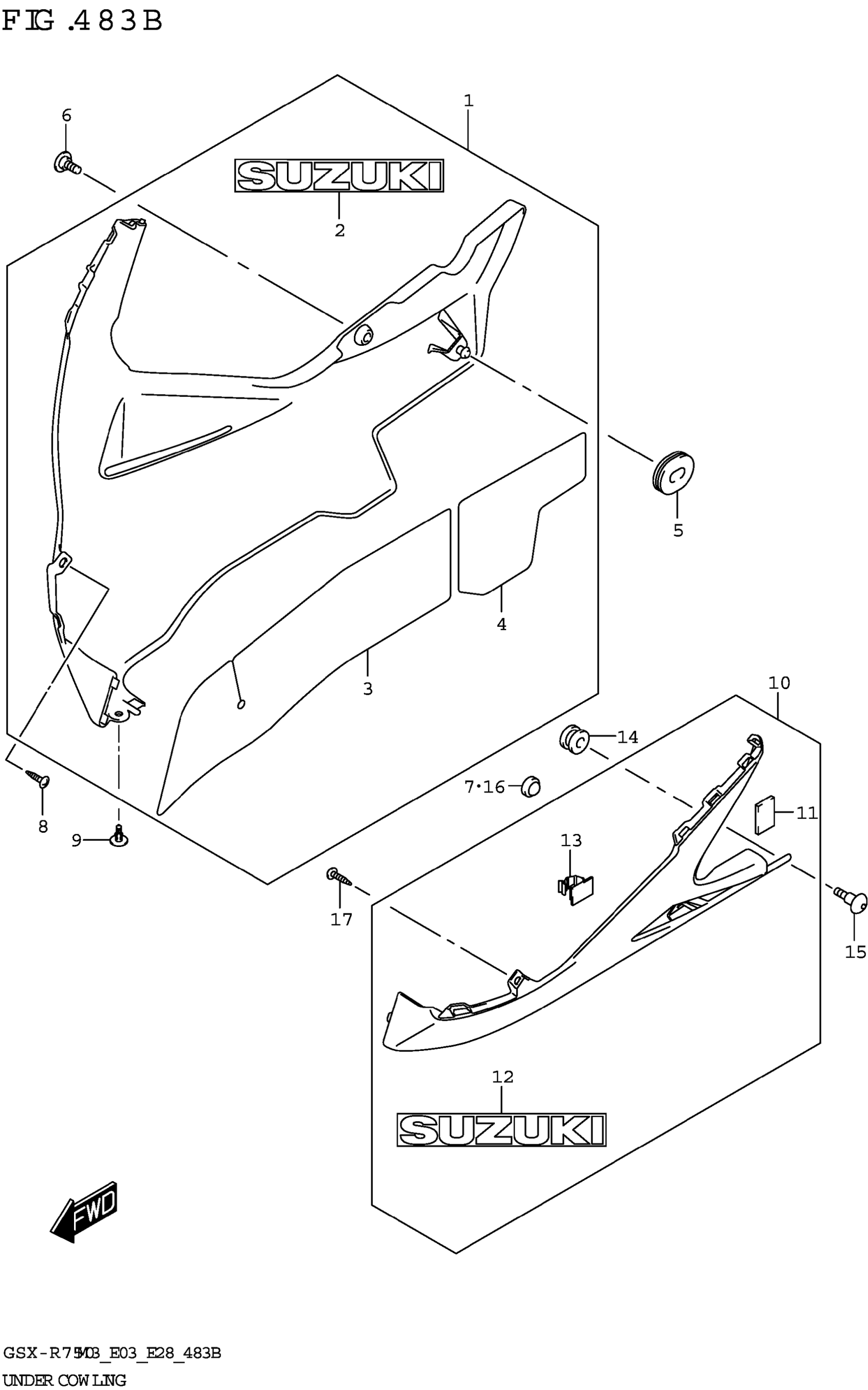

Suzuki GSX-R750M3 (2023) UNDER COWLING (GSX-R750Z) Diagram

Description

Price

COWLING,UNDER RH (BLACK)

94470-14J00-ATX

$315.62

.EMBLEM,SUZUKI (WHITE)

68181-33C20-YWW

$32.42

.SHIELD,UNDER COWL HEAT,R

94479-14J00

$18.62

.SHIELD,UNDER COWL HEAT,R

94479-14J10

$17.20

CUSHION

94478-14J00

$5.42

SCREW,UNDER COWL,R (5X13)

94476-14J00

$4.11

CUSHION

09321-10018

$4.19

SCREW

03541-0512A

$1.37

CLIP

94479-35F00

$5.14

COWLING,UNDER,L (BLACK)

94480-14J01-ATX

$301.70

.CUSHION,BRACKET NO.1

47161-10FA1

$5.43

.EMBLEM,SUZUKI (WHITE)

68181-33C20-YWW

$32.42

.CLAMP

09403-14311

$4.88

CUSHION (9X18X9.5)

09320-09016

$1.97

SCREW (6X20)

09139-06190

$3.77

CUSHION

09321-10018

$4.19

SCREW

03541-0512A

$1.37
