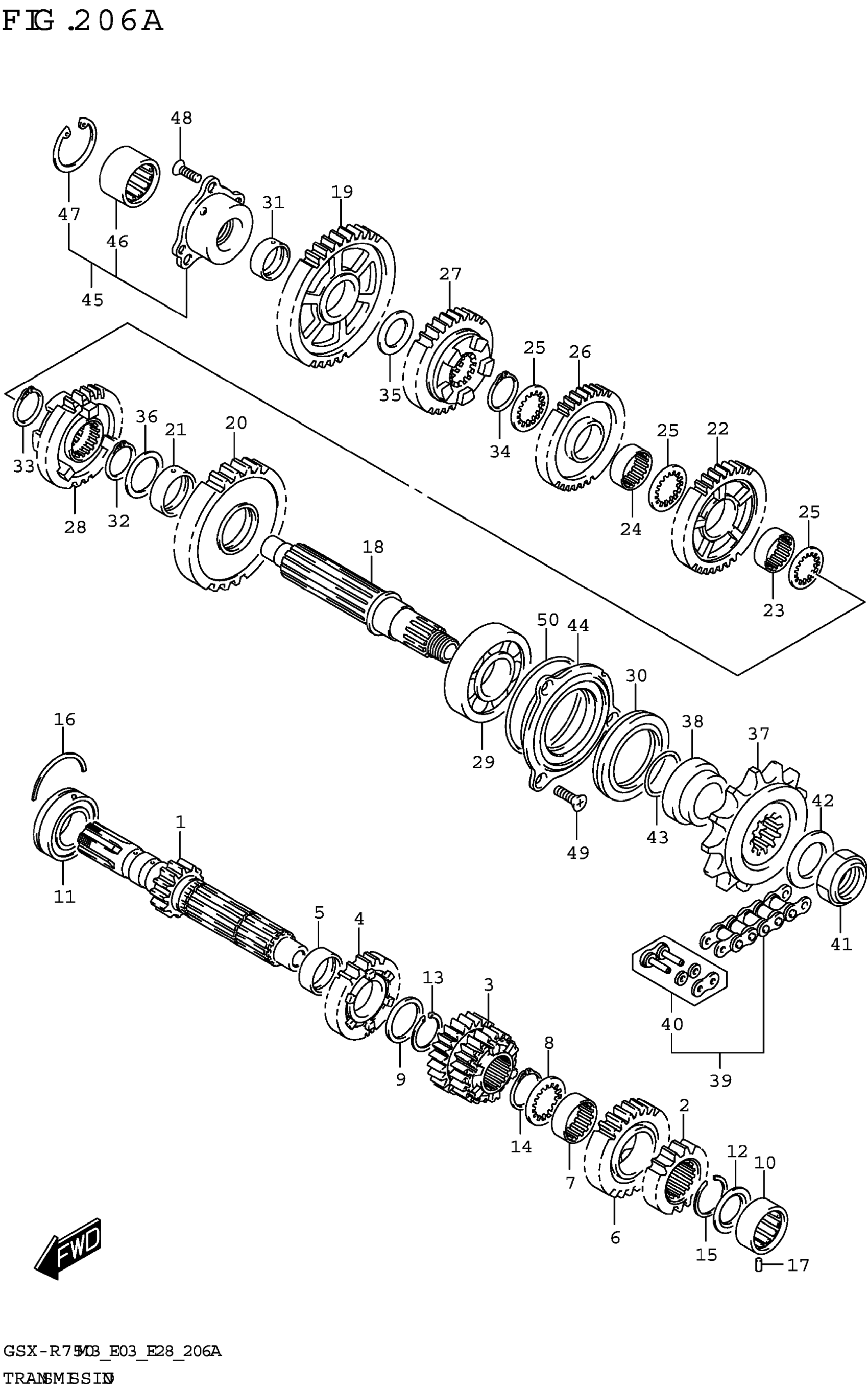

Suzuki GSX-R750M3 (2023) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR (NT:14)

24120-15J00

$367.67

2

GEAR,2ND DRIVE (NT:19)

24221-35F00

$131.95

3

GEAR,3RD & 4TH DRIVE (NT:21/2 | )

24231-01H00

$129.58

4

GEAR,5TH DRIVE (NT:23)

24251-01H00

$189.32

5

BUSH,5TH DRIVE GEAR

24252-35F00

$27.88

6

GEAR,6TH DRIVEN (NT:24)

24261-01H01

$189.32

7

BUSH,6TH DRIVE GEAR

24262-35F10

$32.40

8

WASHER,LOCK (27X36X1)

09167-27001

$2.56

9

WASHER (27X36X1.0)

09160-27008

$4.00

10

BEARING (20X34X13.5)

09263-20087

$54.53

11

BEARING (25X62X17)

09262-25150

$89.78

12

SEAL,OIL (20X31.2X2.7)

09285-20006

$5.88

13

CIRCLIP

09380-27006

$2.73

14

CIRCLIP

09380-27006

$2.73

15

CIRCLIP

09380-27004

$3.33

16

C-RING

09390-62012

$6.69

17

PIN (6X10)

09261-06003

$1.49

18

SHAFT,DRIVE

24131-14J10

$229.47

19

GEAR,1ST DRIVEN (NT:39)

24311-35F20

$180.58

20

GEAR,2ND DRIVEN (NT:39)

24321-35F11

$152.71

21

BUSH,2ND DRIVEN GEAR

24322-35F00

$23.28

22

GEAR,3RD DRIVEN (NT:36)

24331-40F30

$188.52

23

BUSH,3RD DRIVEN GEAR

24332-46H00

$43.95

24

BUSH,3RD DRIVEN GEAR

24332-46H00

$43.95

25

WASHER,3RD & 4TH DRIVEN

24333-02F00

$6.62

26

GEAR,4TH DRIVEN (NT:36)

24341-40F20

$196.77

27

GEAR,5TH DRIVEN (NT:31)

24351-01H20

$192.08

28

GEAR,6TH DRIVEN (NT:29)

24361-01H00

$196.77

29

BEARING (28X68X18)

09262-28045

$113.28

30

SEAL,OIL (42X62X7)

09283-42018

$32.83

31

BUSH (22X26X9)

09300-22008

$16.03

32

CIRCLIP

09380-27006

$2.73

33

CIRCLIP

09380-27006

$2.73

34

CIRCLIP

09380-27006

$2.73

35

SHIM (22X34X1)

09181-22223

$2.85

36

WASHER (27X36X1.0)

09160-27008

$4.00

37

SPROCKET,ENGINE

27510-20A22

$89.07

38

SPACER,ENGINE SPROCKET

27531-14J00

$46.80

39

CHAIN,DRIVE (RK GB525ROZ5Y) | Y)

27600-33E40-116

$307.17

40

.JOINT SET,DRIVE CHAIN

27620-33E40

$23.82

41

NUT

09159-20004

$14.15

42

WASHER (25X41X3)

09160-25009

$4.84

43

O-RING (D:2.4,ID:23.7)

09280-24010

$5.09

44

RETAINER,DRIVE SHAFT BEARING,

24751-14J00

$134.52

45

HOUSING,DRIVE SHAFT SET

24771-01810

$187.45

46

BEARING (20X34X17.5)

09263-20069

$56.63

47

CIRCLIP

08331-41349

$3.05

48

SCREW (6X20)

09139-06159

$4.45

49

SCREW (6X20)

09139-06159

$4.45

50

O-RING (D:1.8,ID:67.5)

09280-68010

$15.20
