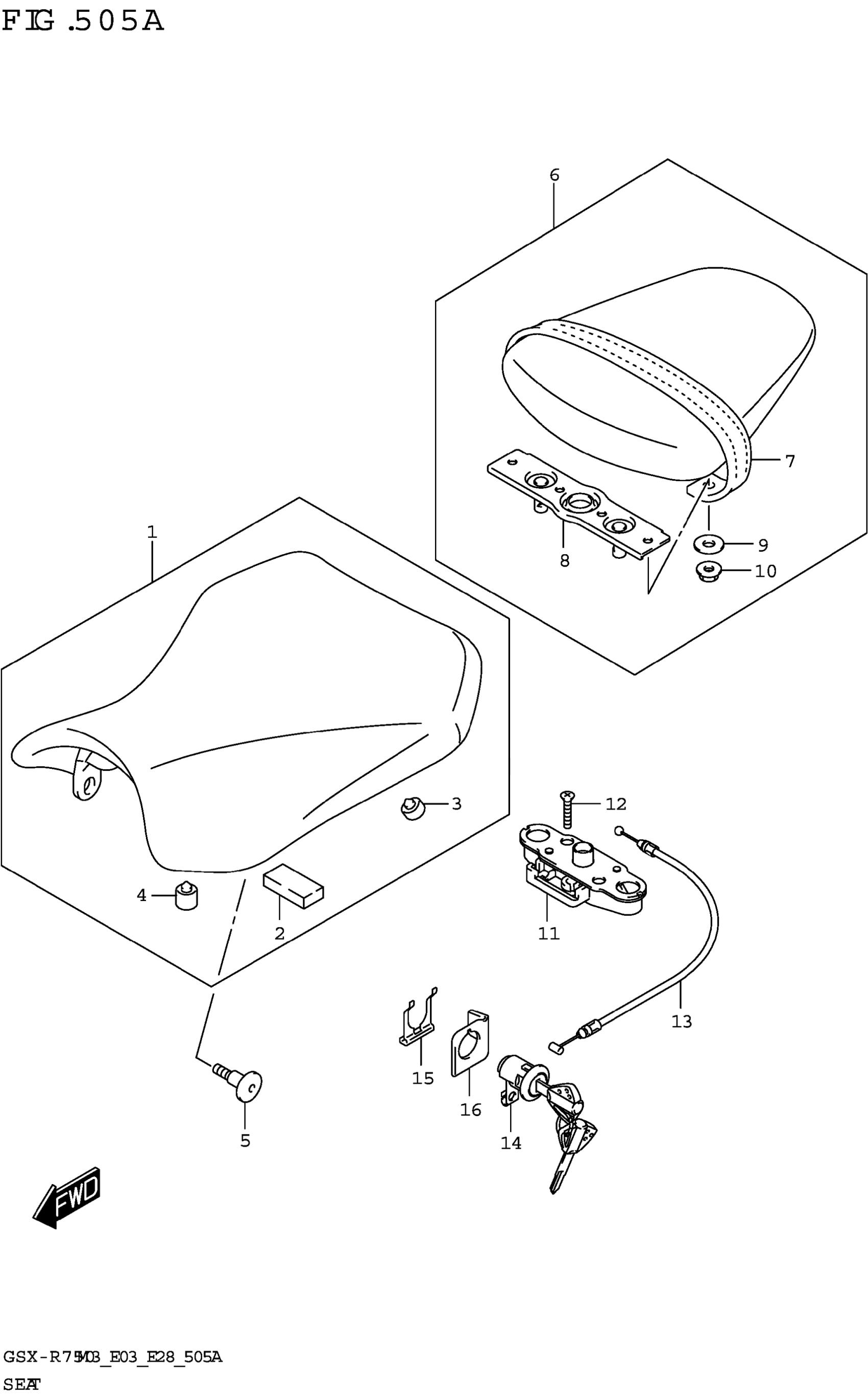

Suzuki GSX-R750M3 (2023) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-14J11-DW2

$256.07

2

.CUSHION

45149-37H00

$7.77

3

.CUSHION

09321-10011

$2.80

4

.CUSHION

09321-10034

$7.57

5

SCREW (6X20)

09139-06193

$3.82

6

SEAT ASSY,PILLION (BLACK)

45300-14J11-P3H

$152.83

7

.BAND ASSY,SEAT (BLACK)

45180-14J11-P3H

$28.88

8

.STRIKER

45290-47H01

$44.02

9

.WASHER (6.5X20X1.6)

09160-06088

$1.67

10

NUT (6X12)

08316-1006A

$2.19

11

BRACKET,SEAT SUPPORT

45220-47H00

$155.43

12

SCREW

02122-0630A

$1.76

13

CABLE,SEAT LOCK

45280-14J00

$27.55

14

LOCK SET,SEAT

95700-14810

$98.21

15

PLATE,SEAT LOCK ASSY

45289-11F00

$5.67

16

GUIDE,SEAT LOCK CABLE

45288-14F00

$4.91
