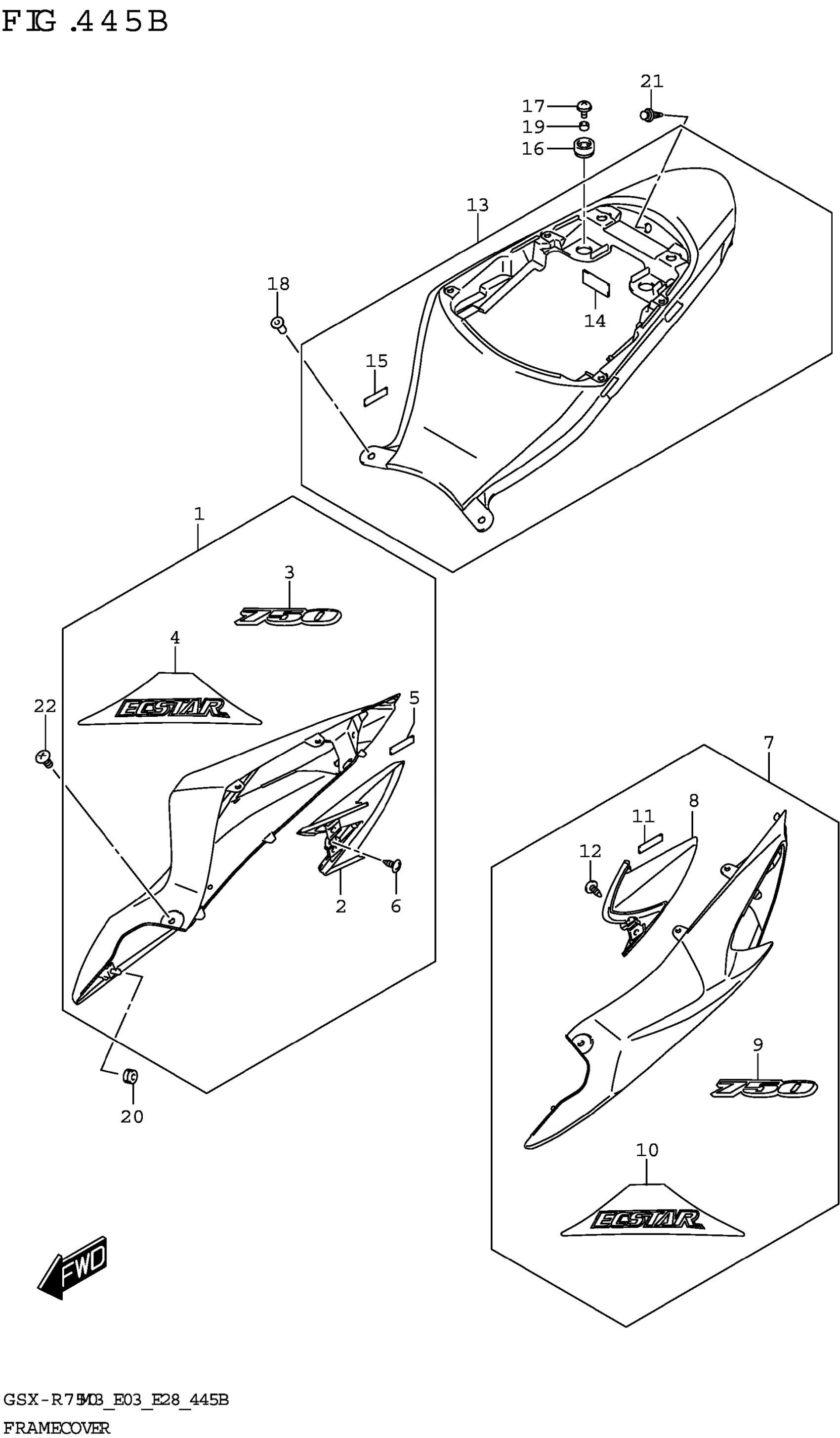

Suzuki GSX-R750M3 (2023) FRAME COVER (GSX-R750Z) Diagram

#

Description
Price

1

COVER ASSY,FRAME,R (SILVER)

47100-15J70-YMD

$114.18

2

COVER,FRAME RR,R

47611-14J00

$17.89

3

.EMBLEM,"750" (ORANGE,BLACK)

68131-15J00-JWH

$17.22

4

.TAPE,FRAME COVER,R

68135-14J80-CNH

$19.73

5

TAPE (6X25X0.13)

94443-06G00

$3.11

6

SCREW

03541-0512A

$1.41

7

COVER ASSY,FRAME,L (SILVER)

47200-15J70-YMD

$114.18

8

COVER,FRAME RR,L

47621-14J00

$17.97

9

.EMBLEM,"750" (ORANGE,BLACK)

68131-15J00-JWH

$17.22

10

.TAPE,FRAME COVER,L

68145-14J80-CNH

$19.73

11

TAPE (6X25X0.13)

94443-06G00

$3.11

12

SCREW

03541-0512A

$1.41

13

COVER ASSY,FRAME CTR

47300-14J10

$92.21

14

CUSHION (10X24X1)

48128-14FA0

$7.30

15

TAPE (6X25X0.13)

94443-06G00

$3.11

16

CUSHION (10X24X13)

47312-37H10

$2.80

17

SCREW (6X16)

09136-06056

$2.17

18

NUT (M5)

09159-05019

$6.63

19

SPACER (6.5X10X7)

09180-06283

$1.97

20

CUSHION (6X18X6)

09320-06504

$4.61

21

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

22

SCREW

02142-1520B

$2.40
