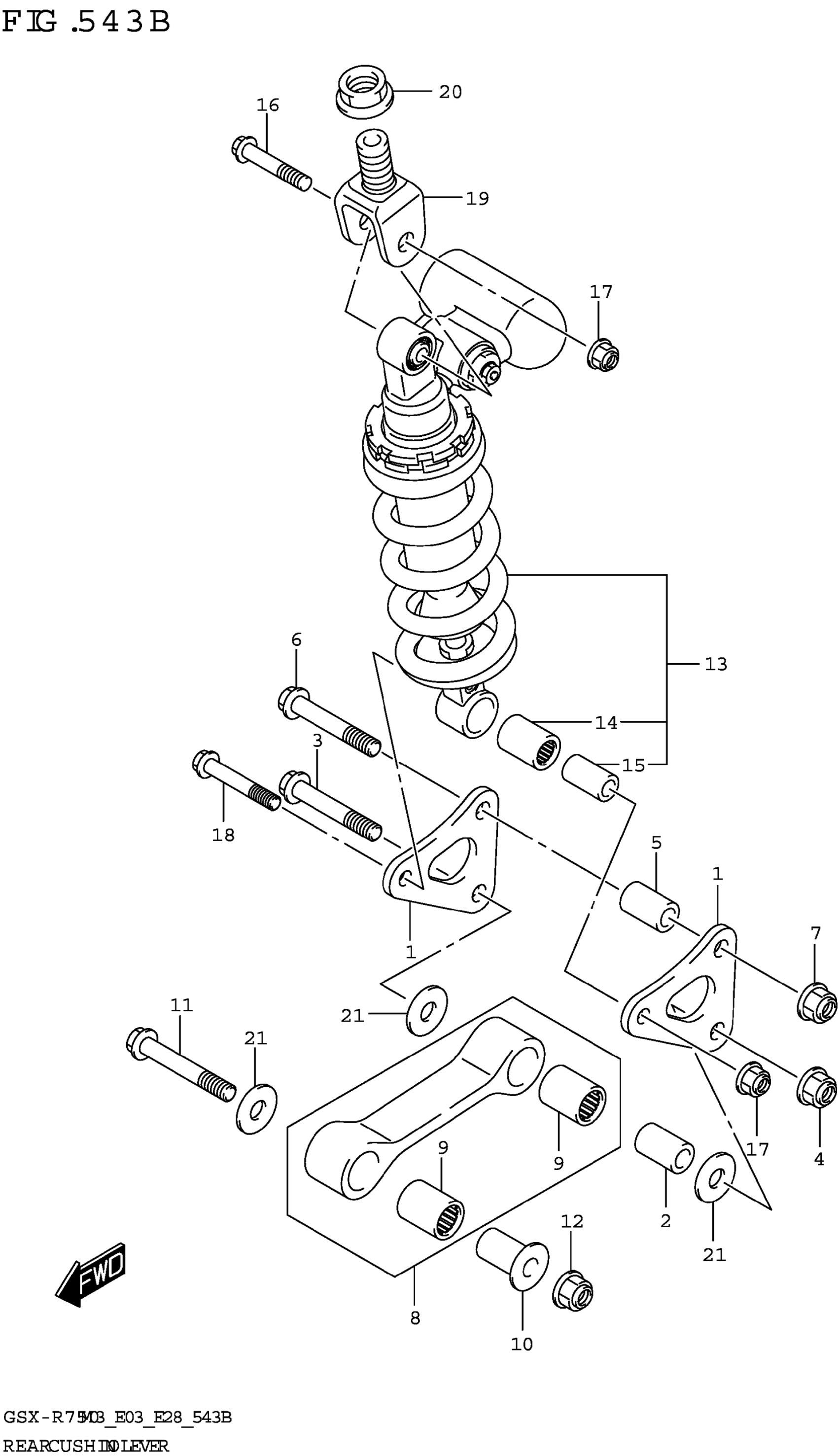

Suzuki GSX-R750M3 (2023) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER,RR CUSHION

62611-14J00

$35.35

2

SPACER,RR CUSHION LEVER FR (1 | X20X34)

62317-27C10

$15.78

3

BOLT,RR CUSHION LEVER

62658-47H00

$12.13

4

NUT

09159-12056

$6.65

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$23.73

6

BOLT,RR CUSHION LEVER

62658-47H00

$12.13

7

NUT

09159-12056

$6.65

8

ROD,RR CUSHION

62602-14861

$143.10

9

.BEARING

09263-20116

$28.11

10

SPACER,RR CUSHION ROD FR

62647-47H00

$39.83

11

BOLT,RR CUSHION ROD

62621-47H00

$16.10

12

NUT

09159-12056

$6.65

13

ABSORBER SET,REAR SHOCK (BLAC | )

62100-15871-019

$1,229.48

14

BEARING (17X24X32)

09263-17046

$45.05

15

SPACER,RR SHOCK ABS LWR

62317-47H00

$23.08

16

BOLT (10X55)

09103-10143

$4.92

17

NUT (M10)

09159-10115

$3.21

18

BOLT,RR SHOCK ABSORBER LWR (1 | X55)

62313-47H00

$13.50

19

BRACKET,RR SHOCK ABSORBER UPR

62993-47H00

$152.77

20

NUT,RR SHOCK ABS BRACKET

62994-47H00

$39.56

21

WASHER (12X34X1.0)

09160-12037

$3.52
