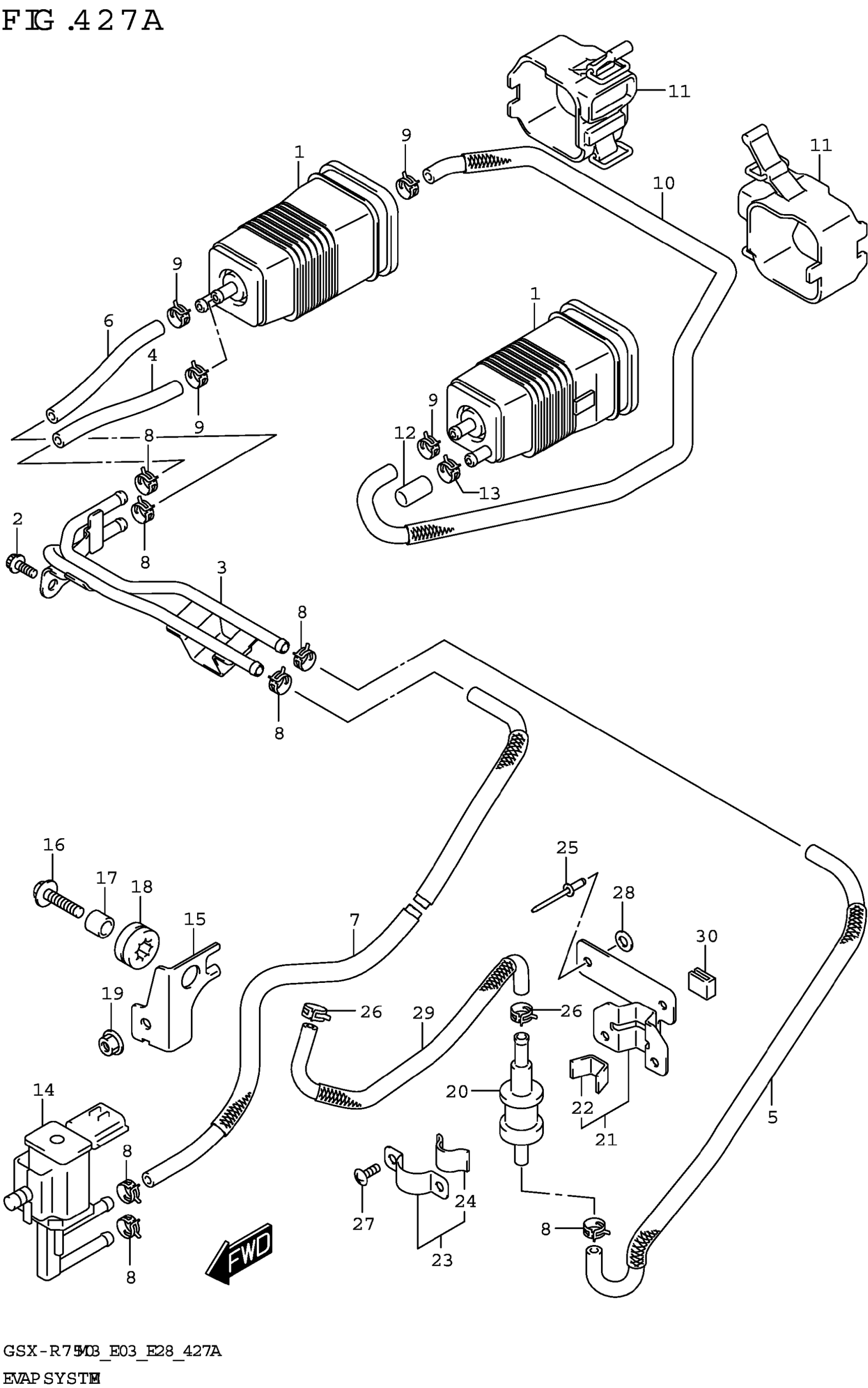

Find the part on the Evap System diagram for your 2023 Suzuki GSX-R750M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki GSX-R750M3 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CANISTER ASSY,CHARCOAL

18560-14J00

2
Out of stock

2

BOLT

07120-0612A

2
Out of stock

3

PIPE,EVAP

18340-14J00

1
Out of stock

4

HOSE,SURGE NO.1

18561-14J00

1
Out of stock

5

HOSE,SURGE NO.2

18562-14J00

1
Out of stock

6

HOSE,PURGE NO.1

18563-14J00

1
Out of stock

7

HOSE,PURGE NO.2

18564-14J00

1
Out of stock

8

CLIP (ID:10.5,H:8)

09401-10409

7
Out of stock

9

CLIP (ID:12)

09401-12404

4
Out of stock

10

HOSE,CANISTER JOINT

18565-14J00

1
Out of stock

11

CUSHION,CANISTER

18572-14J00

2
Out of stock

12

CAP (OD:11.5)

09251-07003

1
Out of stock

13

CLIP (ID:11,H:8)

09401-11413

1
Out of stock

14

VALVE ASSY,DUTY FOR PURGE

18117-52G00

1
Out of stock

15

BRACKET,PURGE VALVE

18571-14J00

1
Out of stock

16

BOLT (6X30)

09116-06203

1
Out of stock

17

SPACER (6.5X10X11.6)

09180-06319

1
Out of stock

18

CUSHION

09320-10055

1
Out of stock

19

NUT (6X12)

08316-1006A

1
Out of stock

20

VALVE,FUEL TANK BREATHER

44240-38A00

1
Out of stock

21

PLATE,BRTHR VALVE

44890-47H00

1
Out of stock

22

CUSHION (10X30X2)

44894-24A00

1
Out of stock

23

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

24

CUSHION (10X30X2)

44894-24A00

1
Out of stock

25

RIVET

09229-04017

2
Out of stock

26

CLIP (ID:11,H:8)

09401-11413

2
Out of stock

27

SCREW

02142-0408A

2
Out of stock

28

WASHER

08322-0104A

2
Out of stock

29

HOSE,TANK & BRTHR VALVE

44434-37H10

—
Out of stock

30

CUSHION (10X30X2)

44894-24A00

1
Out of stock
