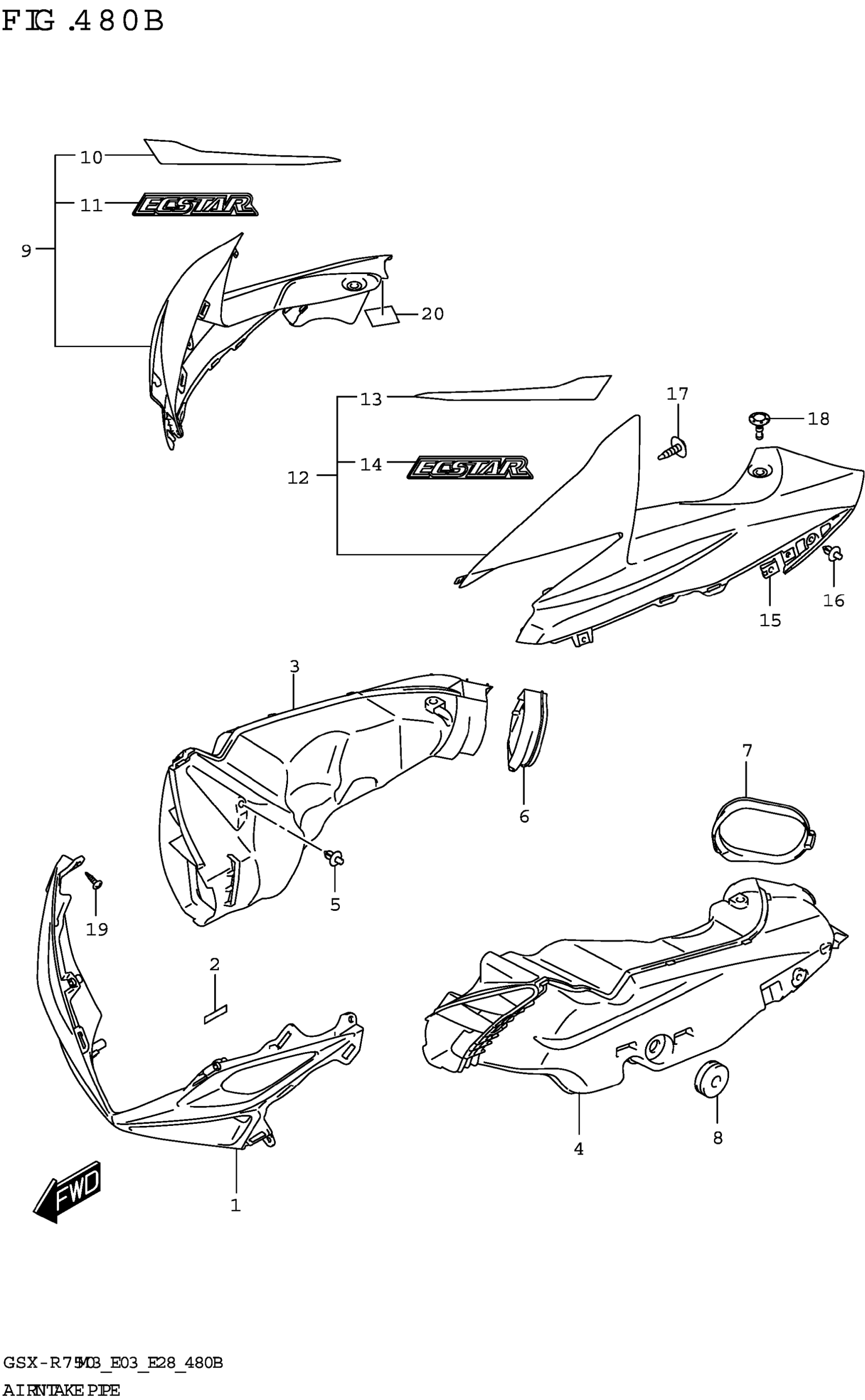

Suzuki GSX-R750M3 (2023) AIR INTAKE PIPE (GSX-R750Z) Diagram

#

Description
Price

1

COVER, INTAKE FRONT (BLUE)

94671-14J10-YSF

$257.26

2

TAPE (6X25X0.13)

94443-06G00

$2.97

3

PIPE,AIR INTAKE,R

94420-14J10

$78.76

4

PIPE,AIR INTAKE,L

94430-14J10

$76.18

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

6

MOLDING,AIR INTAKE,R

94423-14J00

$13.13

7

MOLDING,AIR INTAKE,L

94433-14J00

$13.13

8

CUSHION (8X26X7)

09320-08028

$2.80

9

COVER,INTAKE,R (BLUE)

94670-14J70-YSF

$162.80

10

.TAPE,INTAKE COVER,R (BLUE,SI | VER)

68275-14J50-GUL

$21.83

11

.EMBLEM (BLUE,WHITE)

68271-14J10-BRN

$15.10

12

COVER,INTAKE,L (BLUE)

94680-14J70-YSF

$162.80

13

.TAPE,INTAKE COVER,L (BLUE,SI | VER)

68285-14J50-GUL

$30.78

14

.EMBLEM (BLUE,WHITE)

68271-14J10-BRN

$15.10

15

NUT (M5)

09148-05052

$3.04

16

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

17

SCREW (5X12)

09132-05050

$1.89

18

CLIP

94479-35F00

$5.14

19

SCREW

03541-0512A

$1.37

20

PROTECTOR (30X80X1.0) This part replaces 33652-13E00.

33652-29F00

$2.80
