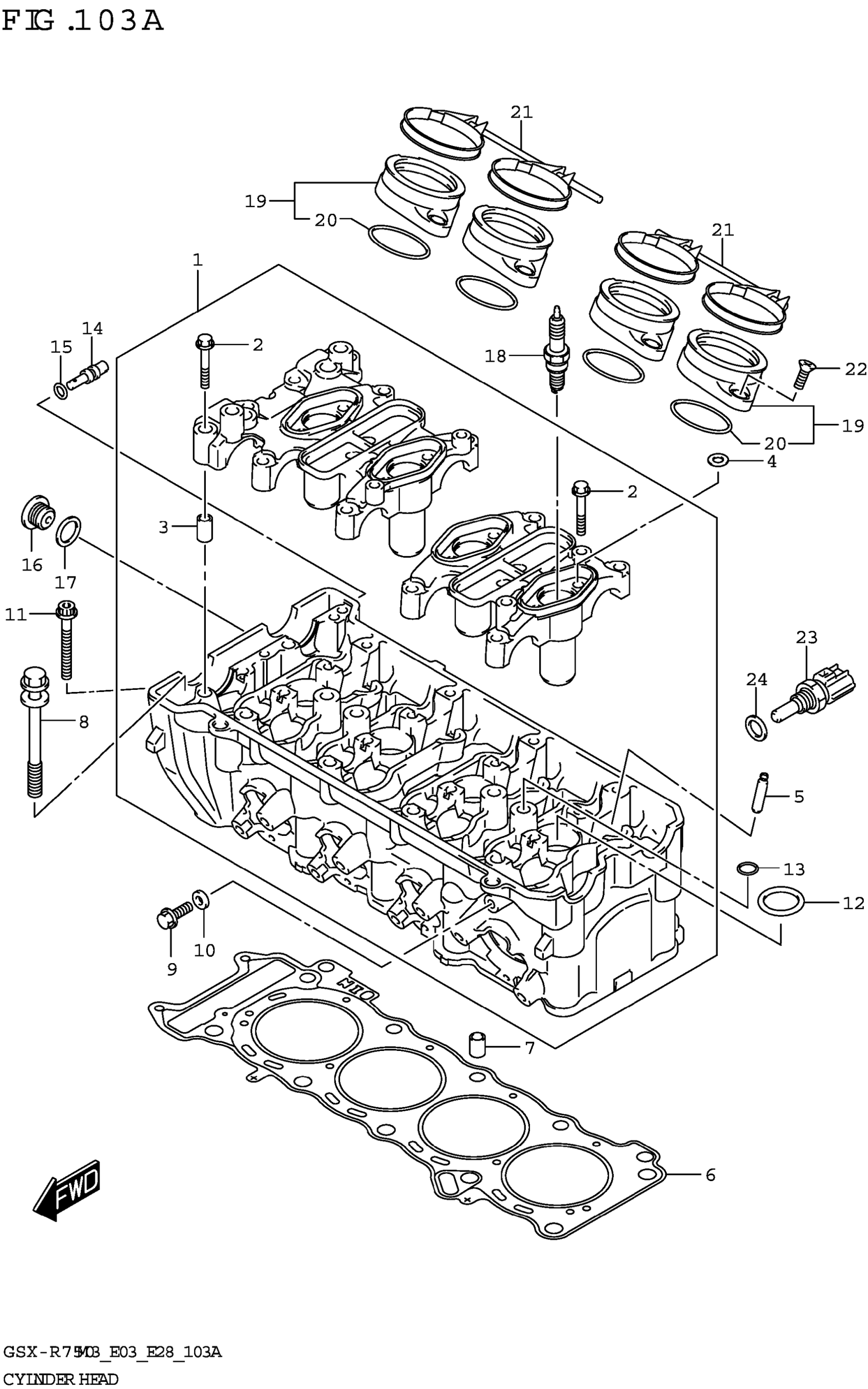

Suzuki GSX-R750M3 (2023) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER

11100-38H00

$2,392.67

2

.BOLT (6X40)

09103-06266

$2.12

3

.PIN (6.2X8X16)

09206-08007

$2.60

4

GASKET (6.2X13X1.2)

09168-06018

$1.77

5

GUIDE,VALVE (OS:0.3) | OPT

11115-29G70

$32.87

6

.GASKET,CYLINDER HEAD

11141-02H00

$77.21

7

PIN

04211-11169

$1.78

8

BOLT,CYLINDER HEAD (10X95)

11117-29G00

$8.93

9

BOLT

01550-0612A

$1.97

10

GASKET (5.8X13X1.2)

09168-06023

$2.35

11

BOLT

07120-0650A

$3.16

12

O-RING

11179-81402

$4.21

13

O-RING (D:2.4,ID:10.8)

09280-11001

$1.98

14

JET (#8)

09493-80005

$16.25

15

O-RING (D:1.2,ID:4)

09280-04004

$1.91

16

PLUG (16X8)

09248-16012

$4.64

17

GASKET (16X22X0.8)

09168-16009

$2.50

18-1

PLUG,SPARK (IU27D)

09482-00557

$16.60

18-2

PLUG,SPARK (CR9EIA-9)

09482-00558

$12.14

18-3

PLUG,SPARK (IU24D) | OPT

09482-00555

$17.96

18-4

PLUG,SPARK (CR8EIA-9) | OPT

09482-00556

$10.85

18-5

PLUG,SPARK (IU31D) | OPT

09482-00559

$20.10

18-6

PLUG,SPARK (CR10EIA-9) | OPT

09482-00560

$10.85

19

PIPE ASSY,INTAKE

13101-15J01

$44.27

20

.O-RING (D:2.4,ID:47X42)

09280-46007

$7.01

21

CLAMP,INTAKE PIPE

13826-02H12

$26.22

22

BOLT (6X20.9)

09120-06007

$3.16

23

SENSOR,TEMP

13650-49X00

$90.19

24

GASKET (12X17X1)

09168-12017

$1.95
